Indel B K40 ECOSMART - WIRING CONNECTIONS AND EARTHING; Power and Signal Socket Connection Diagram

K BASIC - K SMART - K ECOSMART
26
KBASIC-KSMART-KECOSMART_(115V)_IM_20190204

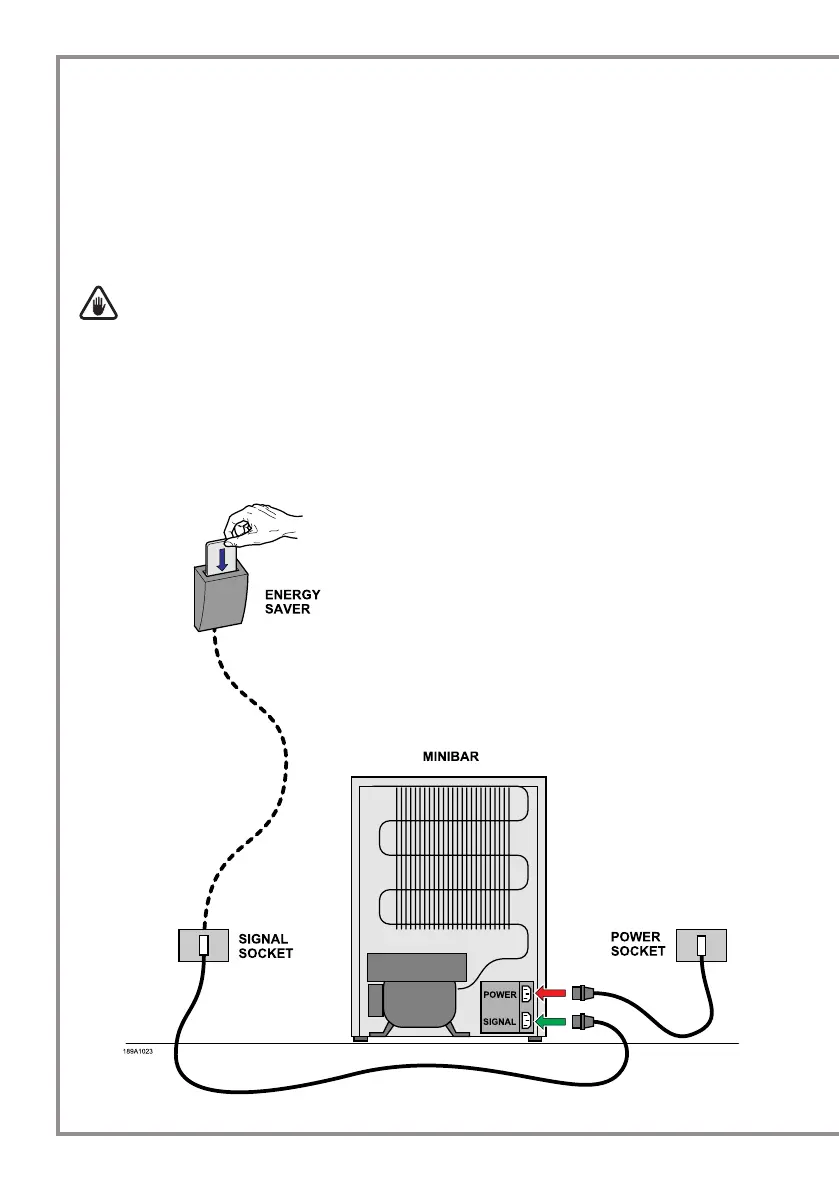

There are two power supply plugs on the back of the Minibar (K SMART - K ECOSMART).
Connect the “POWER” plug to the socket in the room specically for the Minibar (socket not connected to
the energy saving system).
Connect the “SIGNAL” plug to any socket connected to the energy saving system (Energy saver).
NOTE: The K Ecosmart Minibar operates in STANDARD/TIMER mode where the “SIGNAL” plug is not
connected. Standard mode refers to operation not relative to identication of the Guest in the room
and operation which is regulated by the temperature selected by the Client using the switch described
above.
ATTENTION!
If the POWER and SIGNAL cables are connected in reverse, the fridge will operate whilst the guest is in
the room and will switch itself o when the guest leaves the room.
To conrm that the connection is correct, check that the light illuminates when opening the Minibar door
subsequent to checking that:
1) the energy saving system (Energy saver) is not functioning and that the smart card has not been
inserted
2) the Minibar is on (the temperature switch at the front of the Minibar must not be in position “0”).
In the instance that the light does not illuminate, invert the connection of the two power cables.
