APPLYING THE DRAFT

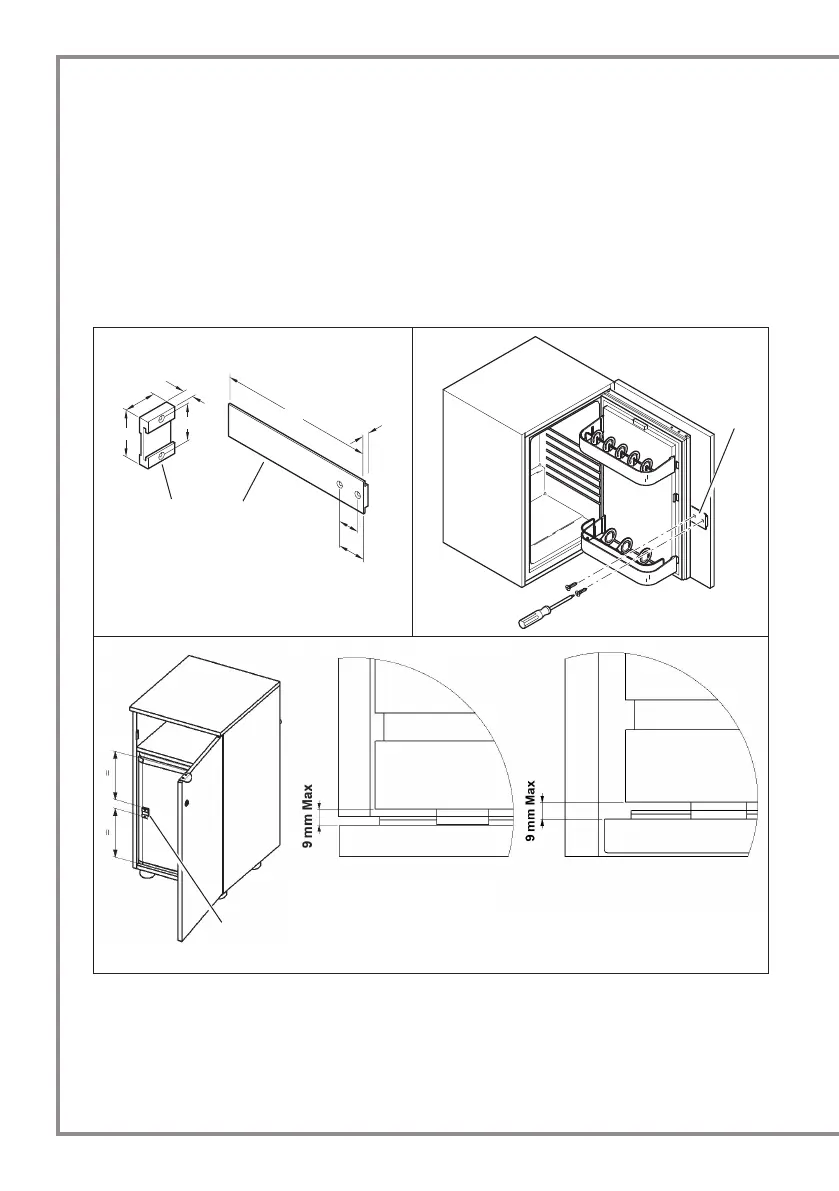

The draft is a device - consisting of two parts, A and B - which connects the door of the Minibar to the
door of the piece of furniture it is tted into, both when opening and when closing.
To install the draft, proceed as follows:
- screw the part A on to the door of the Minibar;
- open the door of the Minibar by 90°;
- screw the part B, perfectly horizontal, to the inside of the leaf of the piece of furniture, and t it into the
part A so it can work as a sliding guide.
30
9
20
150
5
27,5
45
45
189A0032
A
B
189A0482
B
A
Warning!
To ensure a correct closing of the Minibar door, make sure that
the distance between the inner part of the unit door and the
outside part of the refrigerator door does not exceed 9 mm.
