Indesit KD3G2 - Burner and Nozzle Specifications

GB
7

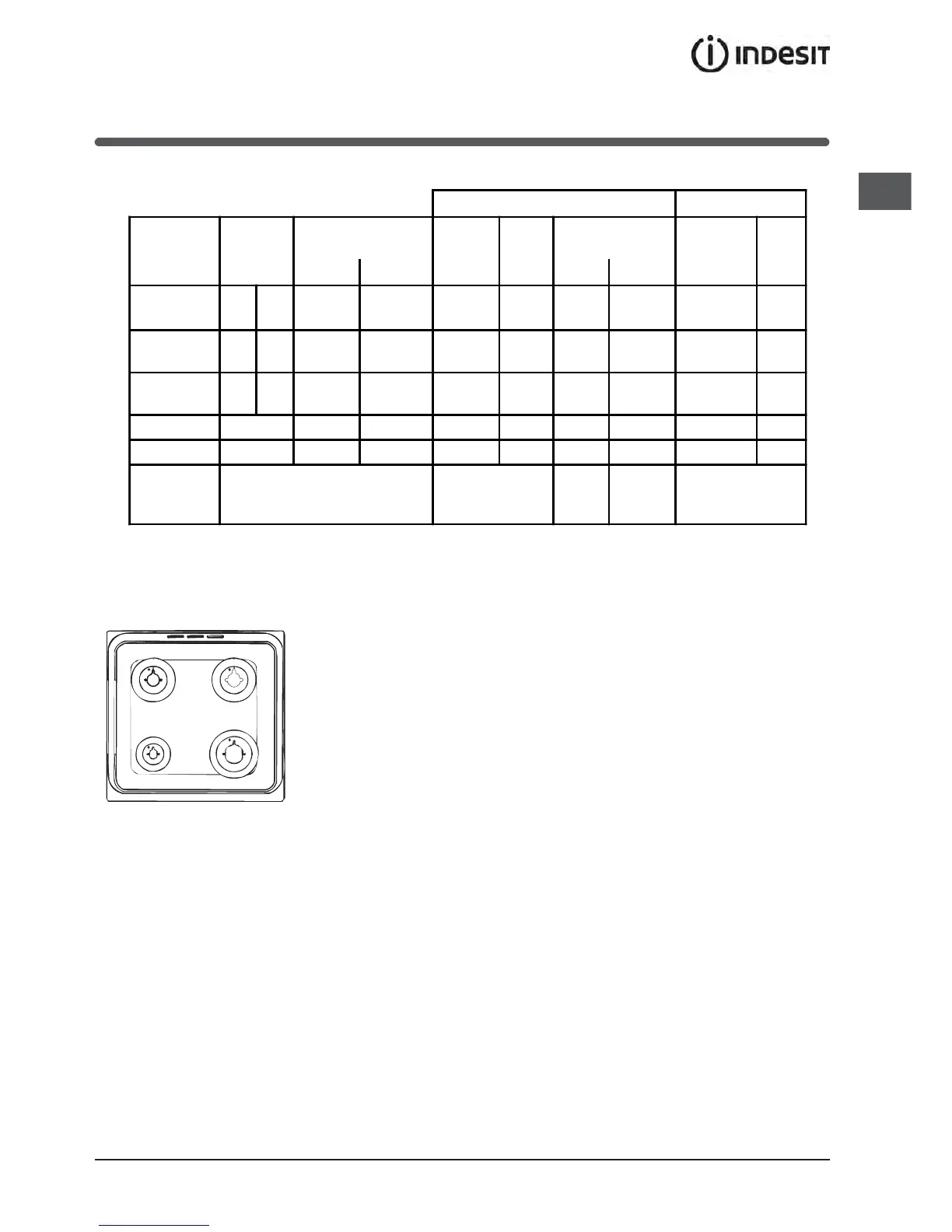

Burner and Nozzle Specifications
Liquid Gas Natural Gas
Burner Diameter Thermal Power
kW (p.c.s.*)
By-Pass
1/100
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Flow*
l/h
(mm) Nominal Reduced (mm) (mm) *** ** (mm)
Fast
(Large)(R)
100 94 3,00 0,7 41 87 218 214 128 286
Semi Fast
(Medium)(S)
75 69 1,90 0,4 30 70 138 136 104 181
Auxiliary
(Small)(A)
51 46 1,00 0,4 30 52 73 71 76 95
Oven - 2,60 0,6 36 71 189 186 115 248
Grill - 2,50 1,3 63 80 182 179 122 238
Supply
Pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
* At 15°C and 1013 mbar- dry gas
** Propane P.C.S. = 50,37 MJ/Kg
*** Butane P.C.S. = 49,47 MJ/Kg
Natural P.C.S. = 37,78 MJ/m
3
S
S
R
A
KD3G2/G
KD3G2S/IR
KD3G2SL/IR
KD3G21/G
KD3G21S/IR
KD3G21SL/IR
