Industrial Micro Systems 464 - Standard Board Configuration

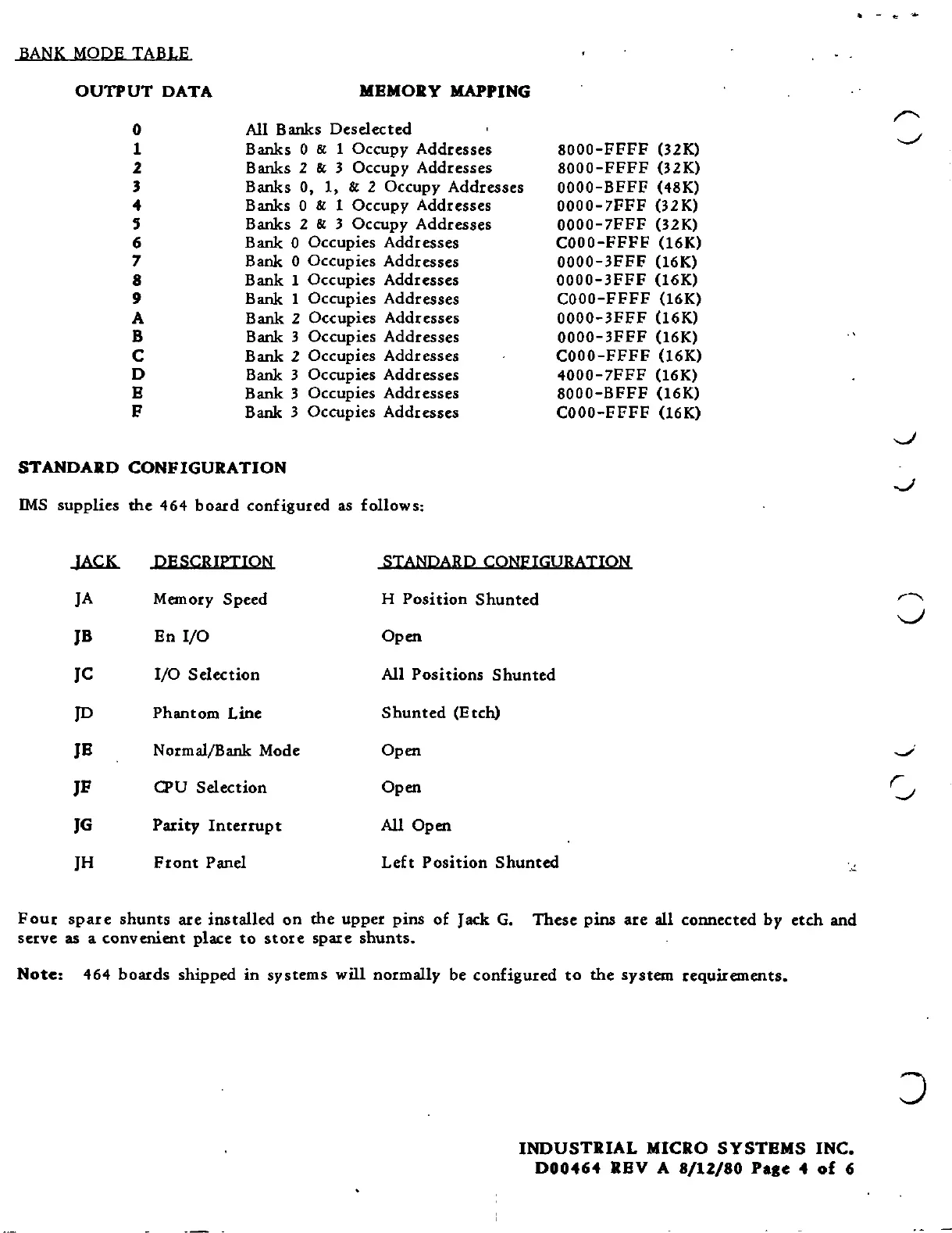

BANK MODE TABLE
OUTPUT DATA
o
1
2
3
4
5
6
7
8
9
A
B
C
D
B
F
MEMORY MAPPING
All Banks Deselected
Banks 0 & 1 Occupy Addresses
Banks 2 & 3 Occupy Addresses
Banks 0, 1, & 2 Occupy Addresses
Banks 0 & 1 Occupy Addresses
Banks 2 & 3 Occupy Addresses
Bank 0 Occupies Addresses
Bank 0 Occupies Addresses
Bank 1 Occupies Addresses
Bank 1 Occupies Addresses
Bank 2 Occupies Addresses
Bank 3 Occupies
Addresses
Bank 2 Occupies Addresses
Bank 3 Occupies Addresses
Bank 3 Occupies Addresses
Bank 3 Occupies Addresses
8000-FFFF (32K)
8000-FFFF (32K)
OOOO-BFFF (48K)
0000-7FFF (32K)
0000-7FFF (32K)
COOO-FFFF (16K)
0000-3FFF (l6K)
0000-3FFF (l6K)
COOO-FFFF (16K)
0000-3FFF (l6K)
0000-3FFF (l6K)
COOO-FFFF (16K)
4000-7FFF (l6K)
8000-BFFF (l6K)
COOO-FFFF (l6K)
. -
J
STANDARD CONFIGURATION
IMS supplies the 464 board configured as follows:
JACK
DESCRIPTION STANDARD CONFIGURATION
JA
Memory
Speed H Position Shunted
JB
En I/O
Open
JC
I/O Selection All Positions Shunted
JD
Phantom Line
Shunted (E tch)
JB
Normal/Bank Mode
Open
JF
CPU Selection Open
JG
Parity Interrupt All Open
JH
Front Panel Left Position Shunted
.,
Four spare shunts are installed on the upper pins of Jack G. These pins are all connected by etch and
serve as a convenient place to store spare shunts.
Note: 464 boards shipped in systems will normally be configured to the system requirements.
INDUSTRIAL MICRO SYSTEMS INC.
000464 REV A 8/12/80 Page 4 of 6
