4.5.4 Setting-up / editing an I•Guide Program
When selecting the SETUP PROGRAM button a submenu page will open showing the
list of 10 pre-programmable I•Guide programs and their current status (enabled /
disabled).
If a program is enabled it will be offered in the list of programs to select from when
operating in the I•Guide mode. To change the status of a program use the
ENABLE /
DISABLE button on the left side of the display.
I•Guide cycle counter
The reset counter button on the right side of the display allows to reset the I•Guide
cycle counter manually. The I•Guide cycle counter is not saved on power off and
therefore is also automatically reset on each power on / off of the Ecotec E3000.
Button
The button function allows to disable the use of the right sniffer probe button which
is used for navigating through an I•Guide program cycle. The disabling of the right
sniffer probe button is mainly needed for robotic application (where the navigation is
controlled via RS232 instead of the sniffer probe button).
Editing an I•Guide program

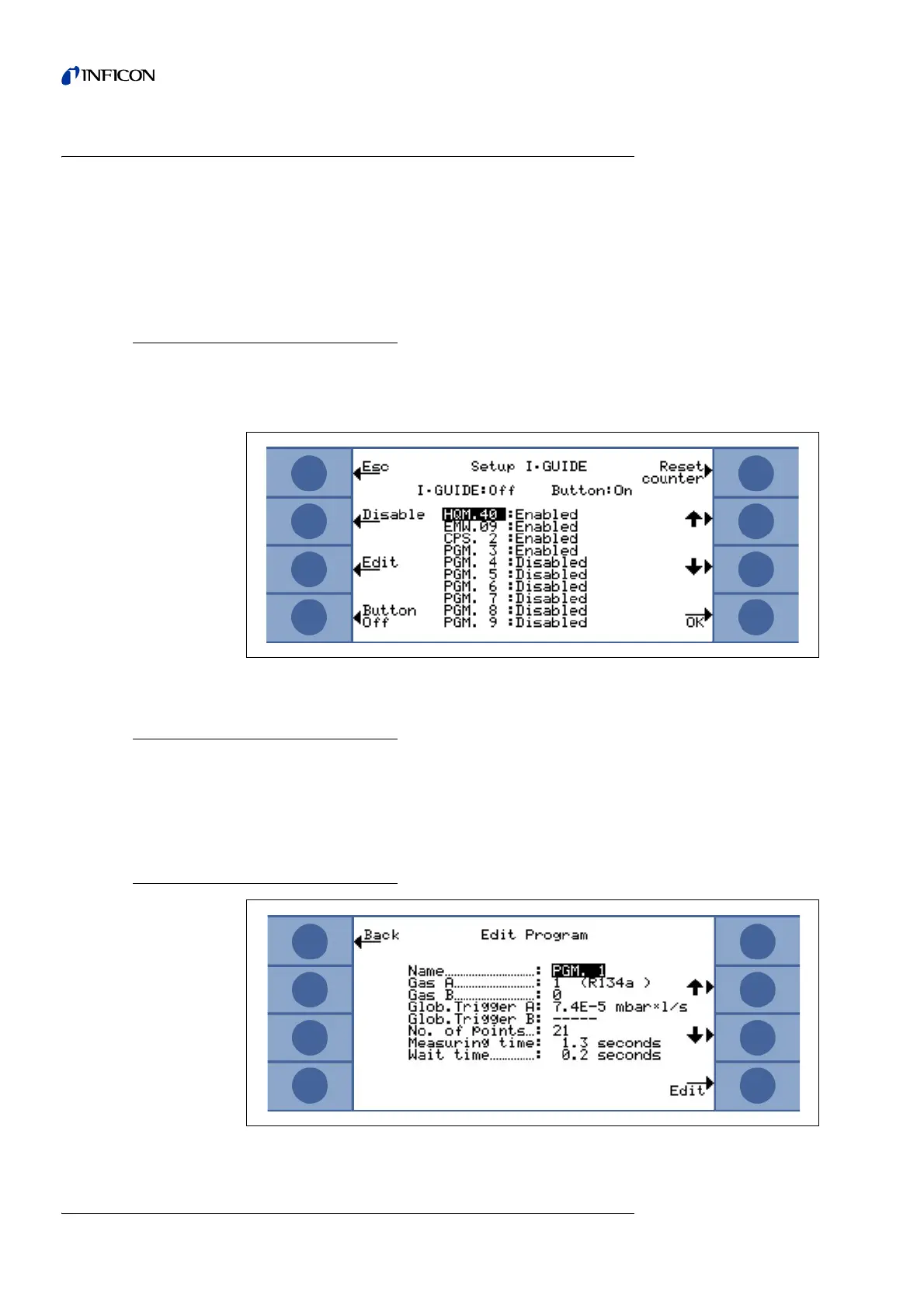

Fig. 4-18 Setting-up the I•Guide Mode
Fig. 4-19 Editing an I•Guide program (one gas selected)
