Installation – Door attachment

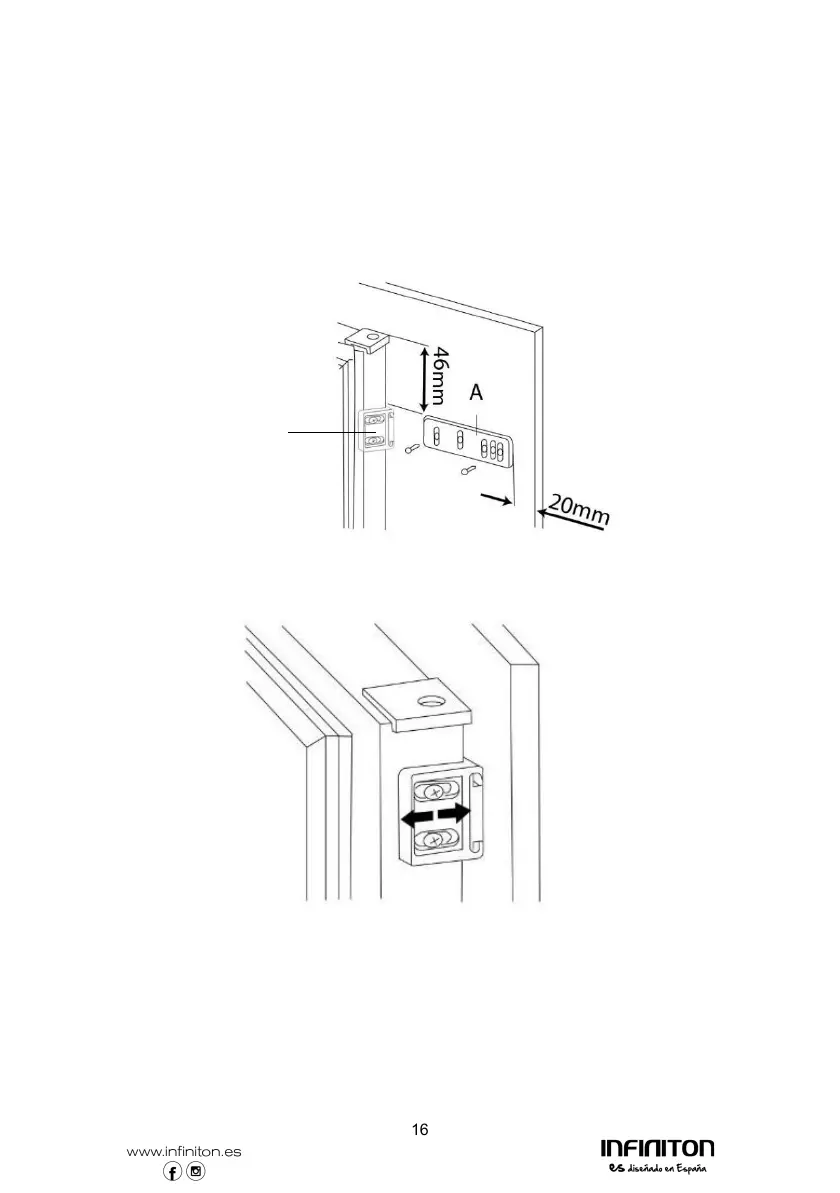

4. Open the appliance door and the cabinet door to 90°, remove the 2 screws from
the door guide holder that is already prefixed to the door and place it on to the
door guide (part A). Push the appliance door and the cabinet door together, align
the holes on the door guide holder and the holes on the edge of the door and fix
into place with the 2 screws that were removed previously.
Door guide
holder
5. If any adjustment that is needed then use the clearance space in the screw slots
of the door guide holder on to the door guide (part A).
6. Check that the cabinet door closes correctly.
