[ Edit: 2016/ 6/ 21 Model: 2017MY INFINITI Q50(V37) OM17E00V37U0 ]
JVC0646X

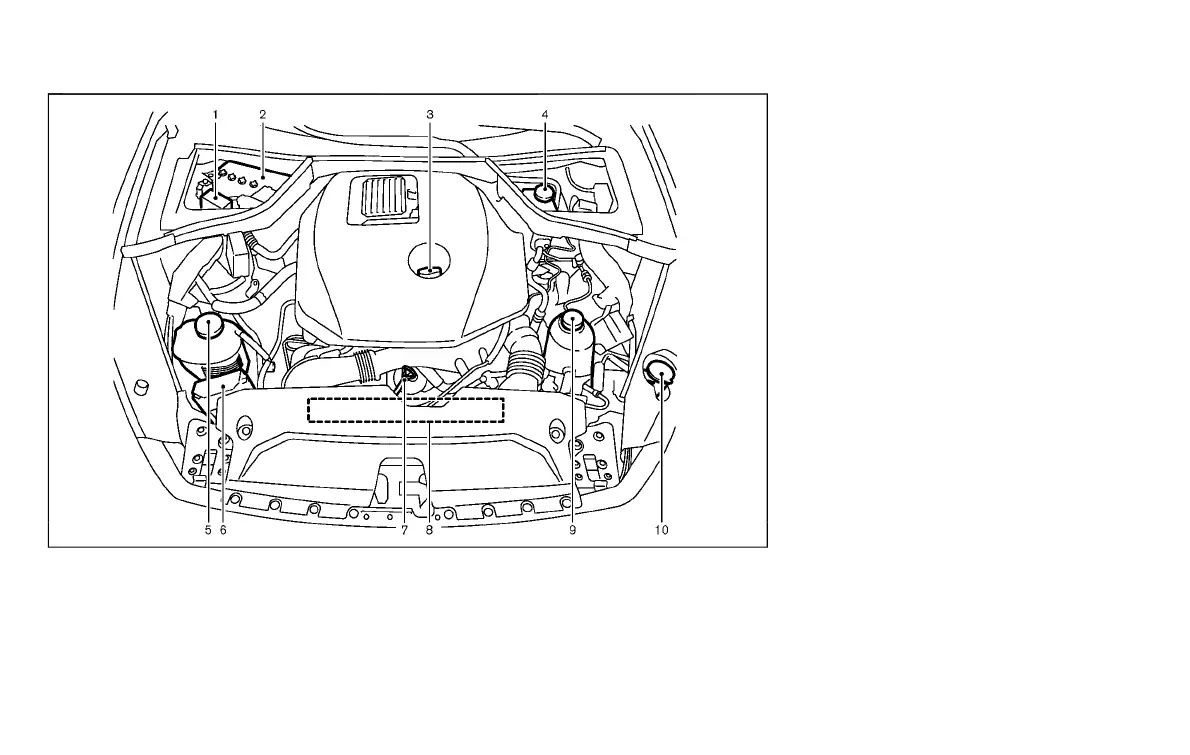

2.0L TURBO GASOLINE ENGINE
GUID-83983D0E-38BF-47BB-9454-101673ACE468
1. Fuse and fusible link holder (P.8-24)
2. Main battery* (P.8-17)
3. Engine oil filler cap (P.8-11)
4. Brake fluid reservoir (P.8-15)
5. Engine coolant reservoir (P.8-8)
6. Fuse and fusible link holder (P.8-24)
7. Engine oil dipstick (P.8-11)
8. Engine drive belt location (P.8-20)
9. Power steering fluid reservoir (if so
equipped) (P.5-128)
10. Window washer fluid reservoir
(P.8-16)
*: The auxiliary battery is located in the
trunk. (See “Auxiliary battery location
(for 2.0L turbo gasoline engine mod-
els)” (P.8-18).)
Illustrated table of contents 0-11
