[ Edit: 2016/ 6/ 21 Model: 2017MY INFINITI Q50(V37) OM17E00V37U0 ]
JVS0226X

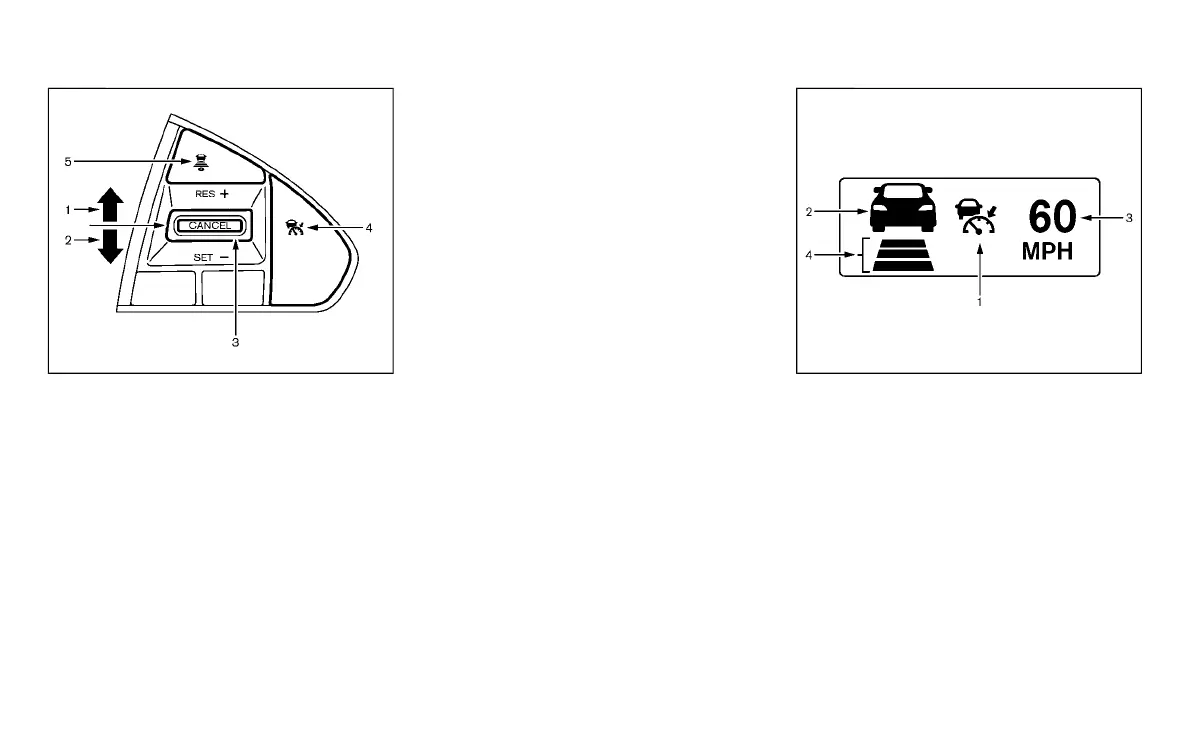

Vehicle-to-vehicle distance control
mode switches
V37-D-121025-3C61E979-EEE0-480F-8EF4-A69230D7B716
The system is operated by a MAIN switch
and four control switches, all mounted on
the steering wheel.
1. RESUME/ACCELERATE (+) switch:
Resumes set speed or increases speed
incrementally.
2. SET/COAST (-) switch:
Sets desired cruise speed, reduces
speed incrementally.
3. CANCEL switch:
Deactivates the system without erasing
the set speed.
4. MAIN switch:
Master switch to activate the system
5. DISTANCE switch:
Changes the vehicle’s following dis-
tance:
.
Long
.
Middle
.
Short
JVS0220X
Vehicle-to-vehicle distance control
mode display and indicators
V37-D-121025-3D4E4E23-512E-40D3-9C13-5A43F40028C3
The display is located between the speed-
ometer and tachometer.
1. This indicator indicates the ICC system
status depending on a color.
.
Intelligent Cruise Control system ON
indicator (white):
Indicates that the MAIN switch is ON.
.
Intelligent Cruise Control system set
indicator (green):
Indicates that cruising speed is set
.
Intelligent Cruise Control system
warning (orange):
Starting and driving 5-81
Condition:
