[ Edit: 2016/ 6/ 21 Model: 2017MY INFINITI Q50(V37) OM17E00V37U0 ]
1-10 Safety — Seats, seat belts and supplemental restraint system
SSS1038
INSTALL
V37-D-121025-E4047B01-BDED-4C45-A533-A49F85962AC9

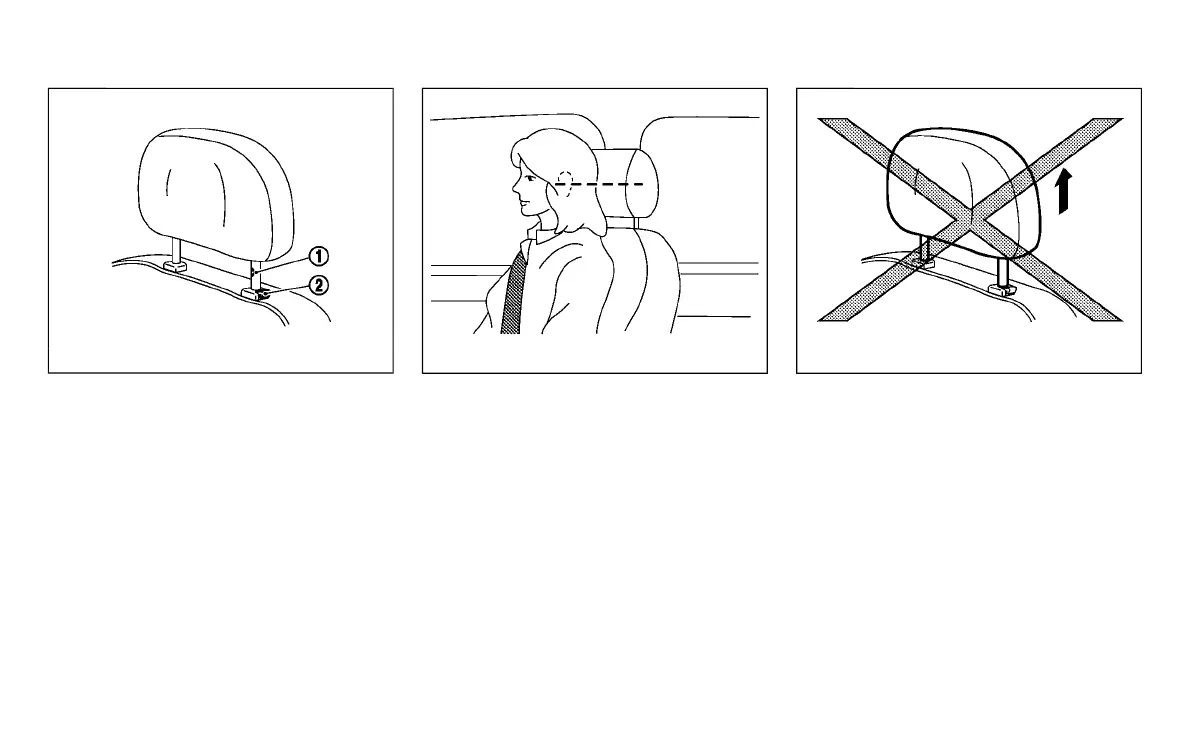

1. Align the head restraint/headrest
stalks with the holes in the seat. Make
sure that the head restraint/headrest is
facing the correct direction. The stalk
with the adjustment notch
*
1
must be
installed in the hole with the lock knob
*
2
.
2. Push and hold the lock knob and push
the head restraint/headrest down.
3. Properly adjust the head restraint/
headrest before an occupant uses the
seating position.
SSS0997
ADJUST
V37-D-121025-15FAC2F7-19E9-42D2-BBB8-27C642986FBC
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
JVR0259X
For non-adjustable head restraint/head-
rest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
Condition:
