[ Edit: 2016/ 6/ 21 Model: 2017MY INFINITI Q50(V37) OM17E00V37U0 ]
5. Insert grommets into the hole on the
fascia.
6. Insert a flat-blade screwdriver into the
grommet hole to add 908 turn onto the
part
*
D
.
7. Install the license plate bracket with
screws.
GUID-555618E2-7242-401A-AA8C-3DE6E17EB1BC
STI0623
Left side
This vehicle is equipped with air deflectors
in front of the front wheels. The deflectors
will change the air flow to help improve
aerodynamic performance.
When transporting your vehicle on a trailer,
the air deflectors may interfere with a
steep slope to a trailer bed. In this case,
remove the deflectors from the undercover
of the vehicle.

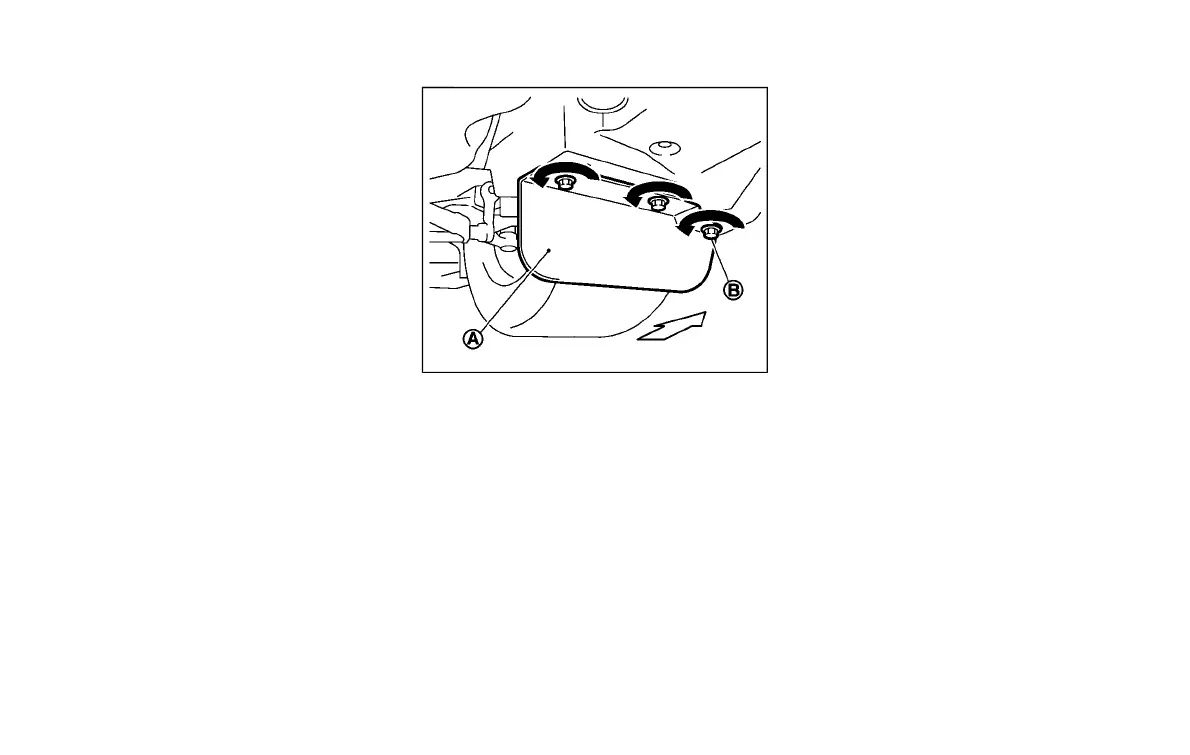

1. Loosen three screws as shown and
remove the left-side air deflector
*
A
.
2. Tighten the removed screw
*
B
in its
original position.
3. Perform the same procedure to remove
the right-side air deflector.
4. Store the two air deflectors and four
screws to reinstall in the reverse order.
5. When reinstalling, make sure all six
screws are firmly tightened on both air
deflectors.
Technical and consumer information 10-17
REMOVING AIR DEFLECTORS
Condition:
