[ Edit: 2016/ 6/ 21 Model: 2017MY INFINITI Q50(V37) OM17E00V37U0 ]
V37-D-121025-139F898F-EF61-4933-9424-E1767A8A4A89
JVC0721X

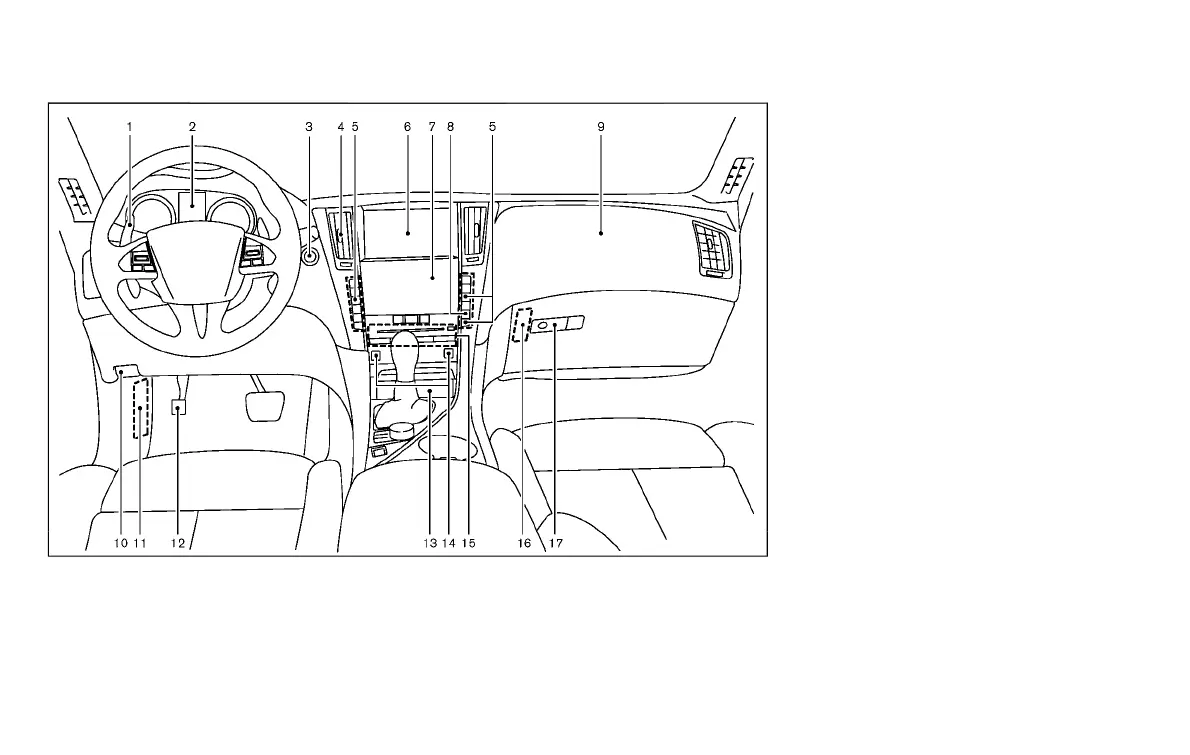

1. Paddle shifter (if so equipped) (P.5-18)
2. Meters and gauges (P.2-6)
— Clock (P.2-32)
3. Push-button ignition switch (P.5-12)
4. Center ventilator (P.4-2)
5. Automatic climate control system*
6. Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)
7. Lower touch screen display* (lower
display)
8. Rear window and outside mirror
defroster switch (P.2-38)
9. Front passenger supplemental air bag
(P.1-44)
10. Hood release handle (P.3-24)
11. Fuse box cover (P.8-24)
12. Parking brake (P.5-22)
13. Storage box (P.2-52) and power outlet
(P.2-48)
14. Seat heater switch (if so equipped)
(P.2-46)
15. Audio system*
16. Trunk release power cancel switch
(P.3-26)
17. Glove box (P.2-51)
*: Refer to the Infiniti InTouch Owner’s
Manual.
Instruments and controls 2-5
INSTRUMENT PANEL
