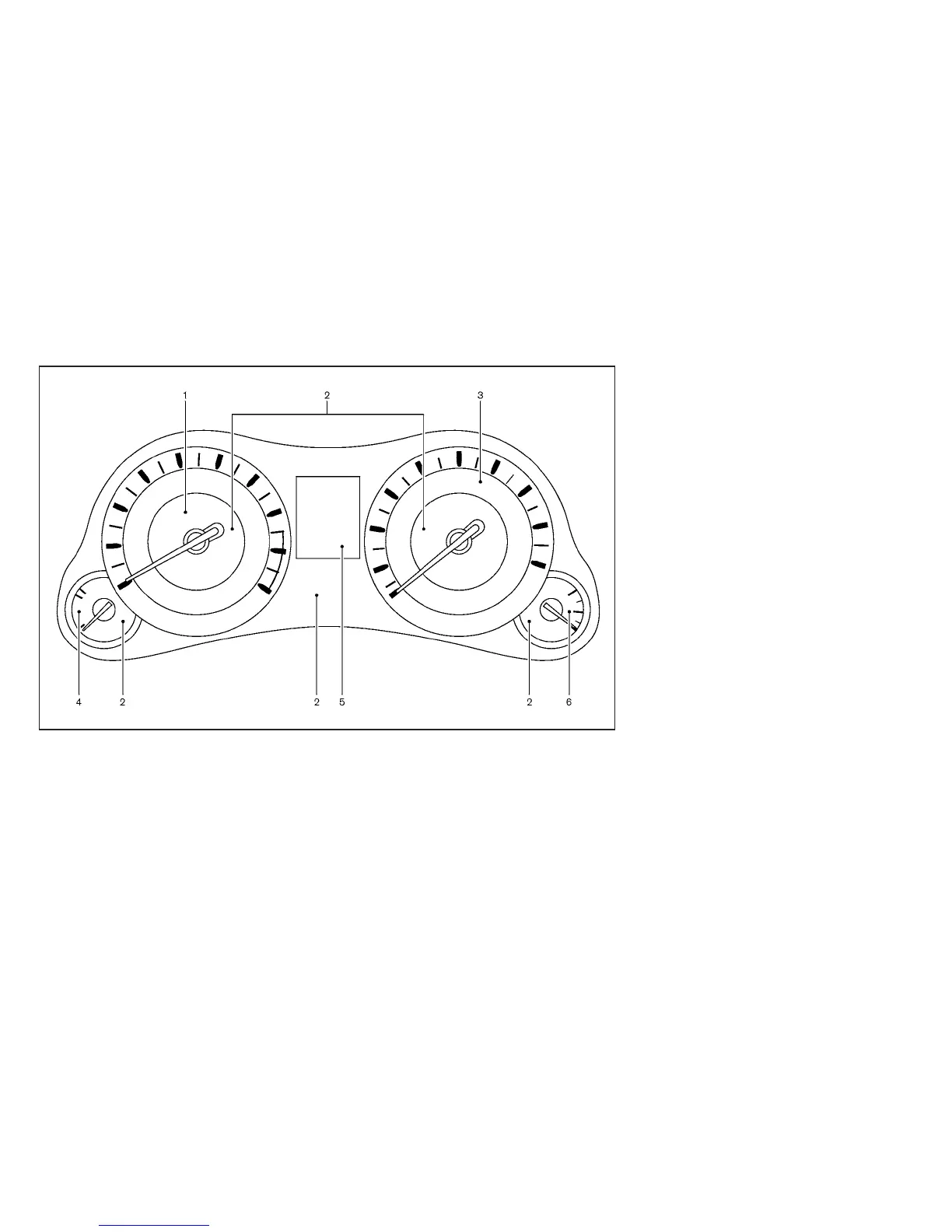

1.
Tachometer (P. 2-2)
2.
Warning/Indicator lights (P. 2-5)
3.
Speedometer (P. 2-2)
4.
Engine coolant temperature gauge (P. 2-2)
5.
Dot matrix liquid crystal display (P. 2-14)
— Odometer/twin trip odometer (P. 2-2)
— Automatic Transmission (AT) position
indicator light (P. 2-4)
6.
Fuel gauge (P. 2-3)
*: where fitted
SIC4317
METERS AND GAUGES
0-12 Illustrated table of contents
