CAUTION
The turn signal light may look like the side
of- vehicle line. This is not a malfunction.
JVH1142X
Front-wide view
JVH1143X
Rear-wide view
Front-wide/rear-wide view:
GUID-FC21C9F1-B02B-4530-B10B-23148017A672
The front-wide/rear-wide view shows a
wider area on the entire screen and allows
the checking of the blind corners on the
right and left sides. The front-wide/rear-
wide view displays an approximately 180-
degree area while the front view and the
rear view display an approximately 150-
degree area. The predictive course lines are
not displayed when using the front-wide/
rear-wide view.

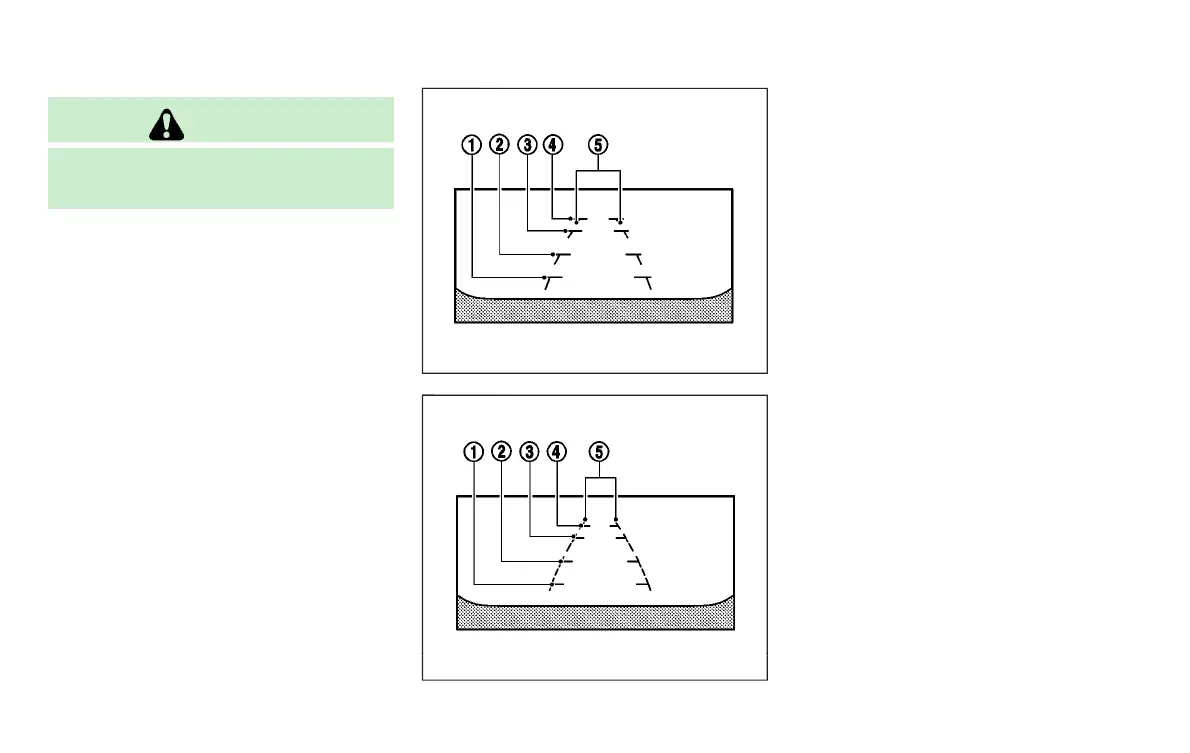

Distance guide lines
Indicates distances from the vehicle body.
. Red line
*
1
: approx. 1.5 ft (0.5 m)
. Yellow line
*
2
: approx. 3 ft (1 m)
. Green line
*
3
: approx. 7 ft (2 m)
. Green line
*
4
: approx. 10 ft (3 m)
Vehicle width guide lines
*
5
Indicates the vehicle width when backing
up.
Difference between predicted and
actual distances
GUID-F00FFAD1-76BF-4068-B496-B51D95620617
The displayed guide lines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or down-
hill surfaces or projecting objects will be
actually located at distances different from
