[ Edit: 2016/ 8/ 1 Model: 2017MY INFINITI Q70(Y51) OM17E00Y51U0 ]
JVR0203X

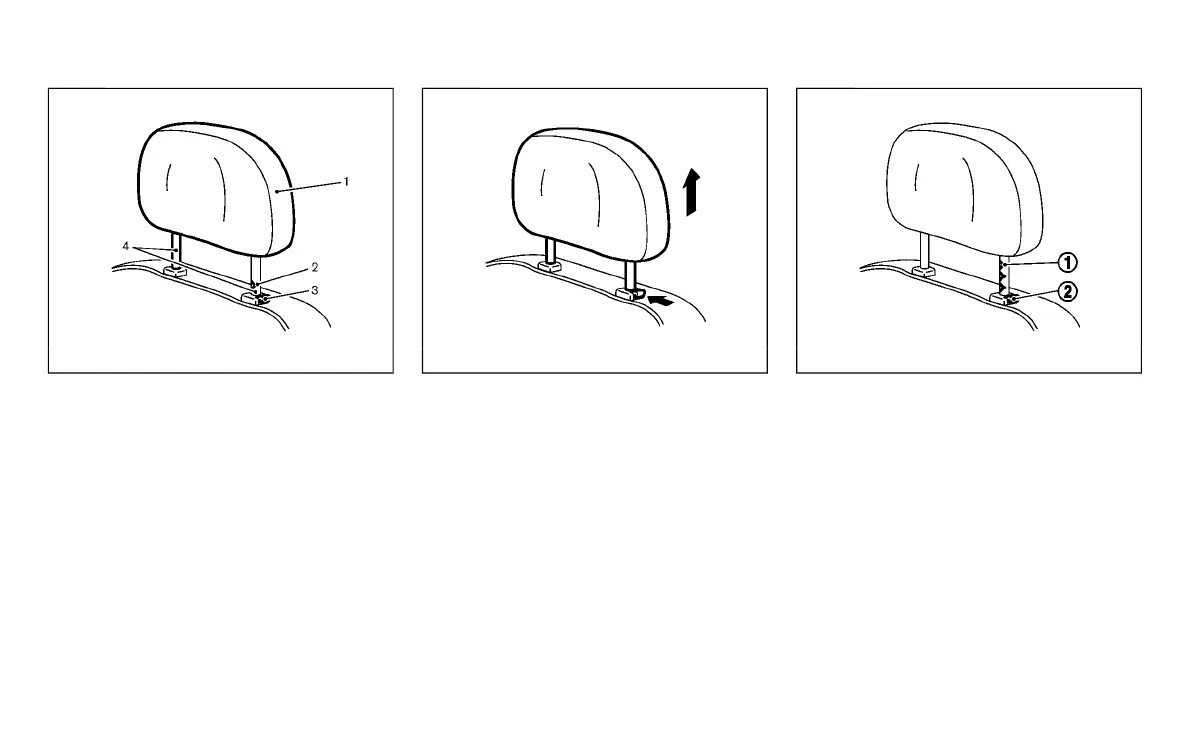

NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
Y51D-V-E01-15FAC2F7-19E9-42D2-BBB8-27C642986FBC
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVE
Y51D-V-E01-D21DF91F-83B2-453A-9EBD-F3AD8FB187F7
Use the following procedure to remove the
head restraint/headrest.
1. Pull the head restraint/headrest up to
the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest
from the seat.
4. Store the head restraint/headrest prop-
erly in a secure place so it is not loose
in the vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position.
SSS0996
INSTALL
Y51D-V-E01-13998155-E1A8-4A01-8233-71A170E9AFD5
1. Align the head restraint/headrest
stalks with the holes in the seat. Make
sure that the head restraint/headrest is
facing the correct direction. The stalk
with the adjustment notch
*
1
must be
installed in the hole with the lock knob
*
2
.
2. Push and hold the lock knob and push
the head restraint/headrest down.
3. Properly adjust the head restraint/
headrest before an occupant uses the
seating position.
Safety — Seats, seat belts and supplemental restraint system 1-7
