[ Edit: 2016/ 8/ 1 Model: 2017MY INFINITI Q70(Y51) OM17E00Y51U0 ]

8-4 Do-it-yourself

Y51D-V-E01-40355A41-7F10-4734-AE5E-6CAA3DAE4D37

SDI2569

VK56VD ENGINE

Y51D-V-E01-E9D8FF24-AD48-40B9-8D74-62D279278F91

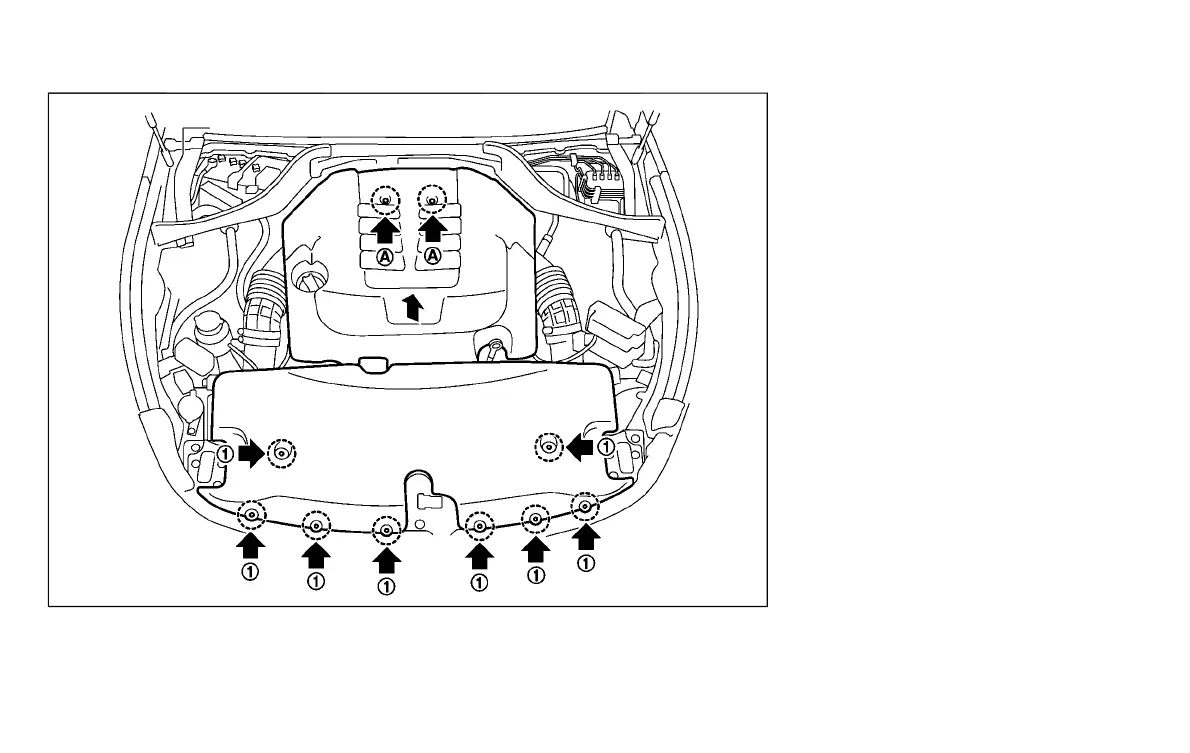

To remove the engine compartment cover,

unhook the clips

located as illustrated.

Loosen the bolts

and then pull the

cover upward.

ENGINE COMPARTMENT CHECK LOCATIONS

Condition:
