8-34 Do-it-yourself
SDI2567

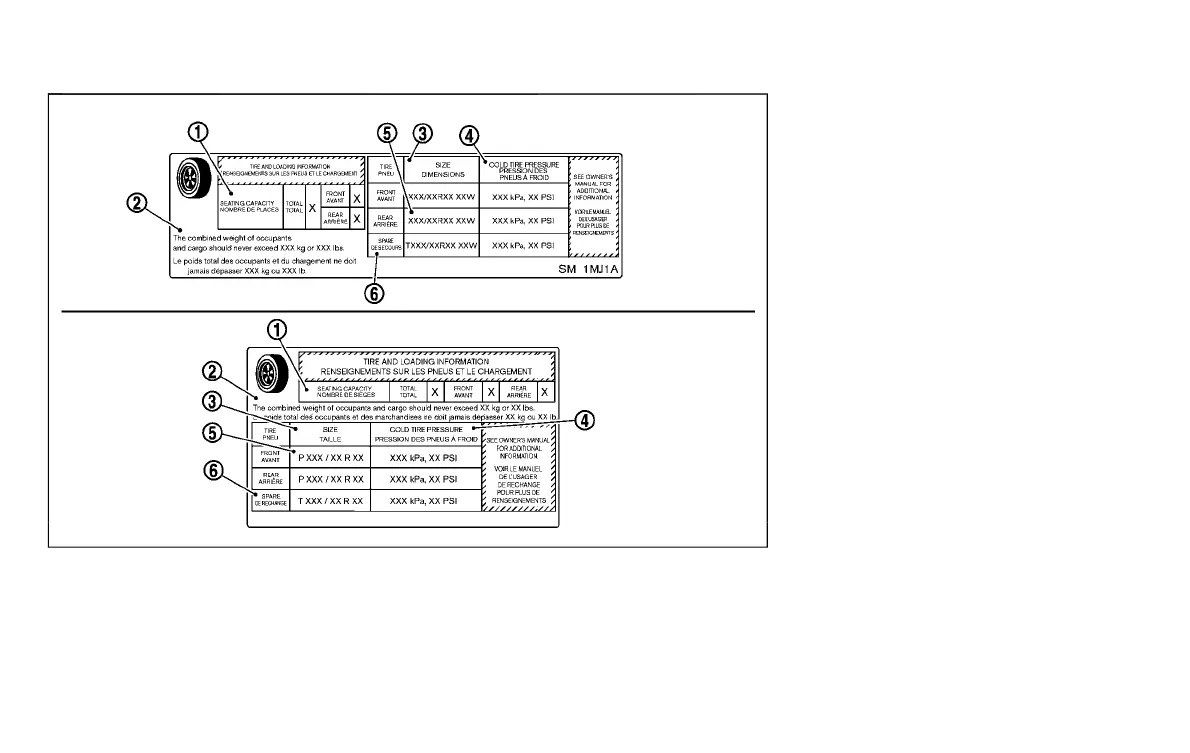

Tire and Loading Information label
Y51D-V-E01-C7BD36AF-9934-43A4-94F2-4EDCBACAF922
*
1
Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
*
2
Vehicle load limit: See “Vehicle
loading information” (P.10-16).
*
3
Original size: The size of the tires
originally installed on the vehi-
cle at the factory.
*
4
Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6
km) at moderate speeds. The
recommended cold tire inflation
is set by the manufacturer to
provide the best balance of tire
wear, vehicle handling, drive-
ability, tire noise, etc., up to the
vehicle’s GVWR.
*
5
Tire size — see “Tire labeling”
(P.8-36).
*
6
Spare tire size or compact spare
tire size (if so equipped)
Condition:
