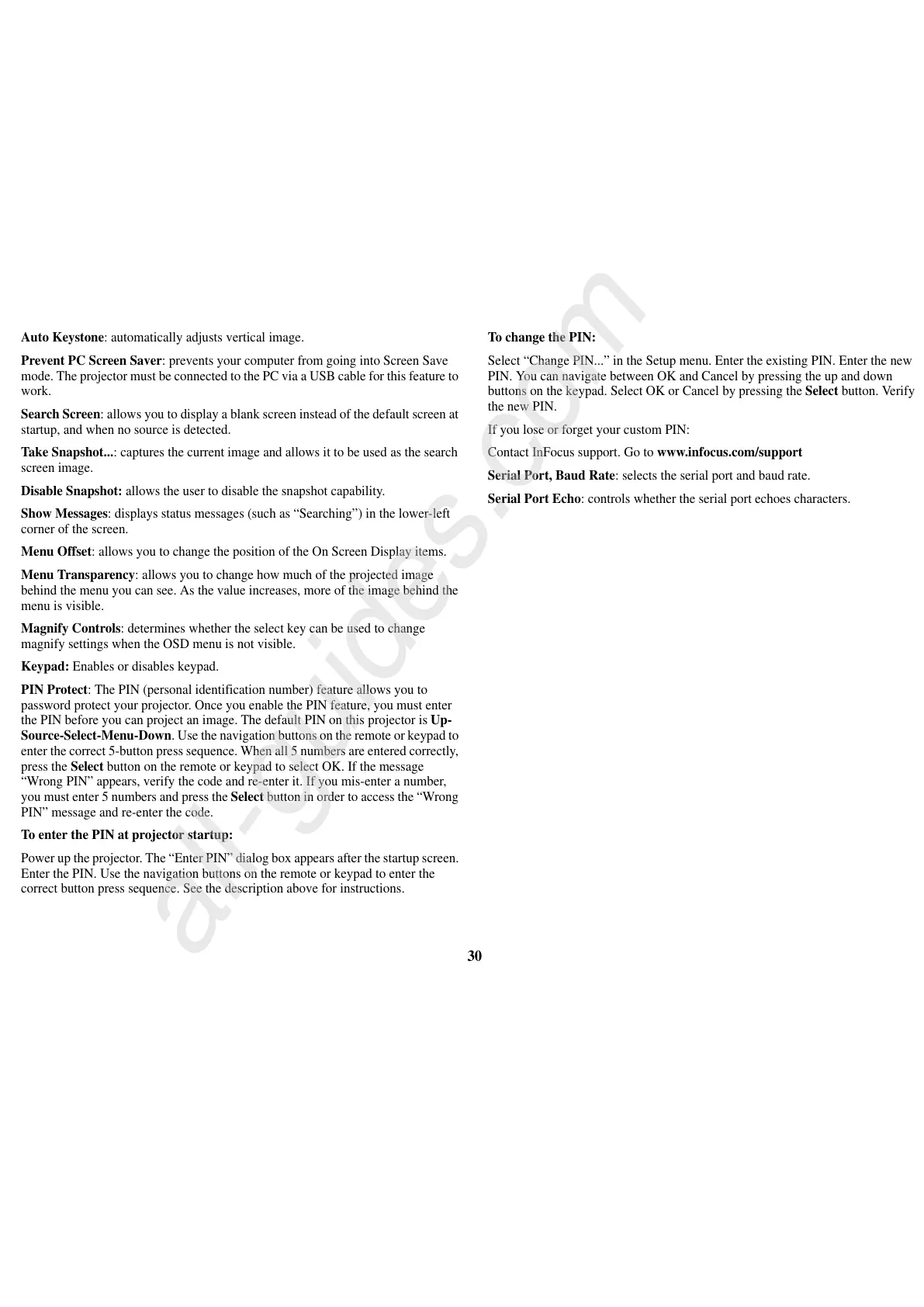

InFocus IN1503 Manual

30
Auto Keystone: automatically adjusts vertical image.
Prevent PC Screen Saver: prevents your computer
from going into Screen Save
mode. The projector must be connected to the PC via a USB cable for this feature to
work.
Search Screen: allows
you to display a blank screen instead of the default screen at
startup, and when no source is detected.
Take Snapshot...: captures the current image and allows it to be used as the search
screen image.
Disable Snapshot: allows the user to disable the snapshot capability.
Show Messages: dis
plays status messages (such as “Searching”) in the lower-left
corner of the screen.
Menu Offset:
allows you to change the position of the On Screen Display items.
Menu Transparency: allo
ws you to change how much of the projected image
behind the menu you can see. As the value increases, more of the image behind the
menu is visible.
Magnify Controls:
determines whether the select key can be used to change
magnify settings when the OSD menu is not visible.
Keypad:
Enables or disables keypad.
PIN Protect:
The PIN (personal identification number) feature allows you to
password protect your projector. Once you enable the PIN feature, you must enter
the PIN before you can project an image. The default PIN on this projector is Up-
Source-Select-Menu-Down. Use the navigation buttons on the remote or keypad to
enter the correct 5-button press sequence. When all 5 numbers are entered correctly,
press the Select button on the remote or keypad to select OK. If the message
“Wrong PIN” appears, verify the code and re-enter it. If you mis-enter a number,
you must enter 5 numbers and press the Select button in order to access the “Wrong
PIN” message and re-enter the code.
To enter the PIN at projector startup:
Power up the projector. The “Enter PIN” d
ialog box appears after the startup screen.
Enter the PIN. Use the navigation buttons on the remote or keypad to enter the
correct button press sequence. See the description above for instructions.
To change the PIN:
Select “Change PIN...” in the Setup menu. Enter the existing PIN. Enter the new
PIN.
You can navigate between OK and Cancel by pressing the up and down
buttons on the keypad. Select OK or Cancel by pressing the Select button. Verify
the new PIN.
If you lose or forget your custom PIN:
Contact InFocus support. Go to www
.infocus.com/support
Serial Port, Baud Rate: selects
the serial port and baud rate.
Serial Port Echo: controls
whether the serial port echoes characters.
All manuals and user guides at all-guides.com
all-guides.com

InFocus IN1503 Specifications

General

Matrix size	0.65 \
Native aspect ratio	16:10
Projection distance	0.76/3.51 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	1800:1
Screen size compatibility	- \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30/30 °
RS-232 ports	0
Focus	Manual
Offset	105 %
Throw ratio	0.72 - 0.86:1
Focal length range	- mm
Lamp power	165 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
RMS rated power	1 W
Number of built-in speakers	1
Audio (L/R) in	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	29 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	170 W
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Product color	Black

Weight and Dimensions

Depth	222 mm
Width	235 mm
Height	83.8 mm
Weight	2000 g
Package weight	4300 g
