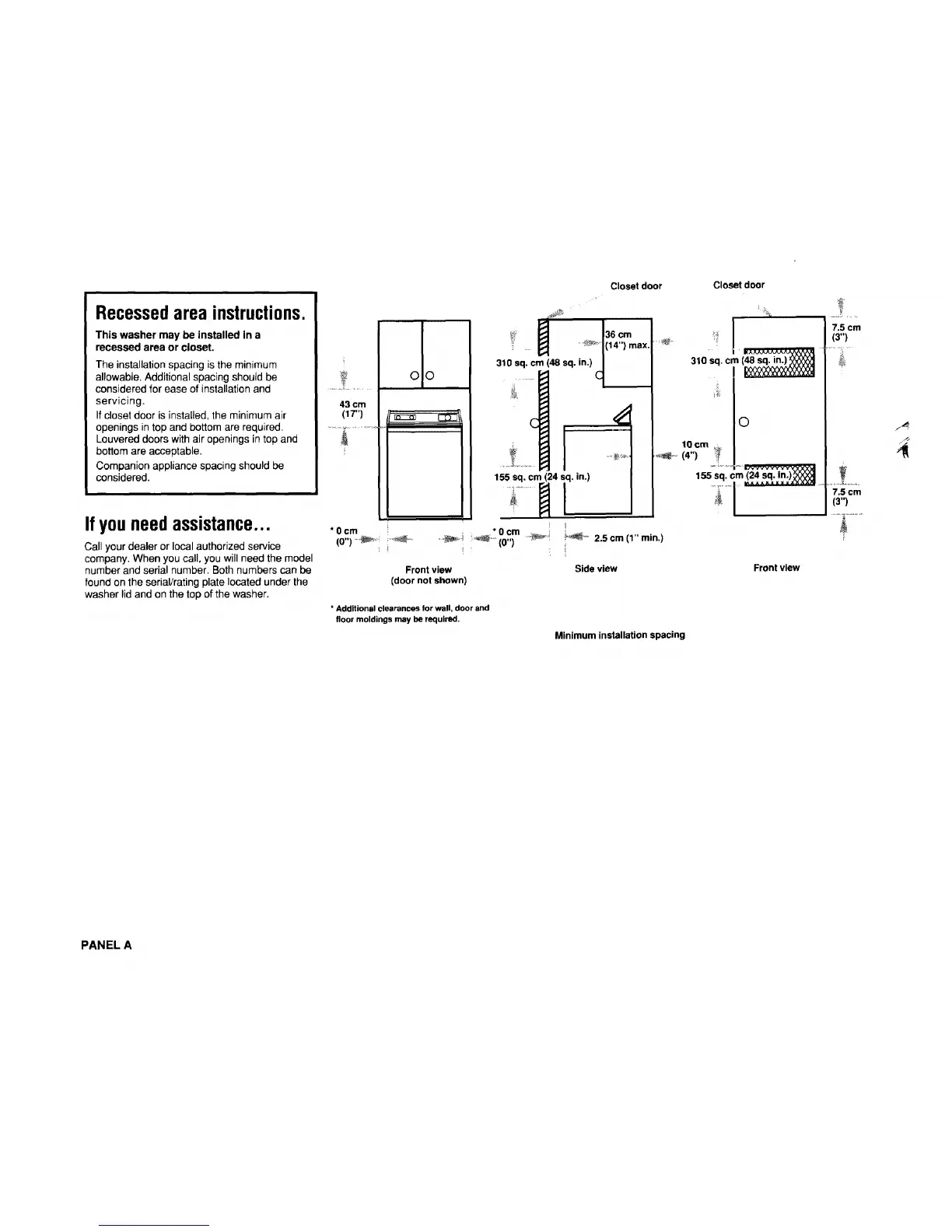

Recessedarea instructions.
This washer may be installed in a
recessed area or closet.
The installation spacing is the minimum
allowable. Additional spacing should be
considered for ease of installationand
servicing.
If closet door is installed, the minimum air
openings in top and bottom are required.
Louvered doors with air openings in top and
bottom are acceptable.
Companion appliance spacing should be
considered.
If youneedassistance...
Call your dealer or local authorized service
company. When you call, you will need the model
number and serial number, Both numbers can be
found on the serial/rating plate located under the
washer lid and on the top of the washer,
Closet door
43 cm
(17")
*Ocm
O0
Front view
(door not shown)
Side view
" Additional clearances for wall, door and
floor moldings may be required,
Minimum installation spacing
Closet door
310 sq. cm (_
©
Front view
7.5 cm
(3")
7.5 cm
(3")
f,_
PANEL A
