toolset

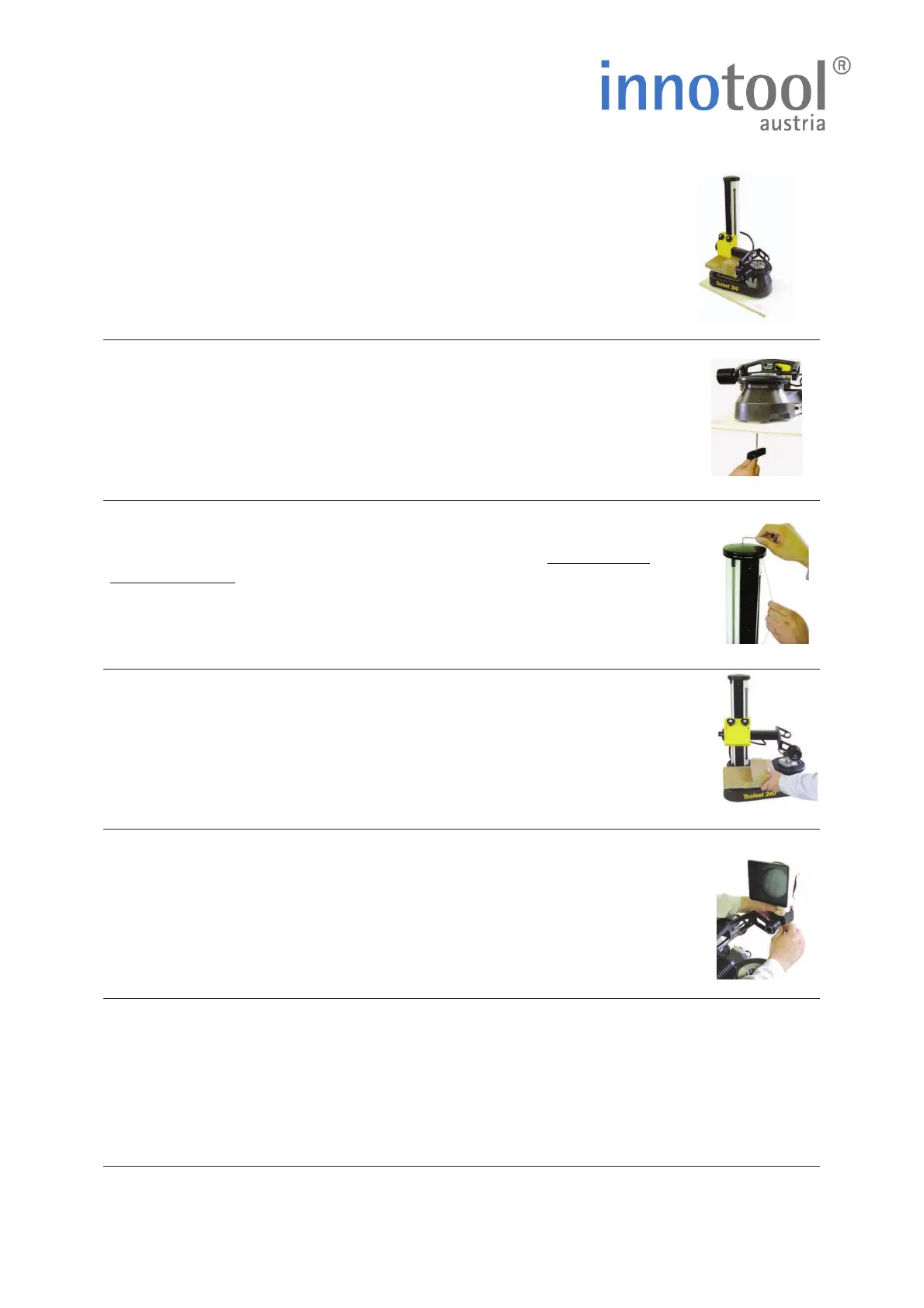

– unpack and set up
Take the TOOLSET with the mounted wood board out of the cardboard
and put it to his work place.
Re
move the 3 screws on the bottom of the wood board and put the
TOOLSET away from the board.
Remove the transport screw on the top of the column
(Important!!!). The weight is transport saved at the
column. After removing the
transport screw put the weight rope
softly to the column.
Loose the Z-
Clamp and move up with the measuring wagon. Now take
away the indicator pad.
Caution:
If the Optic is not mounted and the transport screw is
already loosed it is possible that the
measuring wagon move
automatically up because of the heavier Optic weight. That could result
in damage of the system.
OPTION OPTIC:
Stick the Optic with the distance tube on the Optic holder and tight
the clamp screw a little. Adjust the Optic on the z-
Please use the original transport elements if you have to send the TOOLSET back to the
supplier (for maintenance). Transportation elements are: transportation cardboard, wood
board with the three screws and the plastic elements, Indicator pad.
