Innova ITX9688 User Manual

64
65
66
60
62
62
59
6
59
63
61
6
59
63
59
61
6
59
6
61
61
59
60
62
61
61
63
38
2
6
3
Front
Rear
2-188
1-185
6ft-183

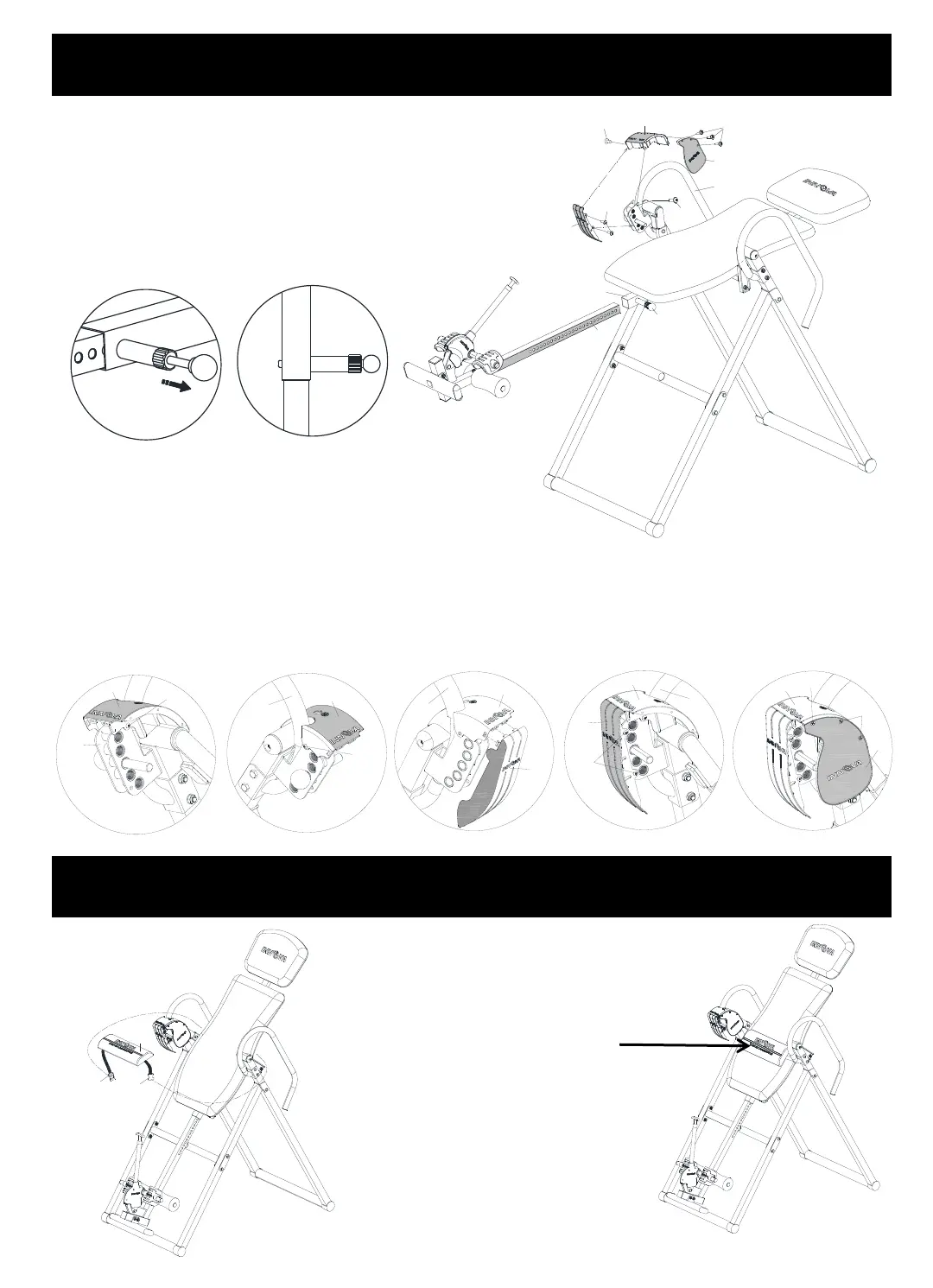

Step 5 – Height Adjustment Tube & Protective Cover Assembly
9
Unlock
Locked
Pull the Height Adjustment Knob (38) and at the
same time slide the Height Adjustment Tube (3) into
the Backrest Support Tube (2) to your desired height
number and release the Height Adjustment Knob
(38). Make sure the Height Adjustment Knob (38)
locks securely into a hole on the Height Adjustment
Tube (3).
Attach the Protective Cover (59) to the Right Handlebar (6) with two Screws (61), one on
each side of the Cover. Attach and snap the Front Shield for Cover (63) to the Protective
Cover (59) and secure it onto the Right Handlebar (6) with two Screws (61). Then attach
the Side Shield for Cover (60) to the Protective Cover (59) using three Screws (62).
Step 6 – Installing Lumbar Support
Attach the Lumbar Pad (64)
Wrap the straps around the
backside of the Backrest
(47) to secure it into place.
NOTE: Lumbar Pad (64)
position can be moved up or
down to fit under your
lumbar area or to your
desired position.
