Inovance CV800 Series User Manual

Item
Specification
Display
and
keyboard
operation
LCD display
Optional part, Chinese/English prompt content
Parameter
copying
Quick replication of the parameters with LCD
operation panel
Program
download
Underlying program can be downloaded with
LCD keyboard
Protection
Protection
function
Motor short circuit detection, input-output
open-phase protection, overcurrent protection,
overcurrent protection, overvoltage protection,
undervoltage protection, overheat protection,
overload protection, etc.
Communi
cation
CAN
Support CAN communication and SAE1939
protocol
Loading
capacity
Full-load voltage
range
Corresponding 220V motor: 311V~880V
Corresponding 380V motor: 540V-880V
Output
derating
Range of voltage
drop
Corresponding 220V motor: 250V~311V
Corresponding 380V motor: 250V-540V
DC-DC
Basic
function
Output voltage
adjustable
Output voltage can be adjustable within the
range 14V~27.5V
Two lines of
output
Two channel output, with common ground
Fast current
limiting function
Brush fan startup can limit the fast
current-limiting startup
Display
and
keyboard
operation
LCD display
Optional part, Chinese prompt content
Parameter
program
modification,
copying and
download
Fast replication of parameters and program
downloads
Protection
Protection
function
Overcurrent protection, overvoltage
protection, undervoltage protection, overheat
protection, overload protection, etc.
Communi
cation
CAN
Support CAN communication and SAE1939
protocol
Loading
capacity
Full-load voltage
range
380V~800V
Output
derating
Range of voltage
drop
250V~380V, 800V~880V
PLC(only three-in-one)
Input and
output
Input terminal
9 channel digit input, 6 channel temperature
input, 2 channel analog input
Output terminal
5 channel digit input, 3 channel relay output, 2
channel analog output
Electronic
expansion valve
Support 4 channel /6 channel 12V/6W
electronic expansion valve (optional)
Communi
cation
Communication
CAN, 485, USB, one channel respectively
Display
and
keyboard
operation
LCD display
Optional part, Chinese prompt content
Monitoring and
download
onitorign of input output Terminal status and
downloading of underlying and application
programs

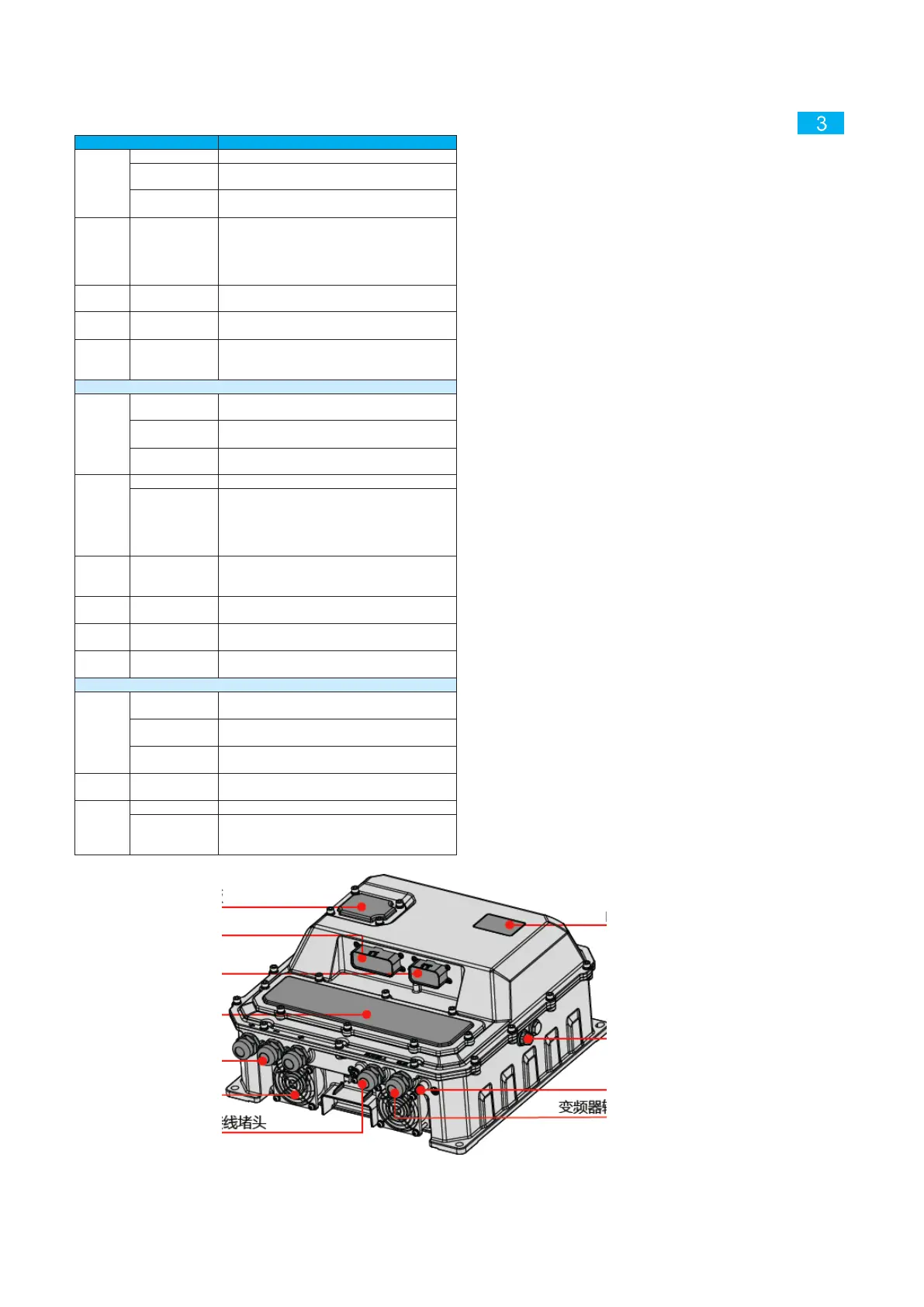

☞ Product parts
Keyboard window cover
LED display window
35pin aviation plug
23pin aviation plug
Main power wiring
cabin cover
Waterproof breather valve
DC-DC output
wiring plug
Cooling fan Grounding terminal
Inverter output wiring plug
Inverter input wiring plug
Fig. 1 CV800 product parts
