13. EMC MD500 User Manual
- 316 -
13.5.5 Common-mode Filter
The common-mode filter is installed on the output side (close to the AC drive) to reduce the bearing current and reduce
interference on the surrounding devices.

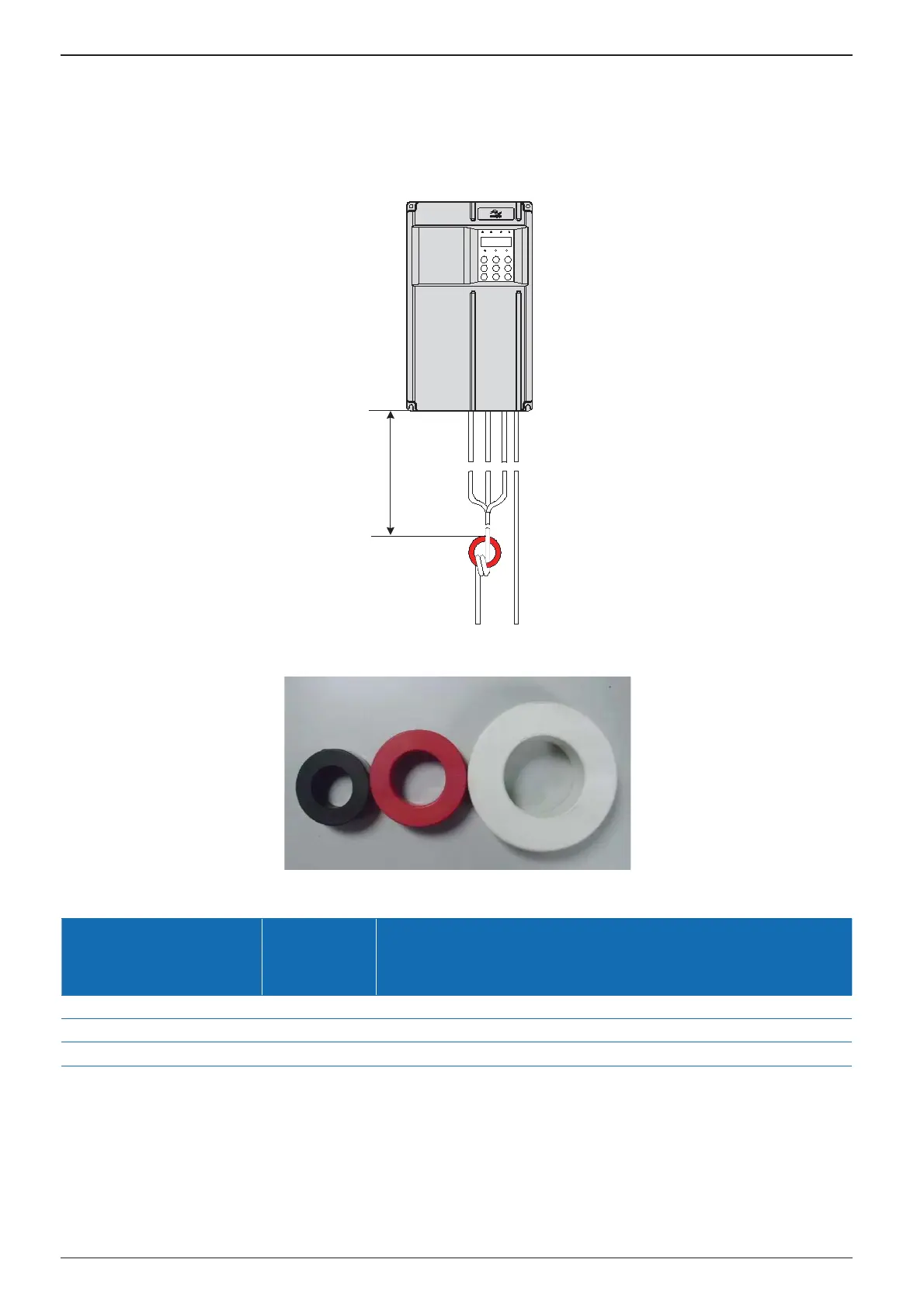

7KHIROORZLQJÀJXUHVKRZVLQVWDOODWLRQRIWKHFRPPRQPRGHÀOWHU
PEWVU
Cable
length
30 cm
Magnetic ring
(wind three turns)
7KHIROORZLQJÀJXUHVKRZVWKHSK\VLFDODSSHDUDQFHRIWKHPDJQHWLFULQJ
Common-mode Filter Model SN Dimensions
(Outer Diameter x Inner Diameter x Thickness)
(mm)
DY644020H 11013031 64 x 40 x 20
DY805020H 11013032 80 x 50 x 20
DY1207030H 11013033 120 x 70 x 30
