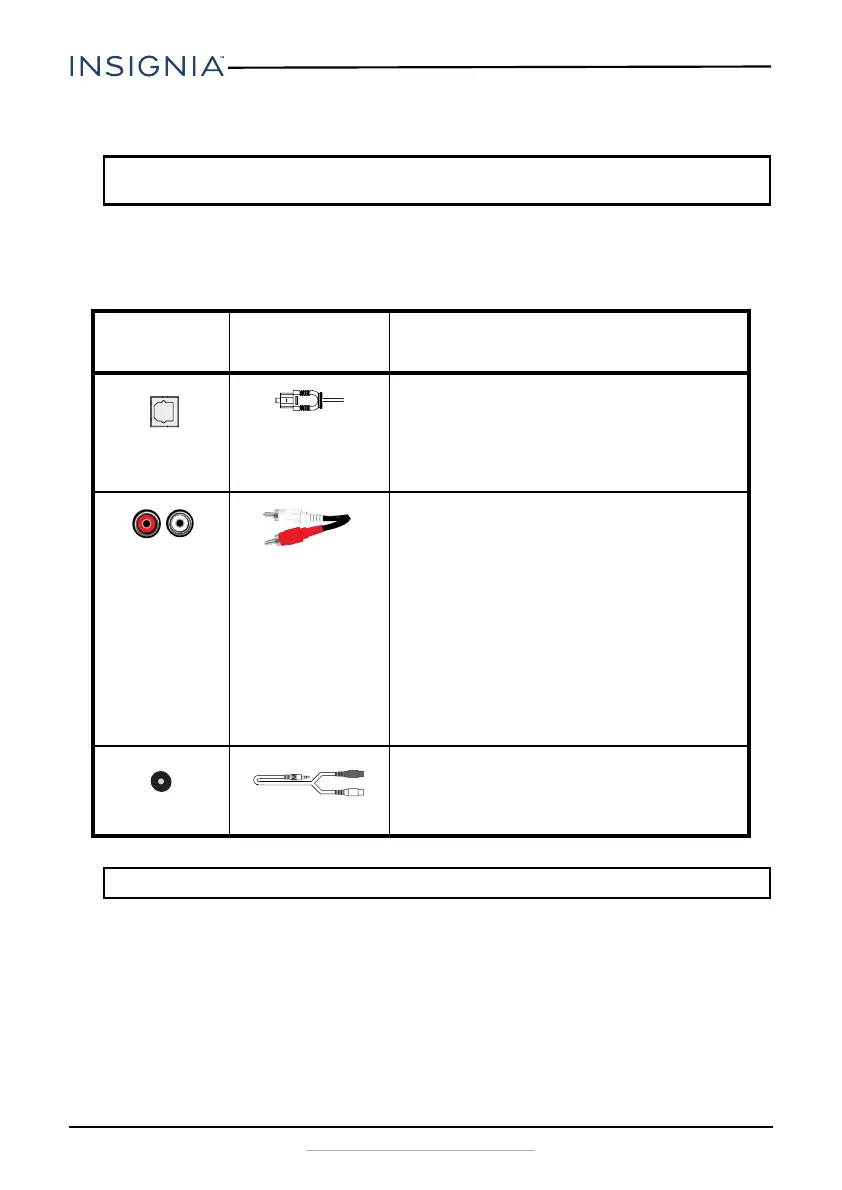

Step 3 - Connecting the headphone docking station
Look at the ports on your audio source device, such as a TV, stereo system,
home theater, smartphone, computer, or tablet to identify your audio OUT
ports. Choose the connection option below that fits your audio source
device.
NOTE: Do not connect the RCA cables to the AV jacks on the back of your TV. AV jacks
are for video and audio INPUT, not audio OUTPUT.
Jack type on
audio source
Cable When to use
Digital OPTICAL
cable (not
included)
If your audio source device has a digital
optical OUTPUT port, see “Option A -
Digital OPTICAL connection” on page 11
for connection instructions.
RCA cable
(included)
If your audio source device has red and
white audio OUTPUT ports (do not
connect to audio INPUT ports), see
“Option B - RCA connection” on page 12
for connection instructions.
OR
If your audio source device only has one
audio output, but you want to connect it
to both the docking station and a stereo
system, see “Option D - Multiple
Connections (Optional)” on page 14 for
connection instructions.
If your audio source has a 3.5 mm
headphone jack, see “Option C - 3.5 mm
connection” on page 13 for connection
instructions.
CAUTION: Turn off or unplug all devices while you are making connections.
