PART 6 PARTS & ASSEMBLIES
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802

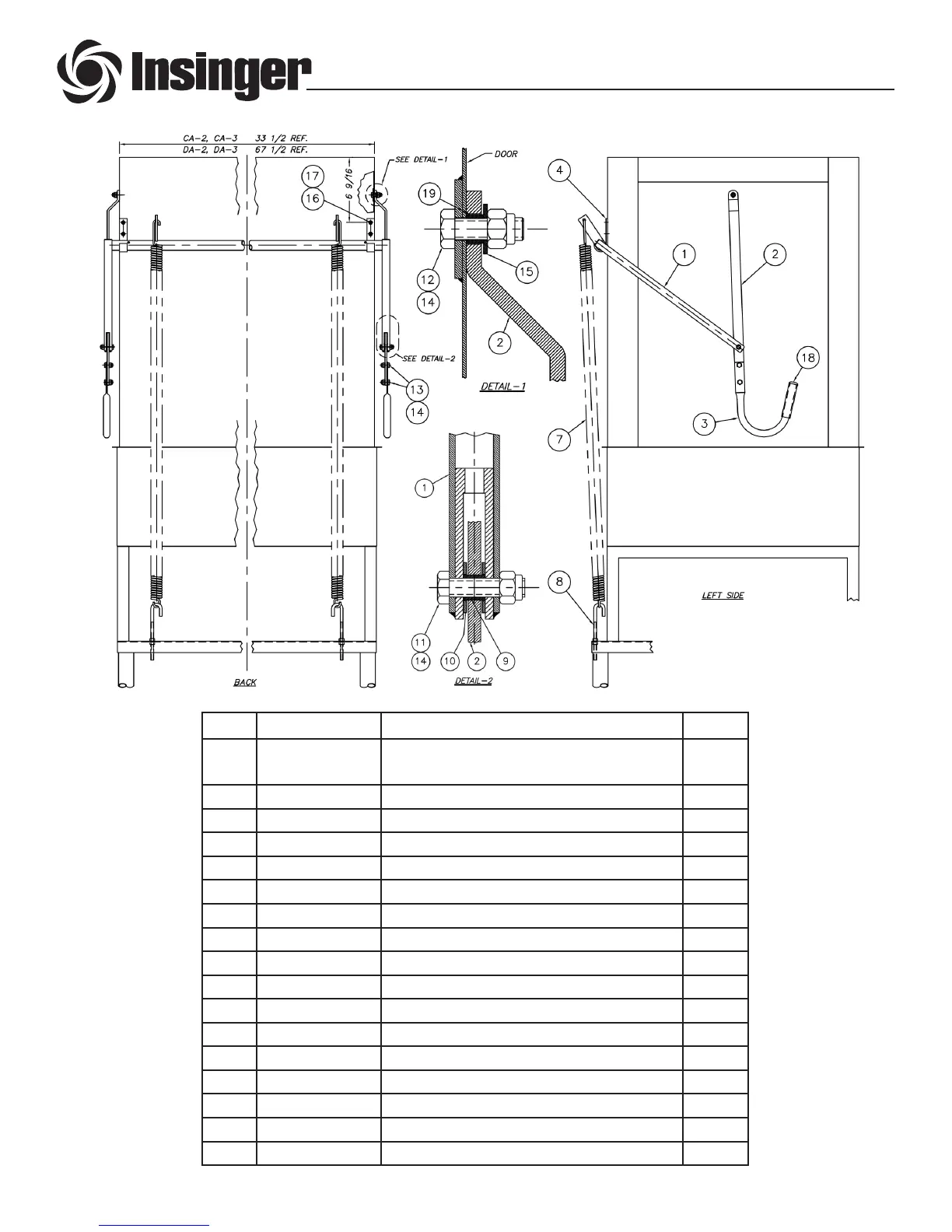

925-40 : Spring Counterweight Assembly
ITEM PART NO. DESCRIPTION QTY
1 925-41
930-19
Door Arm Weldment, CA
Door Arm Weldment, DA
1
2 562-33 Door Arm 2
3 562-34 Door Handle 2
4 925-42 Bracket Door Arm 2
7 SK-2290A Spring 2
8 925-44 Spring Extension Rod 2
9 562-35-1 Lower Spacer x 7/16” LG 2
10 562-71 Washer 4
11 D309C-JC-12A Hex Head Screw S/S 3/8 x 1 1/2” Lg. 2
12 D309C-JC-9A Hex Head Screw S/S 3/8 x 1 1/8” Lg. 2
13 D309C-JC-7A Hex Head Screw S/S 3/8 x 7/8” Lg. 4
14 D312C-JC-5 Locknut (Seal) S/S 3/8-16 8
15 D313C-J1 3/8 Flat Washer S/S 2
16 D309C-GC-6E Seal Head Screw S/S 1/4-20 x 3/4” Lg. 4
17 D312C-GC-5 Locknut (Seal) S/S 1/4-20 4
18 D2245 Plastic Handle Cover 2
19 562-35-2 Upper Spacer 5/16” Lg. 2
REV E - 03/14/01
