ASSEMBLY STEP 5

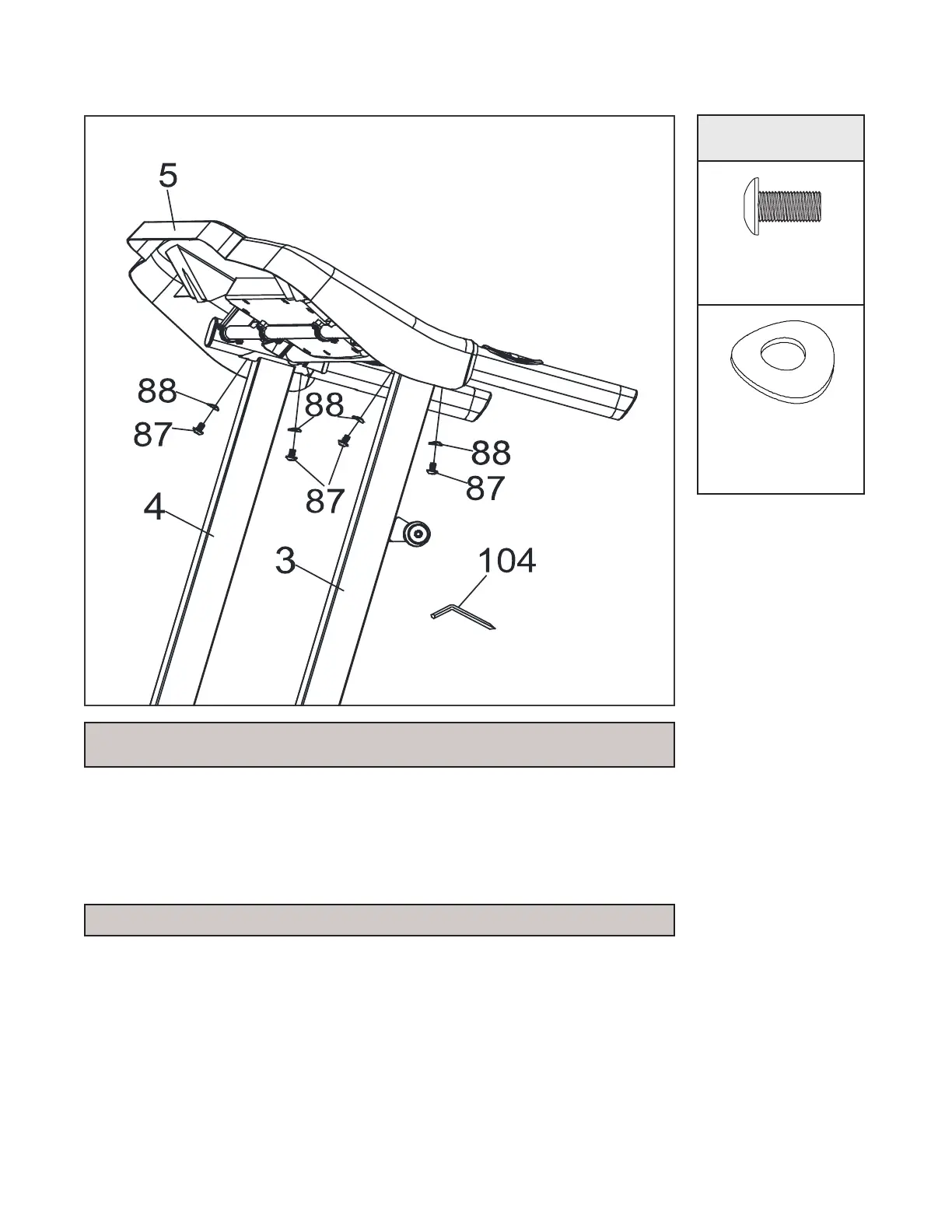

1. Install the CONSOLE SUPPORT (5) onto the UPRIGHTS (L,R)
(4,3) with the 4 BUTTON HEAD SOCKET BOLTS (87) and 4
CURVED WASHERS (88) by using the ALLEN WRENCH.
HARDWARE
HARDWARE
Bolt (87)
Qty: 4
Curved
Washer (88)
Qty: 4
NOTE: Be careful not to pinch the computer cables when attaching
the console.
NOTE: Please tighten all screws after assembly is complete.
