Intel DH61HO Product Brief

7.48” (19cm)
8.86” (22.5cm)
1
4
3
5
5
10
6
6
78
9
9
11
2
6 Six-channelIntel®HighDenitionAudio
6
:
Audio subsystem with three analog audio
outputs (5.1 + 2 independent multi-streaming)
7 PCI Express* 3.0 ×16 graphics connector:
Delivers up to 8 GB/s bandwidth when used
with a compatible processor
8 Two PCI Express*
×
1 connectors
9 10 Eight USB 2.0 ports: Four back panel
ports and four additional ports via
internal headers
11 MicroATX form factor (8.86¨
×
7.48¨)
3

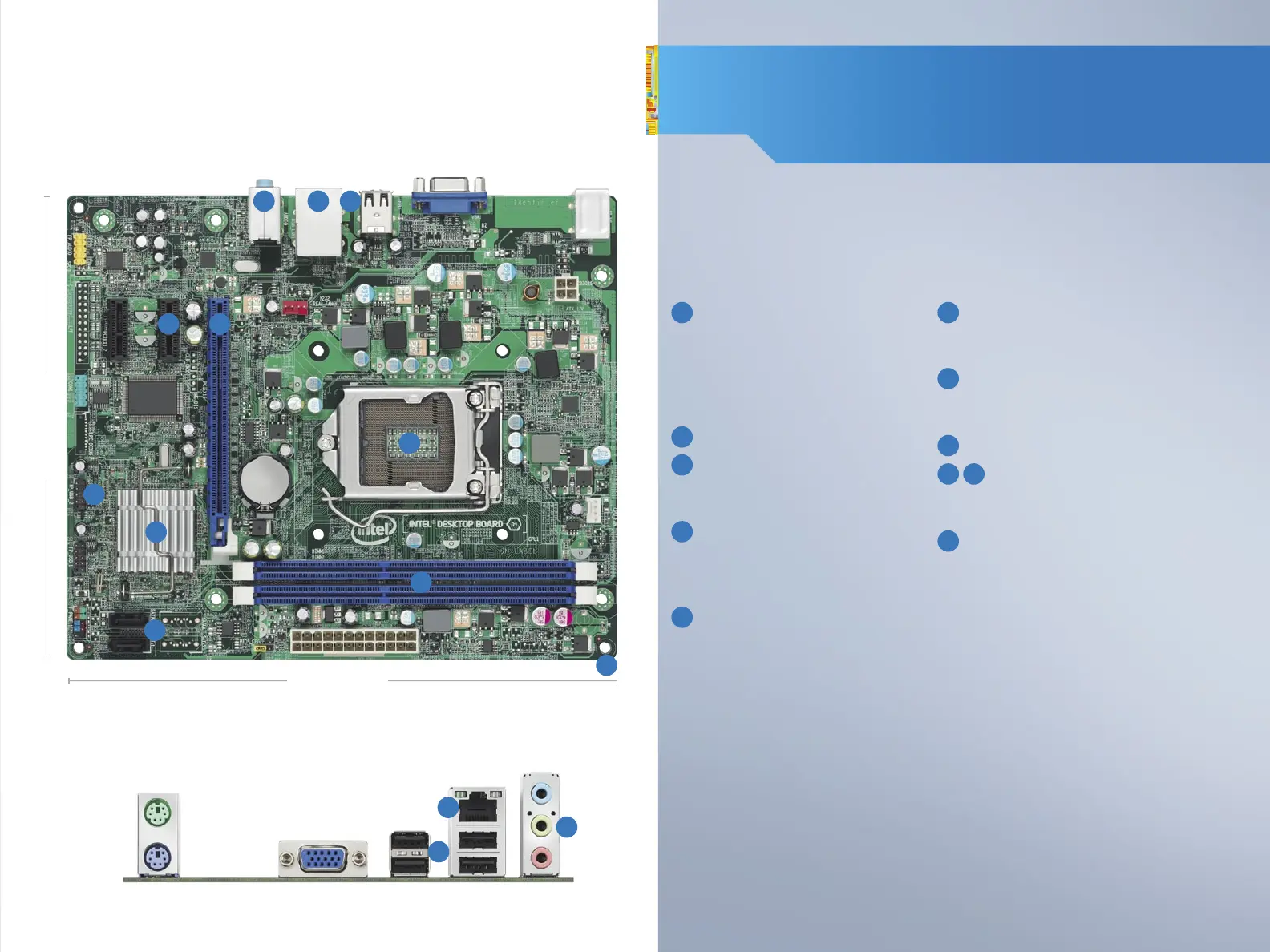

Intel® Desktop Board DH61HO
Features and Benets
1 Supports the 2
nd
and 3
rd
-generation
Intel® Core™ processors, including the
Intel® core™ i7, the Intel® Core™ i5 pro-
cessors and other Intel® processors in
the LGA1155 package at a maximum
65W TDP for exceptional performance
2 Intel® H61 Express Chipset PCH
3 Dual-Channel DDR3 with two connec-
tors for 1333
4
/1066/800 MHz
memory support (16 GB
5
max)
4 Two SATA ports (3.0 Gb/s): Facilitate
high-speed storage and data transfers
at up to 3.0 Gb/s for each of four two
ports
5 Integrated 10/100/1000 Network
Connection
Classic Series

Intel DH61HO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCIe 2.0 x1 Slots	2
SATA Ports	4 x SATA 3.0 Gb/s
Audio	Realtek ALC892
Audio Codec	Realtek ALC892
LAN Controller	Realtek RTL8111E
Video Outputs	VGA, DVI-D
USB Ports	10 (4 x USB 3.0, 6 x USB 2.0)
