9.6” (24.38cm)
11.6” (29.46cm)
3

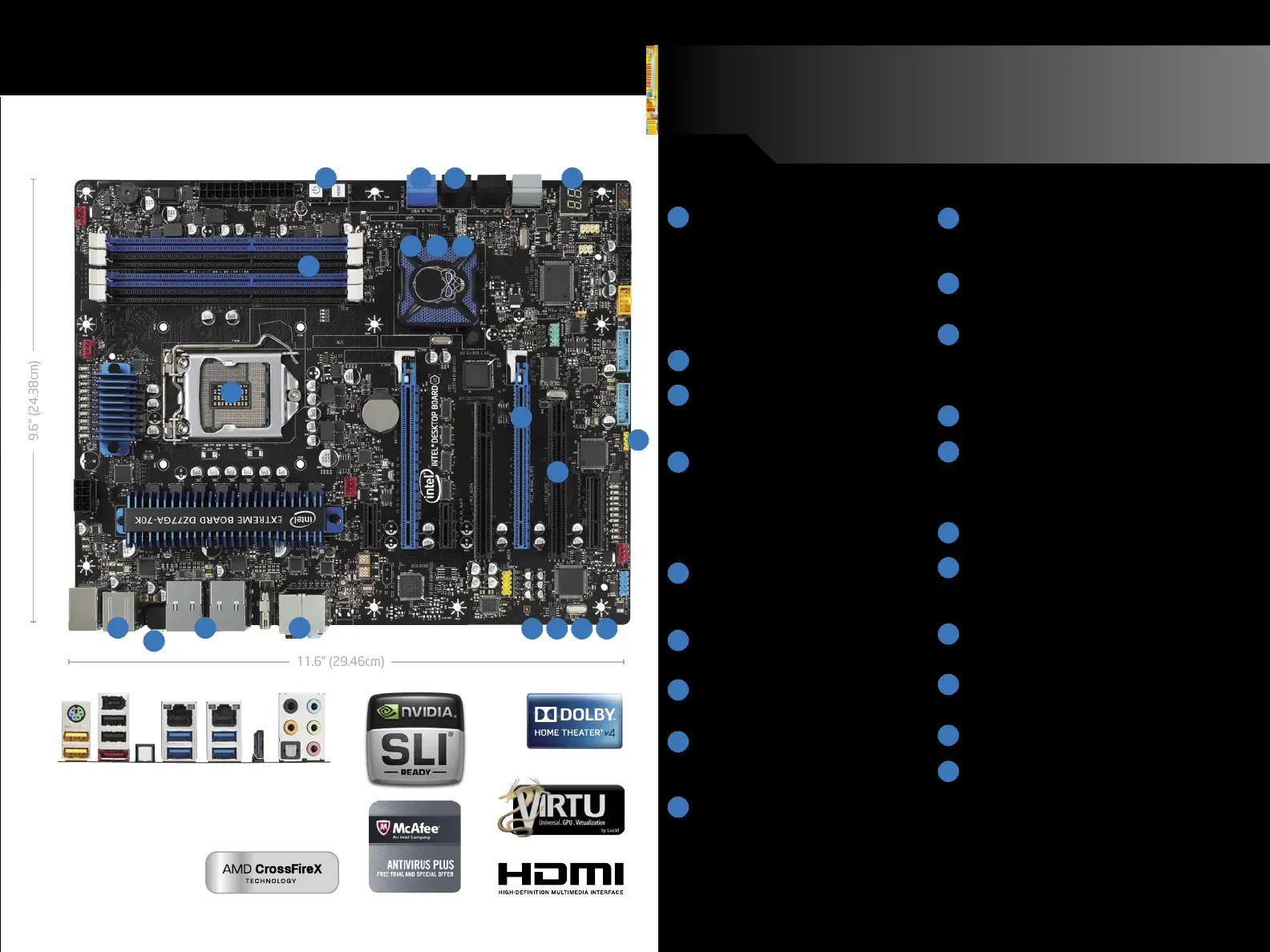

Intel® Desktop Board DZ77GA-70K
Features and Benets
2
4
13
14
9
5
6
12
15
16
1
10
8
1 Support for the Intel® Core™ i7 proces-
sor in the LGA 1155 package. Highly
optimized for the Intel® -K Processors.
Features Intel® Turbo Boost Technol-
ogy
4
, Intel® Hyper-Threading Technol-
ogy
5
for exceptional performance and
scalability, and 8 MB Shared Intel® Smart
Cache, enabling dynamic and efcient
allocation of cache.
2 Intel® Z77 Express Chipset: Features
Intel® Smart Response Technology.
3 Four DIMM slots: Designed to support
overclocked
1
DDR 3 1600 + O.C.
6
memory,
delivering up to 32 GB /s memory band-
width.
4 Eight Super-Speed USB 3.0 ports
(4 external, 4 via internal header),
two IEEE 1394a ports (1 external,
1 via internal header), and 10 USB 2.0
ports (4 External, 6 via internal
headers): Two USB 2.0 ports provide
high current and fast charging capability.
5 Two PCI Express 3.0*
×
16 slots:
Ability to scale to dual
×
8 graphics
support for certied AMD CrossFireX*
and NVIDIA* SLI.*
6 PCI Express* and PCI connectors:
Flexibility to support PCI Express
and legacy PCI devices.
7 Four SATA 6.0 Gb/s ports,
four SATA 3.0 Gb/s ports, and one
eSATA 6.0 Gb/s.
8 Intel® Rapid Storage Technology:
Performance and reliability with support
for RAID 0, 1, 5, 10, and Intel® Rapid
Recover Technology.
9 Intel® Smart Response and Intel®
Rapid Start
3
Technologies: Provides
SSD like performance with HDD capacity.
Dramatically improves response time
when a small capacity SSD is used in
conjunction with a large HDD.
10 (8
+
2) 10-channel Intel® High Denition
Audio
7
(7.1): Enables high-quality integrated
audio that rivals the performance of high-end
discrete solutions.
11 Dual Intel® Gigabit Ethernet LAN: Features
onboard 10 /100 /1000 Mb /s Ethernet LAN
connectivity.
12 Consumer infrared receiver and transmitter:
Supports receiving, learning, and emitting
capabilities, controls up to two additional CE
devices with your PC, and eliminates the need
for a USB CIR dongle.
13 Back-to-BIOS switch: Allows easy access to
the BIOS for easy overclocking
1
and recovery.
14 Post code decoder: Allows for display of post
codes for debug along with the included post
code quick reference card displaying critical
areas to help troubleshoot performance-
increase roadblocks.
15 Initialization and diagnostic LEDs: Provides
instant visible system feedback.
16 Exclusive voltage regulator heat sinks:
Provides reliable and silent cooling for extreme
Core, Graphics, and Memory performance
tuning.
17 100% Solid state capacitors and exclusive
Power Supervisor: Maximizes stability and
power for advanced performance tuning.
18 Tweaker switches: Power and reset switches
for overclocking
1
on the go, quick reset,
and power on.
19 ATX (9.6¨
×
11.6¨) Form Factor: ATX board
supports more fully featured tower designs.
20 Lead-free: Meets all worldwide regulatory
requirements for lead-free manufacturing.
7
3
17
18
19 20
11
®
Extreme Series
