User Guide for NUC8i5BEK, NUC8i3BEK
7
Attach and Use the VESA Bracket (Optional)

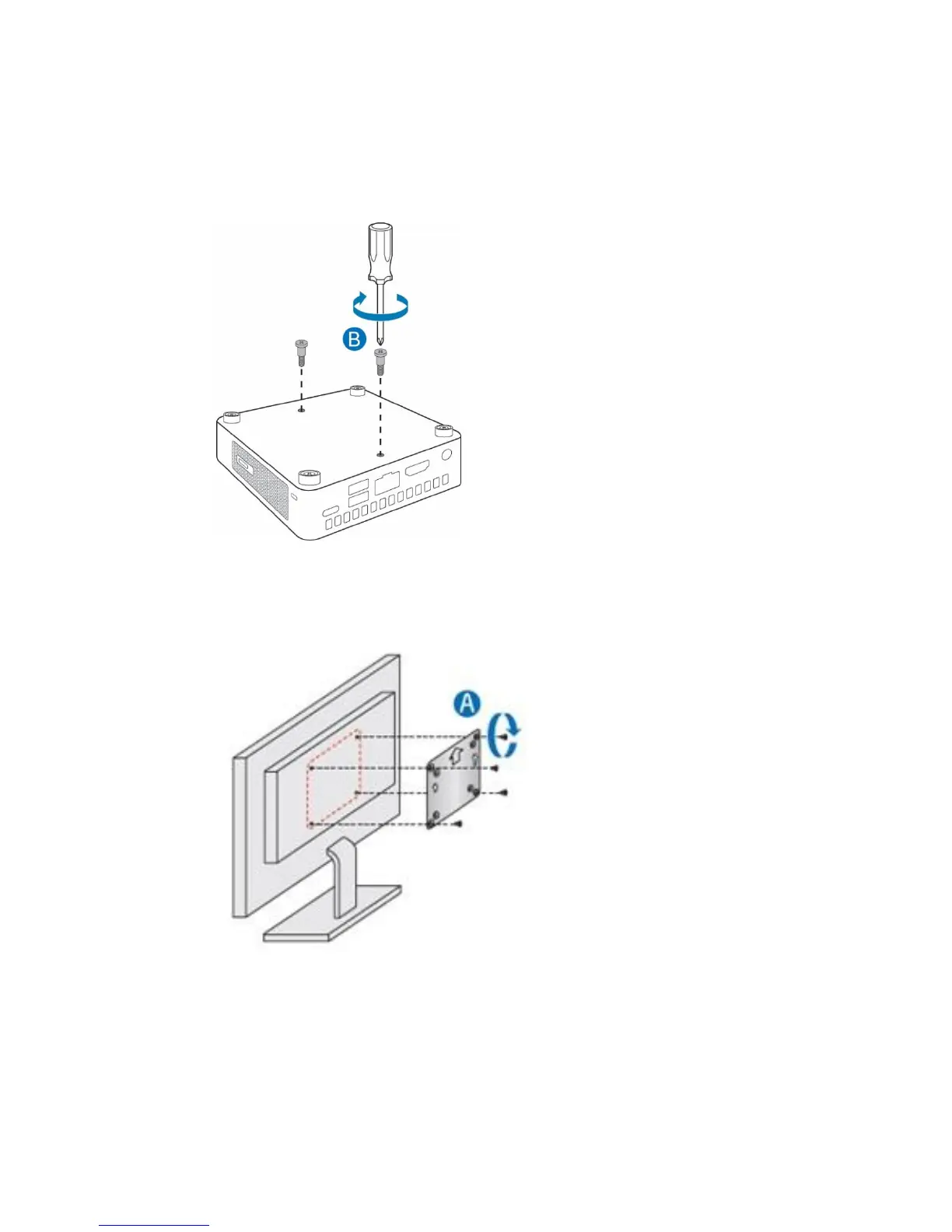

Follow these instructions to attach and use the VESA mount bracket:
1. Using the four small black screws that were included in the box, attach the VESA bracket to the
back of the monitor or TV.
2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intel NUC8i7BEK and is the answer not in the manual?

Intel NUC8i7BEK Specifications

General IconGeneral
Product CollectionIntel NUC
Code NameBean Canyon
Board NumberNUC8i7BEK
Number of Internal Drives Supported2
TDP28 W
DC Input Voltage Supported19V
Processor IncludedIntel Core i7-8559U
Processor Cores4
Processor Threads8
Processor Base Frequency2.7 GHz
Processor Max Turbo Frequency4.5 GHz
Intel® Turbo Boost Technology 2.0 Frequency4.5 GHz
Intel® Hyper-Threading TechnologyYes
Max Memory Size (dependent on memory type)32 GB
Max # of Memory Channels2
Max # of DIMMs2
ECC Memory SupportedNo
Integrated GraphicsIntel Iris Plus Graphics 655
# of Displays Supported3
Intel® Iris® Plus Graphics 655Yes
Graphics Base Frequency300 MHz
Graphics Max Dynamic Frequency1.2 GHz
Discrete Graphics SupportedYes
Total # of SATA Ports1
Max # of SATA 6.0 Gb/s Ports1
Integrated LANGigabit Ethernet
Number of Thunderbolt™ 3 Ports1
USB Ports6
USB 2.0 Ports Via Internal Header2
Serial Port via Internal HeaderNo
Consumer Infrared Rx SensorYes
HDMI Port Quantity1
Mini DisplayPort Quantity1
S/PDIF Out PortYes
Intel® Virtualization Technology for Directed I/O (VT-d)Yes
Intel® vPro™ Platform EligibilityNo
TPMNo
Intel® AES New InstructionsYes
USB Ports (Rear)4
Thunderbolt Ports1
Supported Operating SystemsWindows 10
Board Form FactorUCFF (4" x 4")
Internal Drive Form FactorM.2 2280, 2.5"
Cache8 MB
Memory TypesDDR4-2400
Graphics OutputHDMI 2.0a
WirelessIntel Wireless-AC 9560
Bluetooth5.0
USB Revision3.1
Storage InterfaceSATA, PCIe
Dimensions117 x 112 mm
Power Supply19V
