Rack Mount Kit Install Instructions (optional)
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 89
15. Attach inner rack rails (one per side) to chassis with four 6-32 screws.

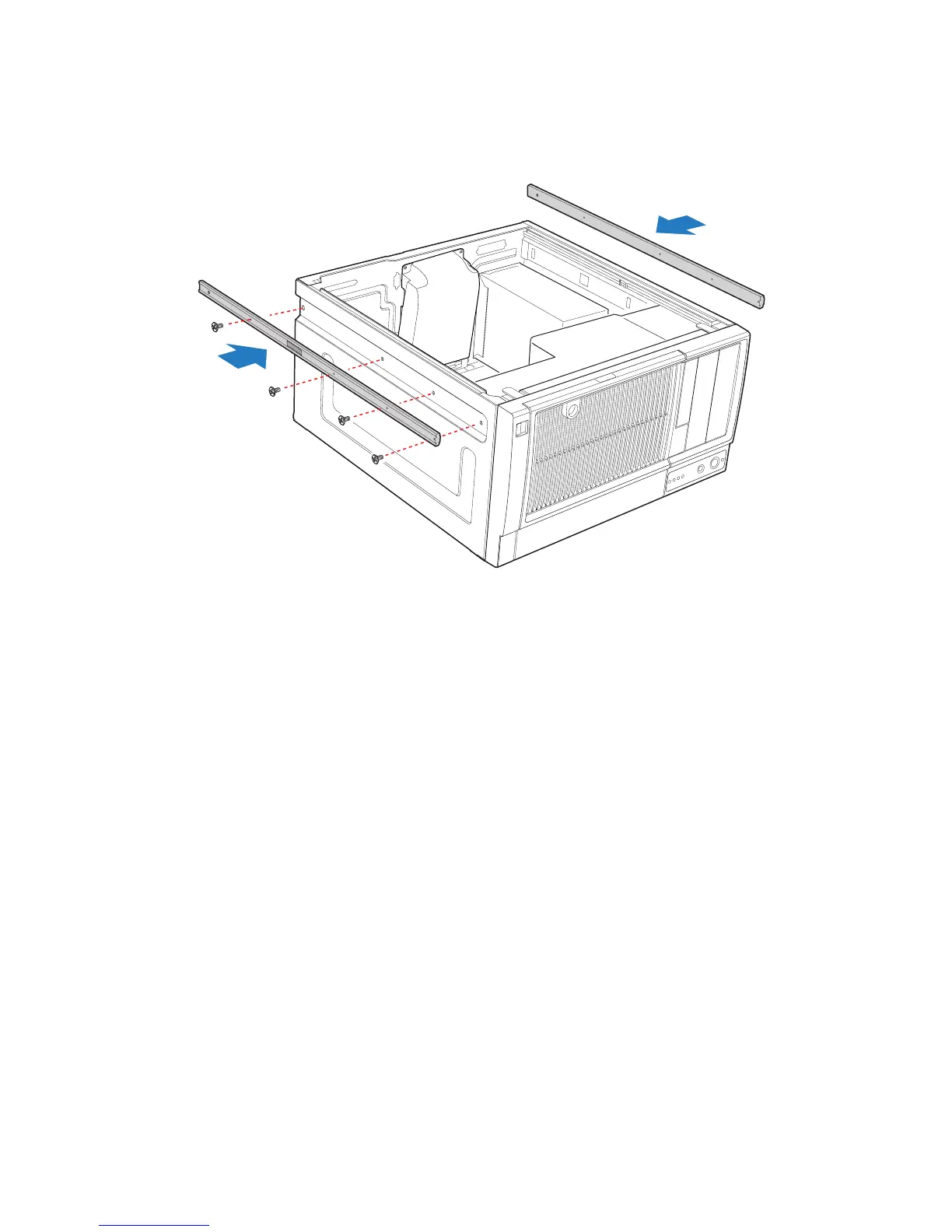

Figure 114. Attaching Inner Rack Rails to Chassis (DP/WS/BRP
configuration shown)
16. Attach outer rack rails to rack uprights. Ensure that the screws (two per outer rack rail;
see letter “A” in the following figure) pass through the rack upright (see letter “B”),
and the outer rack rail (see letter “C”).
AF000288
To Next Page
