Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 19
Removing and Installing the Processor Air Duct
Warning: Always operate your server chassis with the processor air duct in place. This air duct is
required for proper airflow within the chassis.
Warning: The processor air duct must only be used with active thermal solutions.
Note: The following removal and install procedures are not applicatible to the UP configuration
of the Intel
®
Entry Server Chassis SC5299-E. The processor air duct on the UP
configuration is built into the left side cover. Removal (or installation) of the left side
cover will also remove (or install) the attached ductwork..
When adding or replacing a processor, first remove the processor air duct, and then refer
to your server board User Guide for instructions on processor installation and removal.
Return to these instructions to reinstall the processor air duct after you have installed your
processor and heat sink.
Removing the Processor Air Duct
Note: The following procedure is not applicable to the UP configuration of the Intel
®
Entry
Server Chassis SC5299-E. The processor air duct on the UP configuration is built into the
left side cover. Removal of the left side cover will also remove the attached ductwork.
1. Observe the safety and ESD precautions listed in Appendix A, “Safety Information”.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the left side cover. For instructions, see “Removing the Left Side Cover”.
4. Loosen the two mounting screws and remove the processor air duct.

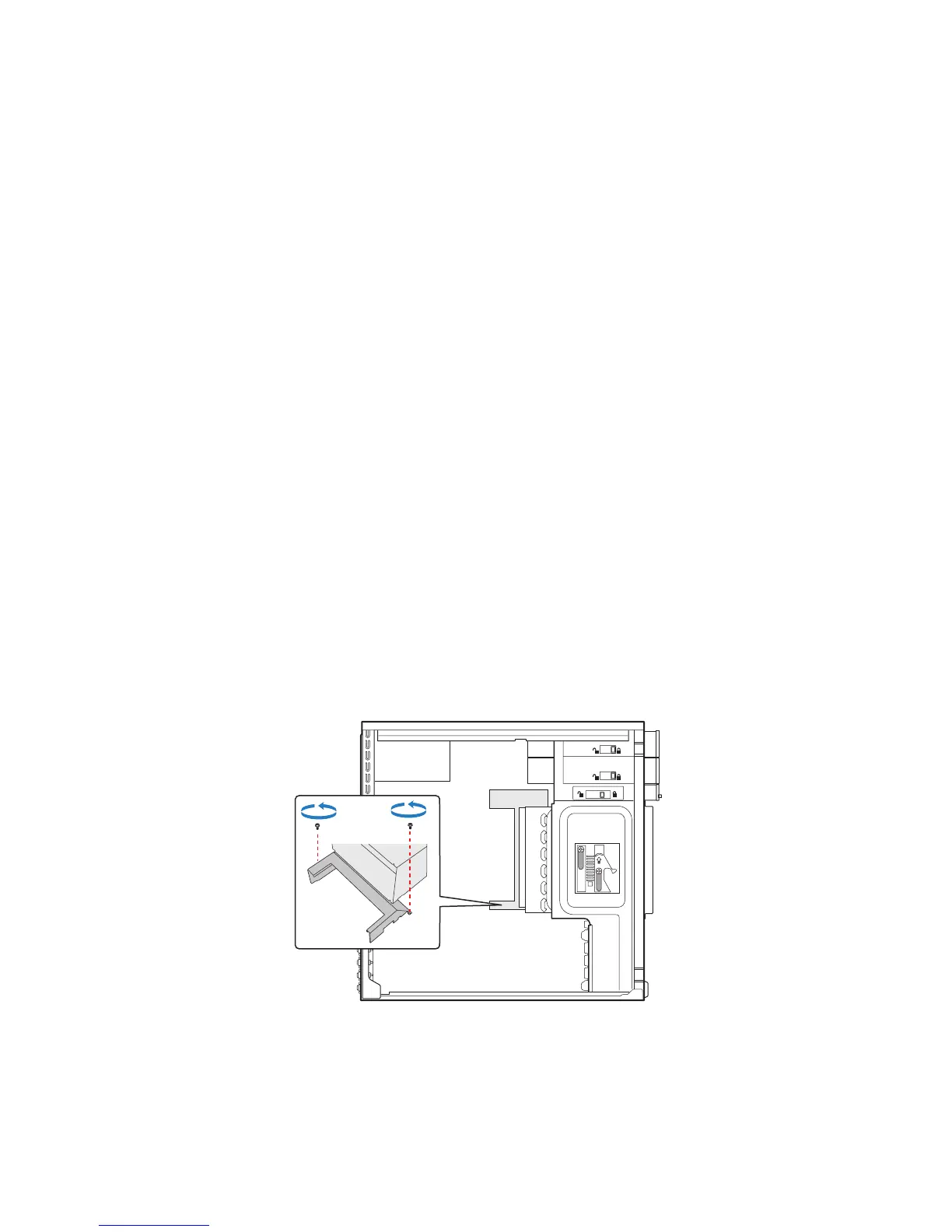

Figure 16. Removing Processor Air Duct
5. Save the screws. You will need them to re-install the processor air duct.
TP01136
