Hardware Installations and Upgrades
24 Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide
14. Slide the fixed hard drive cage into the drive bay slot of the chassis. You should hear a
click when the blue plastic retention mechanism locks into place.

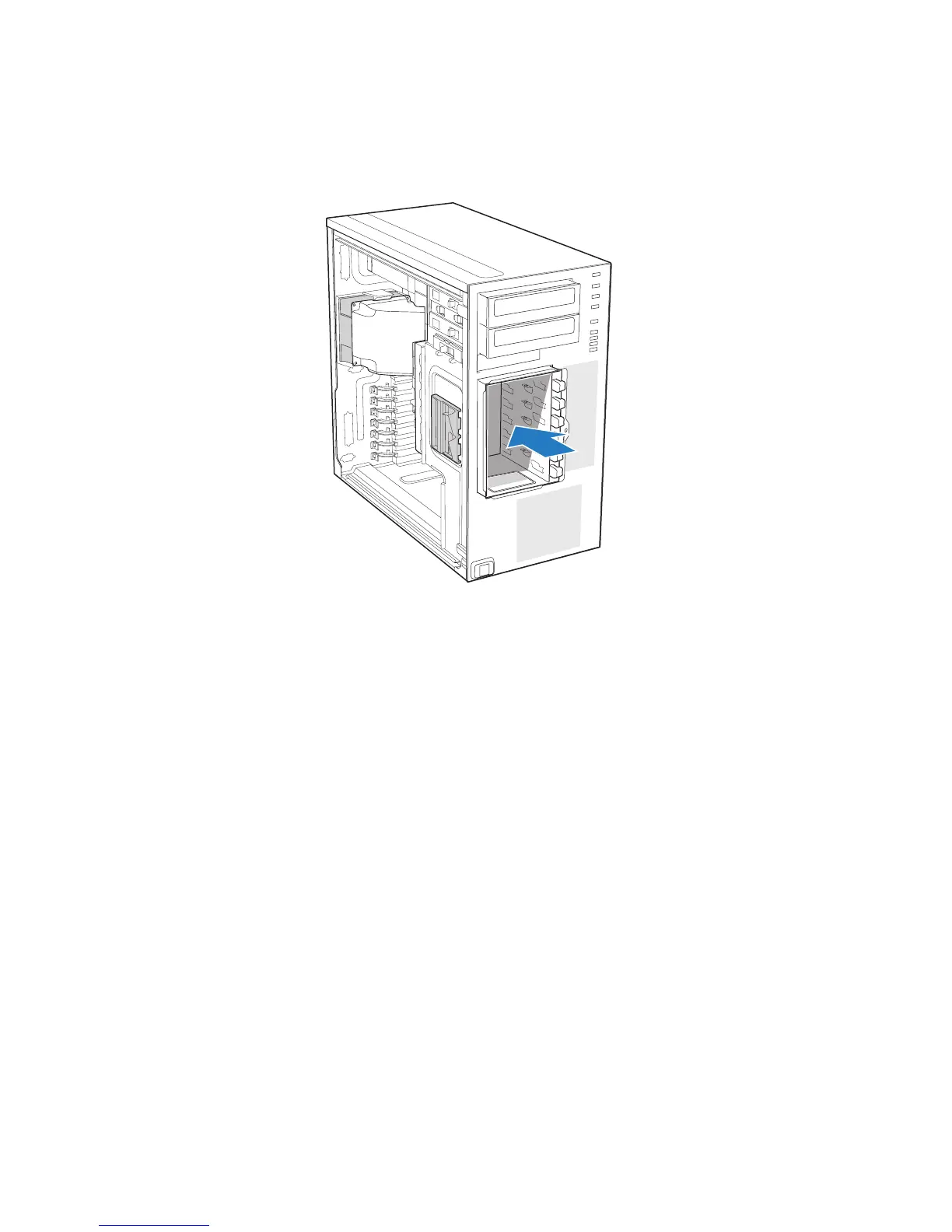

Figure 22. Inserting Fixed Hard Drive Cage into Chassis (DP/WS/BRP configuration
only)
15. If previously removed, install fixed hard drives and connect power and data cables.
For instructions, see “Installing a Fixed Hard Drive”.
TP02039
