Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 29
9. Pull the drive latch forward to unlatch the drive locking assembly for the drive bay
you want to install a hard drive in.

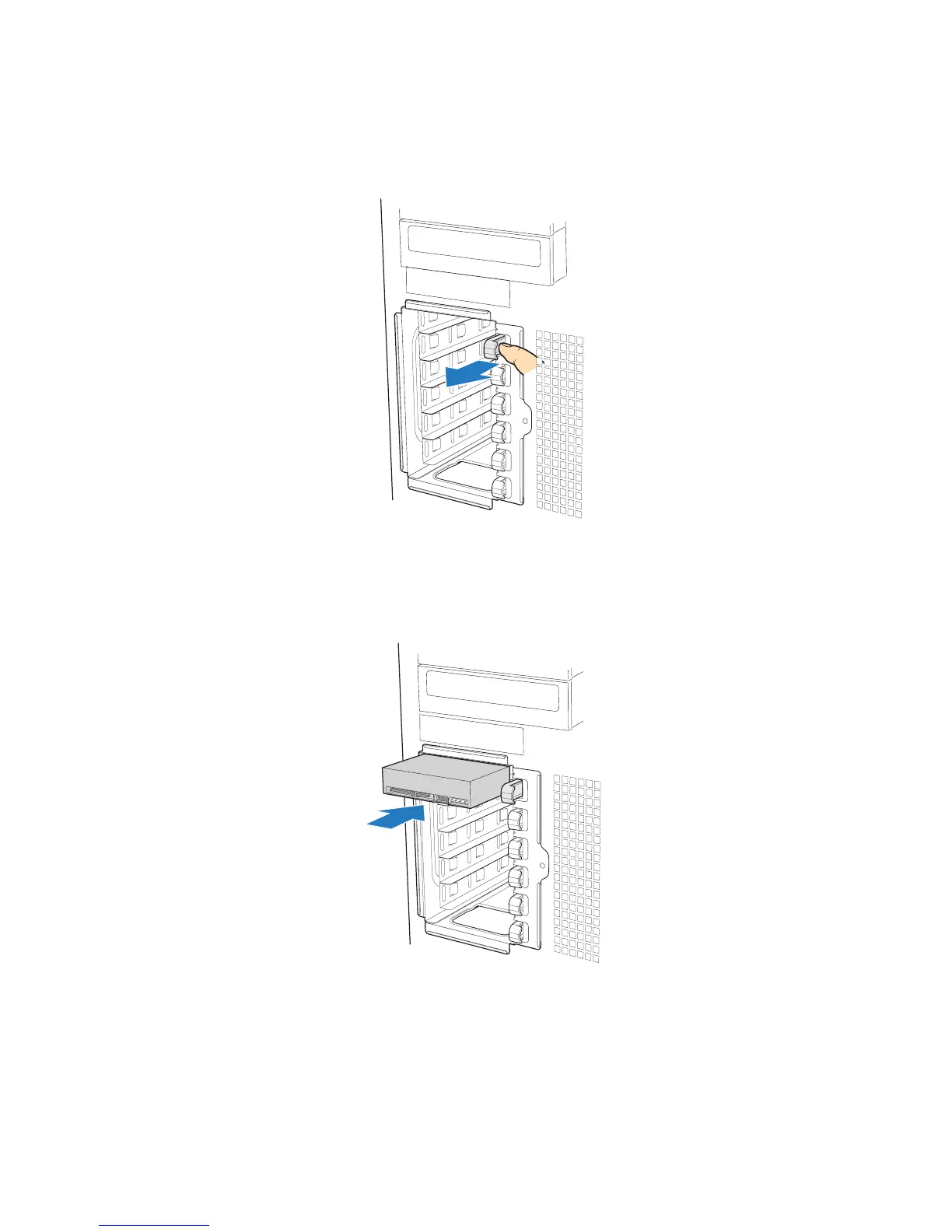

Figure 28. Unlatching Drive Latch
10. Insert fixed hard drive into drive bay and push until it stops. Ensure that the power and
data connector end of the hard drive is facing forward
Figure 29. Inserting Hard Drive into Drive Cage
AF000318
AF000319
To Next Page
