Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 33
5. Loosen thumb screw (see letter “A” in the following figure). Apply slight pressure to
right side of drive bay access door and swing door outward (see letter “B”).

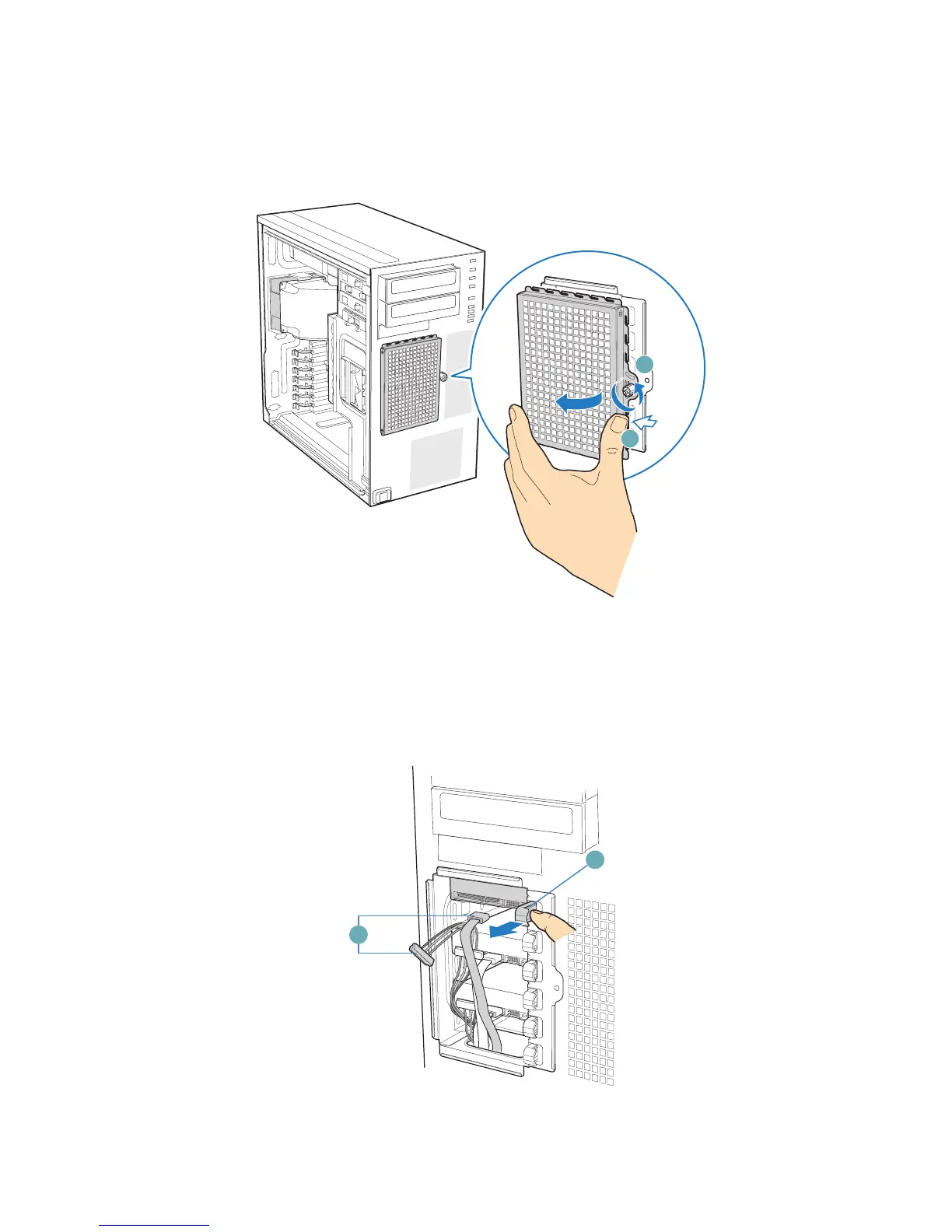

Figure 35. Removing Drive Cage EMI Shield from Chassis (DP/WS/BRP configuration
shown)
6. Disconnect the data and power cables from the hard drive to be removed (see letter
“A” in the following figure). Pull the drive latch forward (see letter “B”) to unlatch
the drive locking mechanism for the hard drive you want to remove.
TP01869
A
B
AF000430
A
B
