Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 39
3. Remove the left side cover. For instructions, see “Removing the Left Side Cover”.

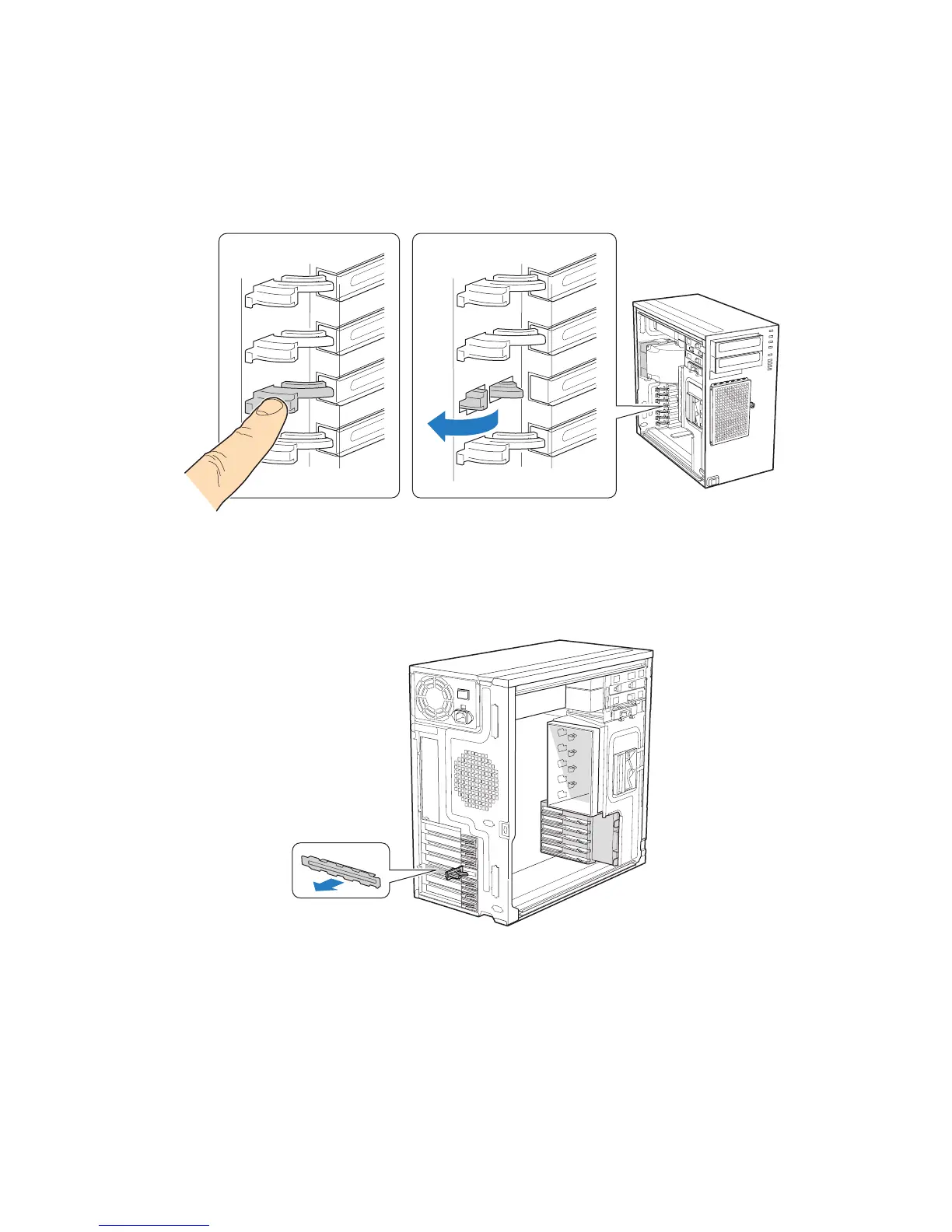

4. Open the back panel PCI Add-in Card Retention Device by pressing open from the
inside of the chassis.
Figure 43. Opening PCI Add-in Card Retention Device (DP/WS/BRP configuration
shown)
5. Remove the PCI slot shield, if it has not already been removed, by pushing the shield
out from the inside of the chassis.
Figure 44. Removing PCI Slot Shield
6. Remove a PCI add-in board from its protective wrapper. Be careful not to touch the
components or gold-edge connectors. Place board on an anti-static surface. Record the
type and serial number of the add-in board in your equipment log. Set jumpers or
switches on the board according to the manufacturer’s instructions.
TP02049
TP01744
