6. Once the fixed power supply is loose, push the power supply against the blue locking
mechanism and then lift the power supply out of the chassis.

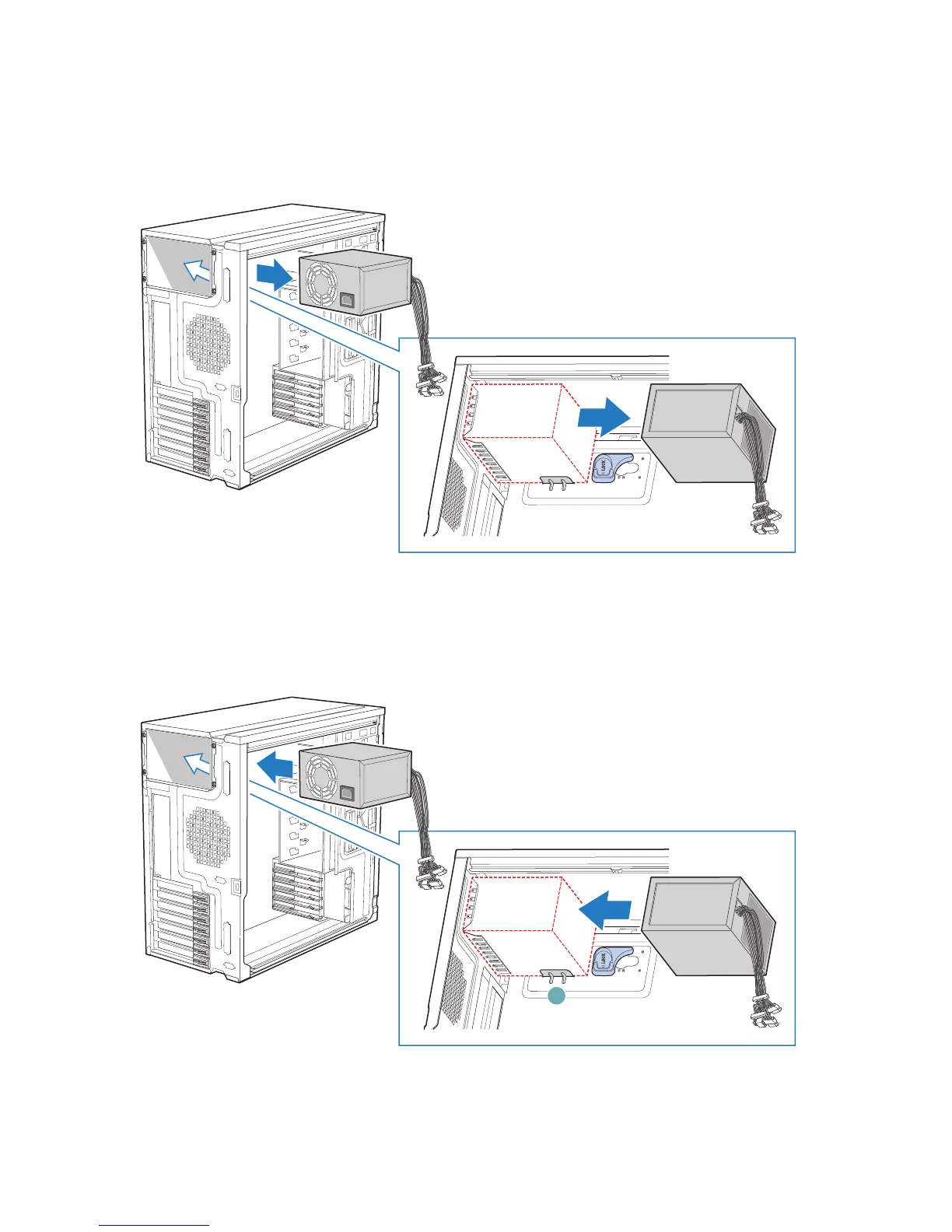

Figure 61. Removing Fixed Power Supply from Chassis
7. Insert new fixed power supply in chassis. Ensure that the blue locking mechanism is
still in the open position. Make sure that the new fixed power supply rests on the small
metal shelf on the side wall of the chassis (see letter “A” in the following figure).
Figure 62. Inserting Fixed Power Supply in Chassis
TP01754
TP01753
A
