Replacing a Hot Swap Power Supply Cage (BRP
configuration only)
Warning: Hazardous conditions, power supply: Hazardous voltage, current, and energy levels are
present inside the power supply. There are no user-serviceable parts inside it; servicing of
the power supply should be done by technically qualified personnel.
1. Observe the safety and ESD precautions listed in Appendix A, “Safety Information”.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the left side cover. For instructions, see “Removing the Left Side Cover”.
4. Press up on green latch (see letter “A”) while pulling on handle to remove hot swap
power supply module from chassis.

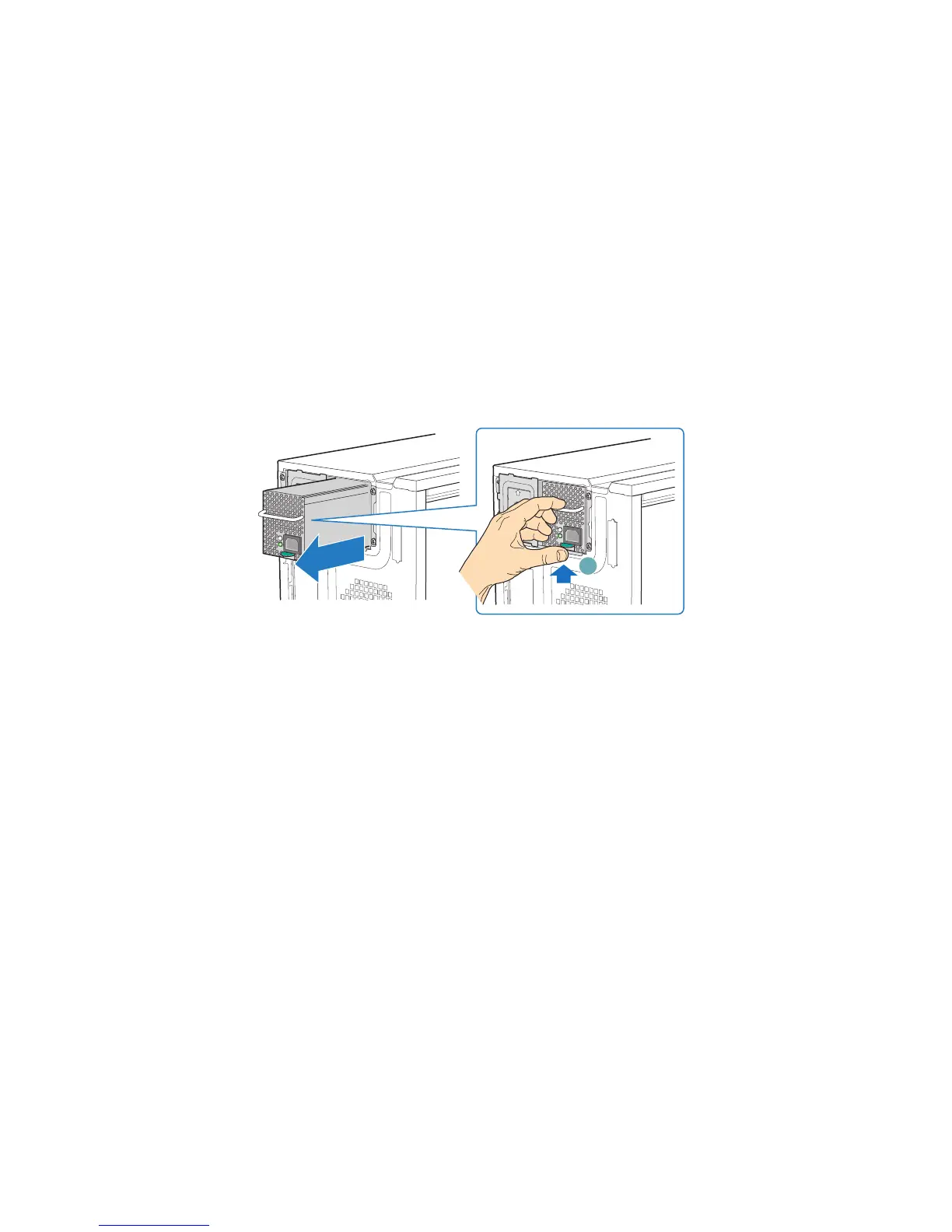

Figure 68. Removing Hot Swap Power Supply Module
5. Remove second (redundant) hot swap power supply module (or filler panel), if one is
present.
6. Disconnect all internal power cables from chassis components and server board.
TP01765
UP
A
UP
To Next Page
