Hot Swap Drive Cage Upgrade Install Instructions (optional)
72 Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide
d. If you are installing a SAS/SATA hot swap backplane with expander
Warning: SATA controllers cannot be used with an expander backplane.
i. Connect the two power cables (see letter “A” in the following figure) to the
power cable connectors on the SAS/SATA backplane.
ii. Connect a SAS/SATA data cable (see letter “B”) to each appropriate SAS/
SATA connector on the SAS/SATA backplane.
iii. Connect the IPMB cable (see letter “C”).
iv. Connect the fan power to the server board. For the Intel® Server Board
S5000VSA, use FAN1. For other Intel® server boards, refer to the Quick Start
User’s Guide that came with the server board.

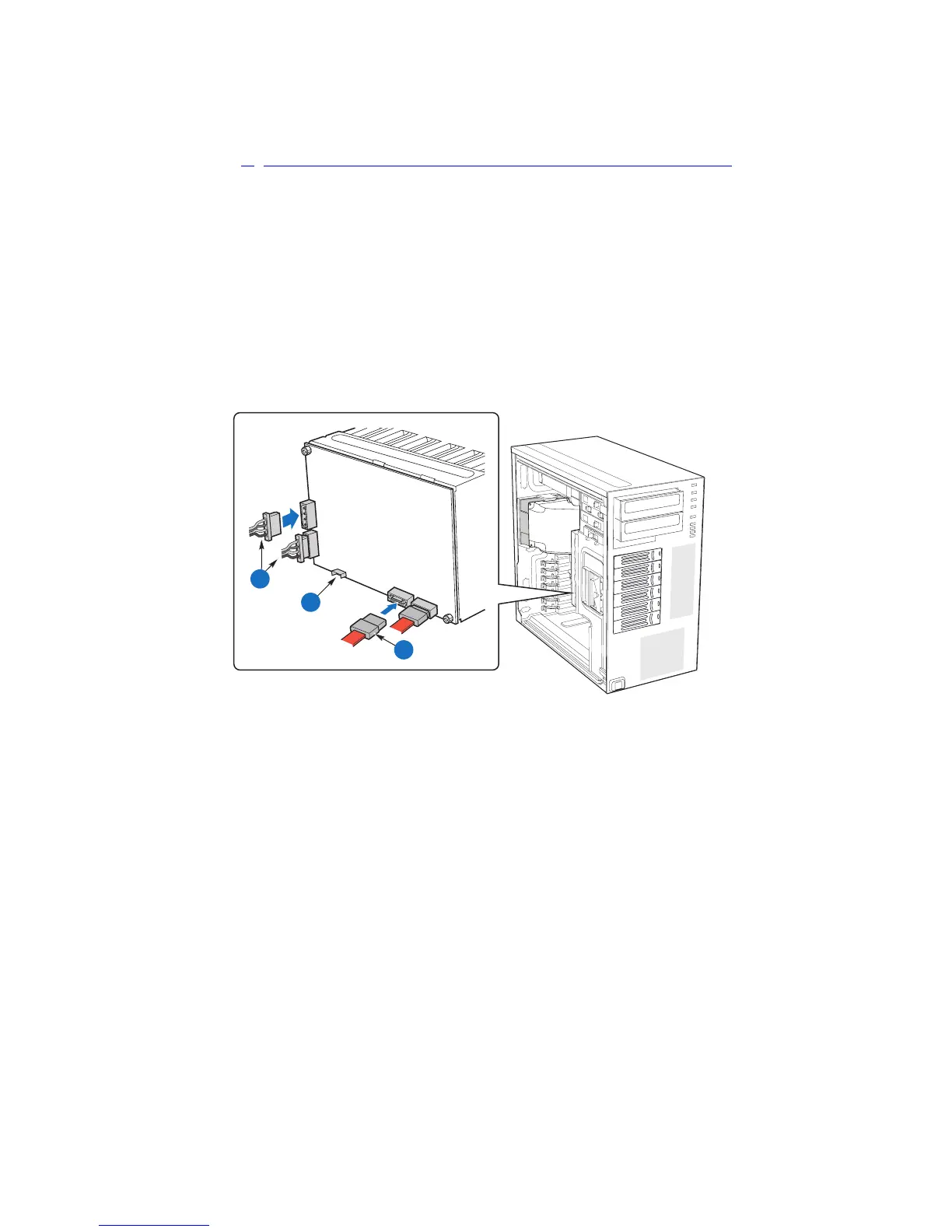

Figure 89. Making Six-drive Hot Swap Drive Cage Backplane with Expander
Connections (DP/WS/BRP configuration shown - fan bracket not shown in the
illustration for clarity)
18. Install the hot swap hard drives. For instructions, see “If you are installing a six-drive
SCSI hot swap drive cage:”.
19. Install the front bezel assembly. For instructions, see “Installing the Front Bezel
Assembly”.
20. Install the left side cover. For instructions, see “Installing the Left Side Cover”.
21. Plug all peripheral devices and the AC power cable into the server.
6-Drive Expander HS Backplane
A
C
B
SAS 0
SAS 1
AF00448
