Intel S5520HC Spares Parts List & Configuration Guide

1
5

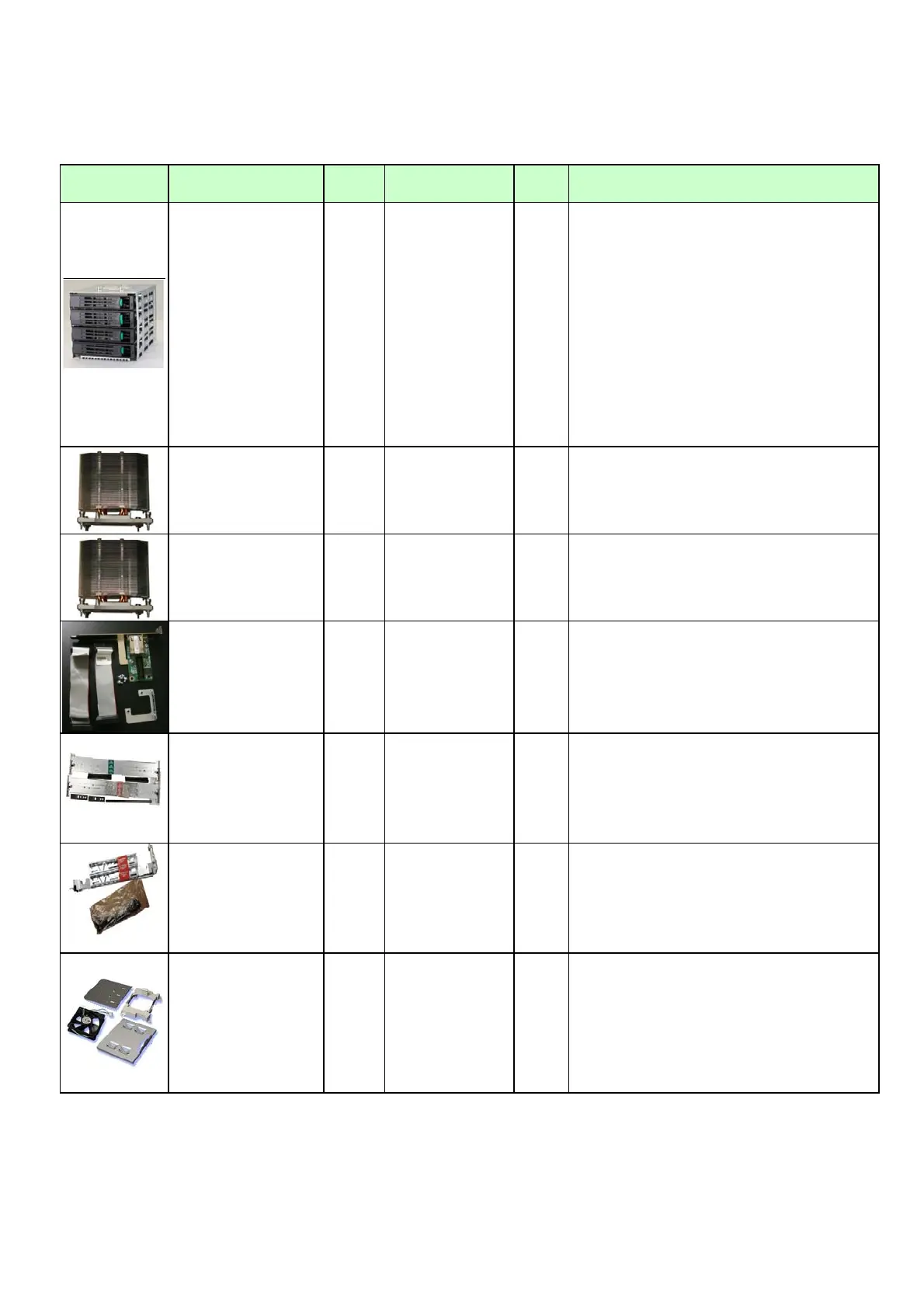

Picture Product Code MM # UPC MOQ Description
AXX4DRV3GR
900404 00735858207645 1
4-drive hot-swap non-expanded, SATA/SAS
backplane assembly cage kit for Intel
®
Server
Chassis SC5600 family. Requires 4 SAS ports
from RAID card for SAS (or SATA) 3.5” hard
drive support or 4 SATA ports from baseboard
or RAID card for SATA 3.5” hard drive support.
Includes: Backplane board, 4 drive carriers, 4
data cables, 4-drive bay, IPMB cable, SES
cable and SGPIO cable, common installation
guide, SATA/SAS configuration label.
Not supported with Intel
®
Server Chassis
SC5600BASE, SC5650DP, SC5650BRP, or
SC5650WS
FXXRGTHSINK
901335 00735858206273 2
Special tower heat sinks required for Intel
®
Server Chassis SC5600LX, Ship with 2 heat
sinks in single package
FXXRGTHS
904992 00735858212809 2
Special tower heat sinks required for Intel
®
Server Chassis SC5600LX. Each heat sink is
individually packaged and labeled.
AXXRMM3
900961 00735858206570 1 Intel
®
Remote Management Module 3 for Intel
®
Server Board S5520HC, S5500HCV, and Intel
®
workstation board S5520SC.
ARIGRACK 88545
9
00735858164603 1 Pedestal to rack conversion kit for Intel
®
Server
Chassis SC5600. Includes: hinge cover; rack
handles, intrusion switch jumper, new rail kit
assembly, rack hardware kit, icon label,
installation guide
AXXCMA3U7U 862119 00735858168533 1 Universal 3U though 7U Rack Mode Cable
Management Arm (CMA). Requires
ARIGRACK.
APPTHSDBKIT 901181 00735858207676 1 Hot-swap drive mounting Kit for Intel
®
Server
Chassis SC5650, Includes 1 cooling fan, 1 fan
holder and 2 Hot-swap cage brackets.
Note: This mounting kit is required when using
6-bay Hot-swap Hard Disk Cage in SC5650
Chassis. This kit should be used with
AXX6DRV3GR.
