Intellinet 506533 Instructions

2
ENGLISH
Gigabit Ethernet Media Converter English
Thank you for purchasing the Intellinet Gigabit Ethernet Media
Converter. Media converters connect two Ethernet networks over
a longer distance using fiber optic cable.
MODELS
• 506533:
Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1800 ft.)
•507349:
Gigabit Ethernet Single Mode Media Converter
10/100/1000Base-T to 1000Base-LX (SC) Single-Mode, 20 km
(12.4 mi)
CONNECTIONS
TwistedPair–RJ45
Connect the UTP port of the media converter to an RJ45 port on
the network; e.g., to an Ethernet switch. Cat5e or better cabling is
recommended.
Fiber Optic

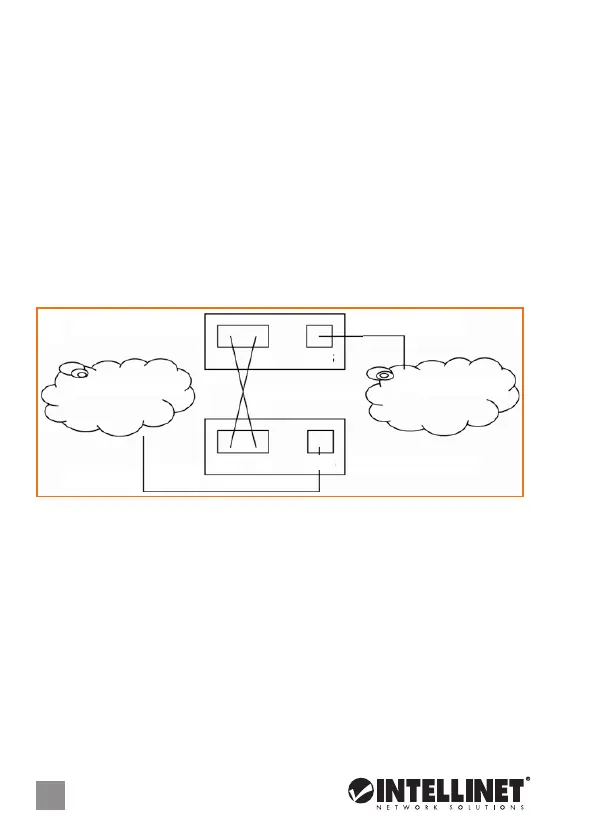

As shown above, two fiber optic cables need to be connected
between two ideally identical media converters. Make a
connection from Media Converter 1 TX to Media Converter 2 RX,
and from Media Converter 1 RX to Media Converter 2 TX.
Media Converter 1
Media Converter 2
RJ45
RJ45
TX
TX
RX
RX
OPTICAL FIBER
ETHERNET 1
ETHERNET 2
Twisted Pair
Twisted Pair
