Interfire D900.1 - Page 7

5

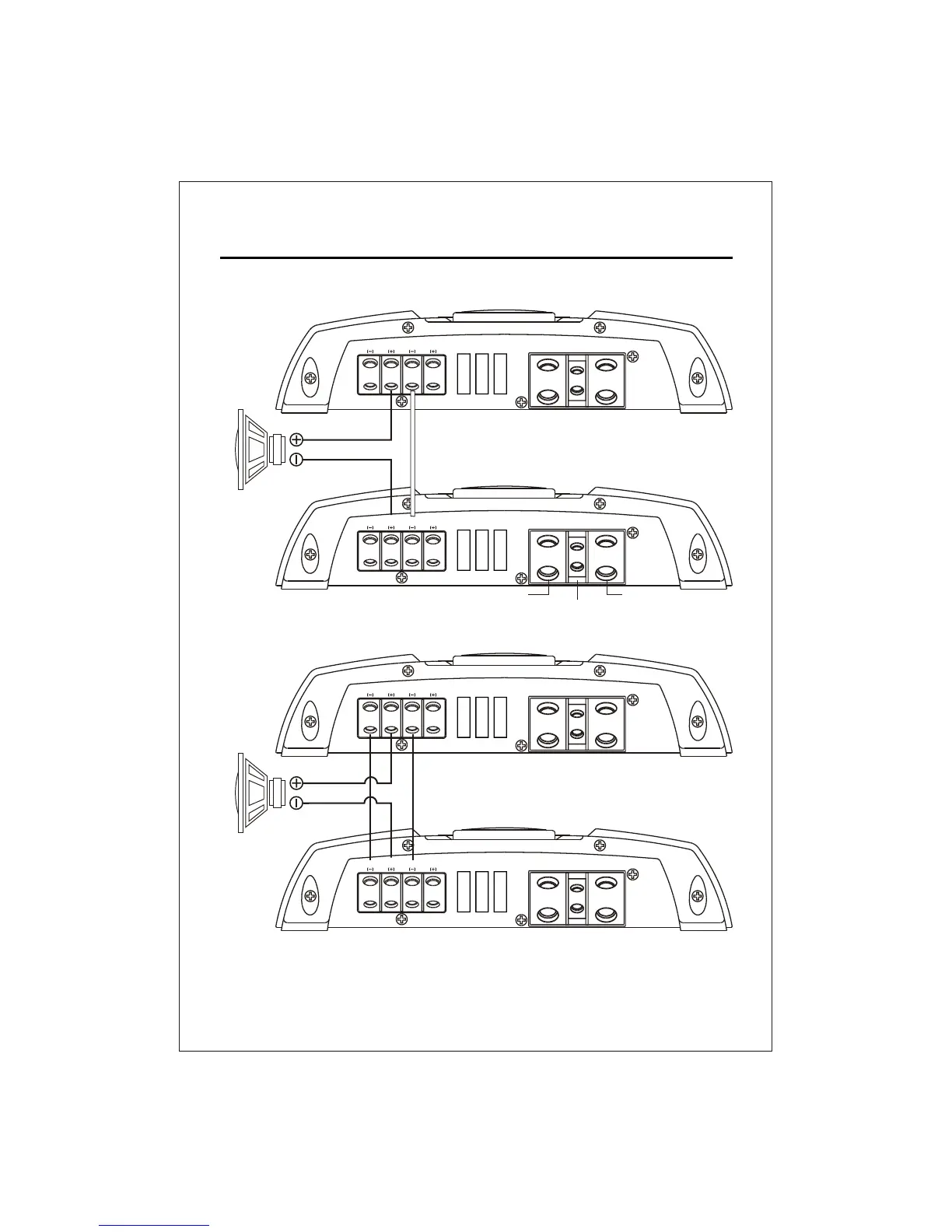

MONO BRIDGED
Master
Amplifier
Slave
Amplifier
(OPTION) TWO AMPLIFIER/ ONE SUBWOOFER (SINGLE VOICE COIL)CONFIGURATION
POWER
GND+12V REM
ON
PROTECT
SPEAKER FUSE
POWER
GND+12V REM
ON
PROTECT
SPEAKER FUSE
CHASSIS GROUND
REMOTE TURN ON
BATTERY VIA FUSE
Using a lead wire of 8 gauge or
bigger connect from the master
Amp's negative(-) speaker
terminal to the slave Amp's
negative(-) speaker terminal.
Master
Amplifier
Slave
Amplifier
POWER
GND+12V REM
ON
PROTECT
SPEAKER FUSE
POWER
GND+12V REM
ON
PROTECT
SPEAKER FUSE
Recommend : Competition Only
