Pilot Coupler Conversion
Your N scale AC-8/10/11/12 comes with a pilot coupler conversion allowing for issue free double-headed
operation. The extended coupler can be exchanged for a short shank coupler by following these simple steps:

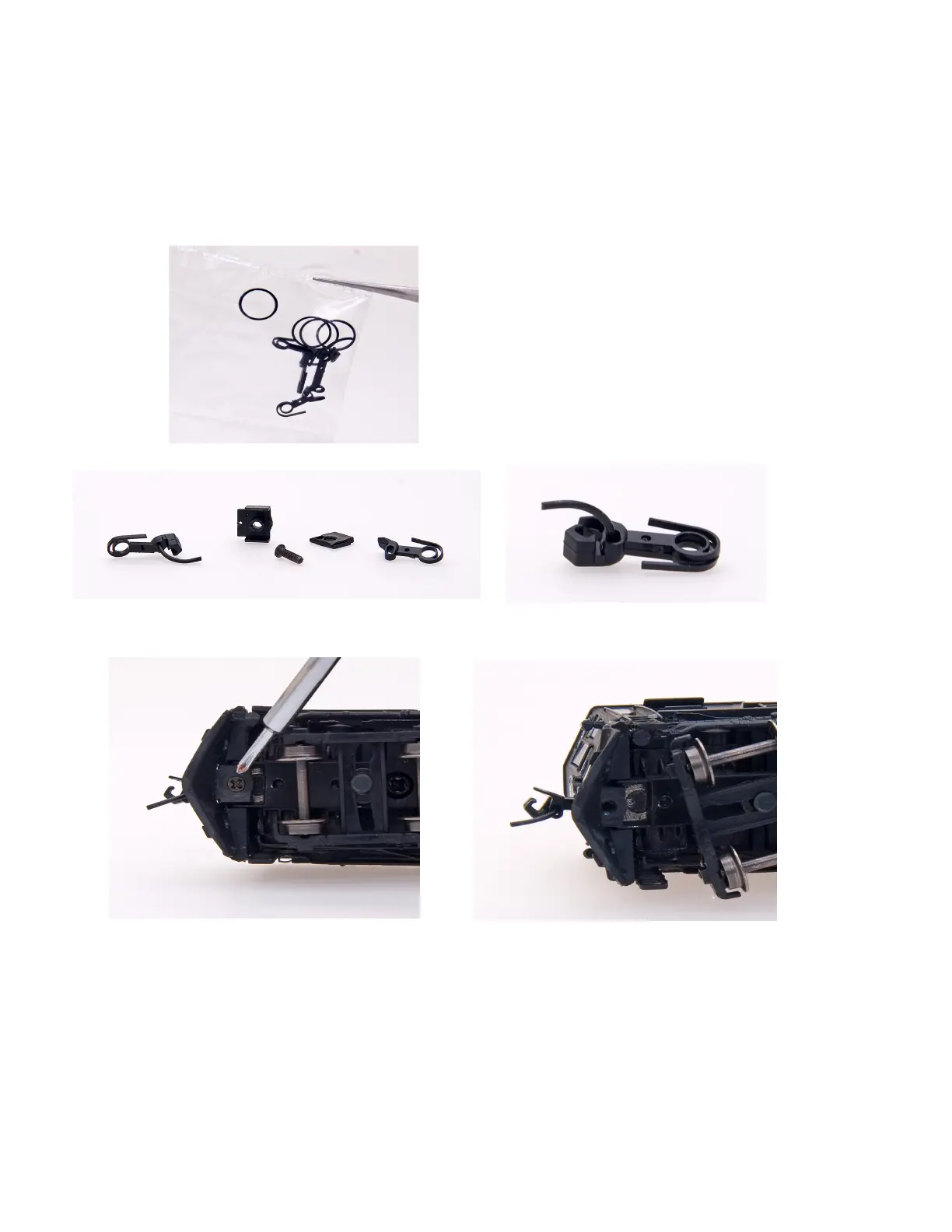

1.Included in your locomotive presentation box is a packet containing replacement couplers and traction tires.
2.Remove the coupler from the package and assemble as shown.
3.Remove the coupler mounting screw and slide the coupler out the front of the pilot.
4.Assemble the coupler in the box and reinstall by sliding the coupler into the front. Tighten the screw to hold
the coupler in place.
