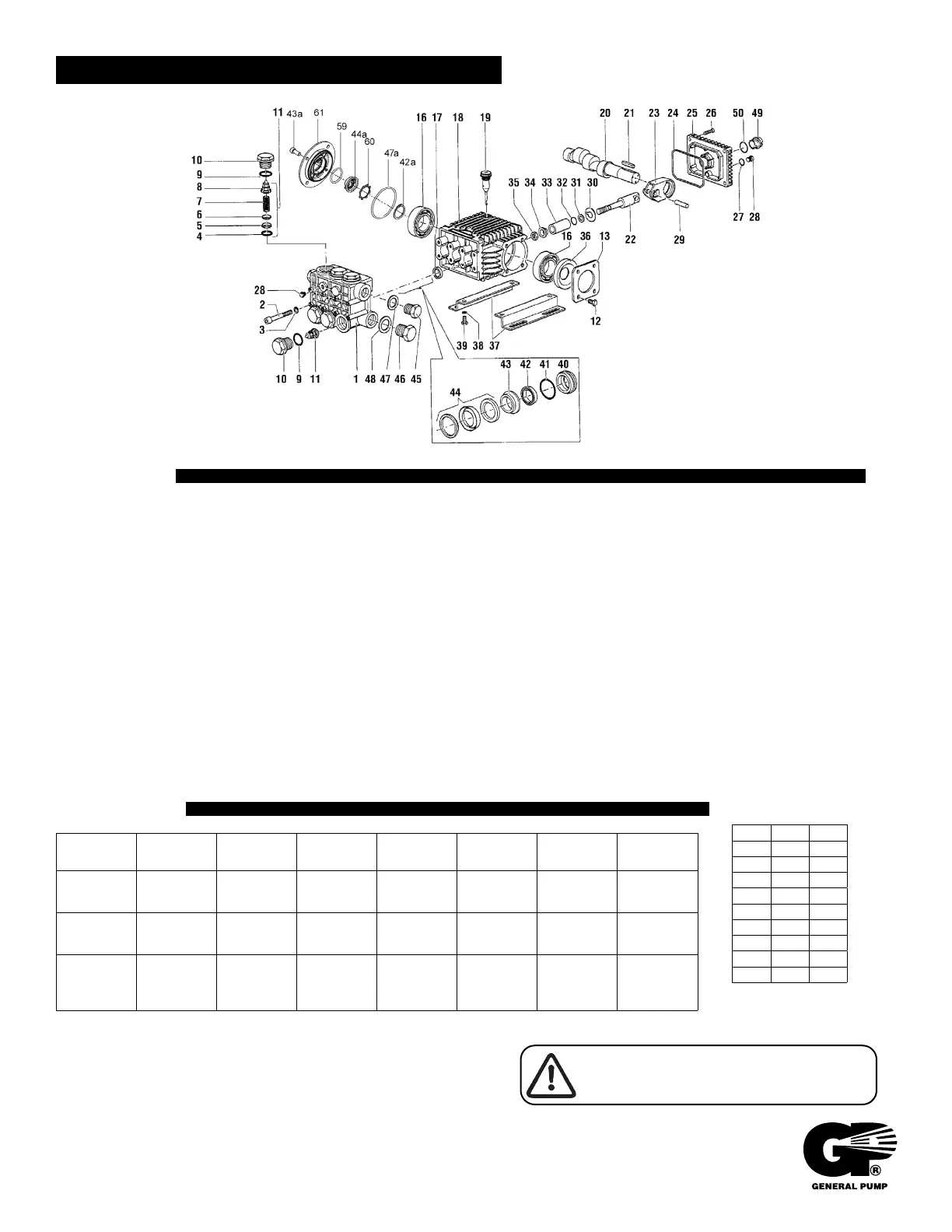

PARTS LIST
REPAIR KITS
ITEM PART NO. DESCRIPTION QTY.
1. 63120041 Manifold, 15 mm 1
63120341 Manifold, 18 mm 1
2. 99319200 Screw, M8 x 65 8
3. 96701400 Lockwasher, M8.4 8
4. 701115 O-ring 6
5. 36200366 Valve Seat 6
6. 36711501 Valve Plate 6
7. 94737600 Spring 6
8. 36202551 Valve Cage 6
9. 701002 O-ring 6
10. 98222600 Valve Cap 6
11. 36711501 Valve Assembly 6
16. 91833100 Ball Bearing, Premium 2
17. 90159500 Oil Seal 3
18. 63010022 Crankcase 1
19. 98210300 Oil Dip Stick 1
20. 63021865 Crankshaft, 13 mm 1
21. 91489200 Key 1
22. 63050066 Plunger Guide 3
23. 63030022 Connecting Rod 3
ITEM PART NO. DESCRIPTION QTY.
24. 90392000 O-ring, Cover 1
25. 63160022 Rear Crankcase Cover 1
26. 99183700 Screw, M6 x 14 4
27. 701013 O-ring 1
28. 98204100 Plug, 1/4” G 2
29. 97733500 Connecting Rod Pin 3
30. 96707500 Flinger Washer 3
31. 660024 Anti-extrusion Ring 3
32. 701009 O-ring 3
33. 52040009 Ceramic Plunger, 15mm 3
44040109 Ceramic Plunger, 18mm 3
34. 44211570 Bushing 3
35. 92221500 Nut, M8 3
36. 90164100 Oil Seal 1
37. 50200074 Rail 2
38. 96701600 Lockwasher, M8 4
39. 99303700 Screw, M8 x 16 4
40. 63080070 Seal Retn’r, 15mm 3
63080170 Seal Retn’r, 18mm 3
41. 90360800 O-ring 3
ITEM PART NO. DESCRIPTION QTY.
42. 90260800 Seal, LP,15mm 3
90265000 Seal, LP,18mm 3
42a. 90063500 Stop Ring Ø 25 1
43. 63216070 Int. Ring,15mm 3
63216170 Int. Ring,18mm 3
43a. 99183700 Screw M6x14 8
44. 90261200 Packing Assy,15mm 3
90265500 Packing Assy,18mm 3
44a. 53210851 Oil Level Indicator 1
45. 98210000 Plug, 3/8” G 1
46. 98217600 Plug, 1/2” G 1
47. 96738000 Washer, M17.5 1
47a. 90389800 O-ring Ø 56.82x2.62 1
48. 96751400 Washer, M21.5 1
49. 63210051 Oil Level Indicator 1
50. 90405100 O-ring 1
59. 90385900 O-ring Ø 25.07x2.62 1
60. 90067100 Stop Ring 1
61. 58150122 Side Cover 1
TX Series “63”
KIT NO.
K123 K124 K159
K160 or K161
(15mm) (18mm)
K162 or K163
(15mm) (18mm)
K164 or K165
(15mm) (18mm)
K166 or K167
(15mm) (18mm)
ITEM NO’s
INCLUDED
IN KIT
4, 5, 6, 7, 8 (11) 9, 10 17 42, 44 40 43
40, 41, 42,
43, 44
NUMBER OF
ASSEMBLIES
IN KIT
6 6 3 3 3 3 1
NUMBER OF
CYLINDERS
KIT WILL
SERVICE
3 3 3 3 3 3 1
Pos. Ft/lb Nm
2 14.7 20
10 95.9 130
12 7.3 10
26 7.3 10
28 14.7 20
35 11.0 15
39 14.7 20
45 29.4 40
46 29.4 40
* Decrease torque by 20%
if threads are lubricated
TORQUE SPECS*
GENERAL PUMP 1174 Northland Drive • Mendota Heights, MN 55120
Phone: 651.686.2199 • Fax: 800.535.1745 • e-mail: sales@gpcompanies.com • www.generalpump.com
Ref 300651 Rev. E
08-22
GENERAL PUMP
A member of the Interpump Group
* 53150001 Oil Level Indicator Assembled W/O Screws and O-ring
WARNING: This product can expose you to chemicals including
lead, which is know to the state of California to cause cancer and
birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
WARNING: High Pressure Systems require a primary pressure regulating
device (i.e. regulator, unloader) and a secondary pressure relief device
(i.e. pop-o valve, relief valve). Failure to install such relief devices
properly could result in personal injury or damage to pump or property.
GP does not assume any liability or responsibility for the operation of the
user’s high pressure system.
