IntesisHome® PA-AC-WIFI-1A
5
INSTALLATION GUIDE

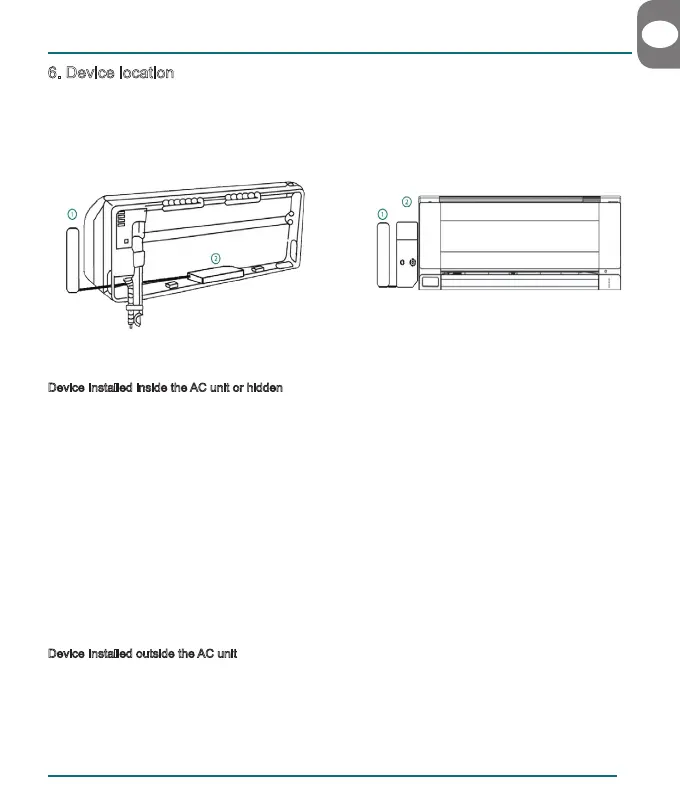

6. Device location
Device Installed inside the AC unit or hidden
It allows a neater installation as the user cannot see the device during normal operation. The following points
need to be taken into account if the device is installed inside the AC.
• The indication LED and the button are not going to be accessible by the user.
o The LED is an indicator of the status of the device both during connection and normal behavior.
o The button is used to recongure the device if the Access Point (AP) conguration changes. If this
happens the user will need to access the inside of the Air Conditioner.
• If there is not enough space for installation inside the AC unit the following actions can be performed:
o If it is due to water pipes, change the side of the AC where they are connected to get more space
inside the AC unit.
o Otherwise the support surface can be removed (Figure 1)
Device Installed outside the AC unit
The following points need to be taken into account if the device is installed outside the AC.
• The device can be xed both using screws of double side tape.
• The cable lid has several options in order to direct the cables to the desired direction.
IntesisHome device can be both installed inside or outside the AC units.
In order to obtain detailed description of the installation possibilities, please see the document at
www.intesishome.com/docs/PA-AC-WIFI-1A_Install_Sketch.pdf
Figure 3
1. External antenna
2. IntesisHome device
Inside the AC unit Outside the AC unit
EN
