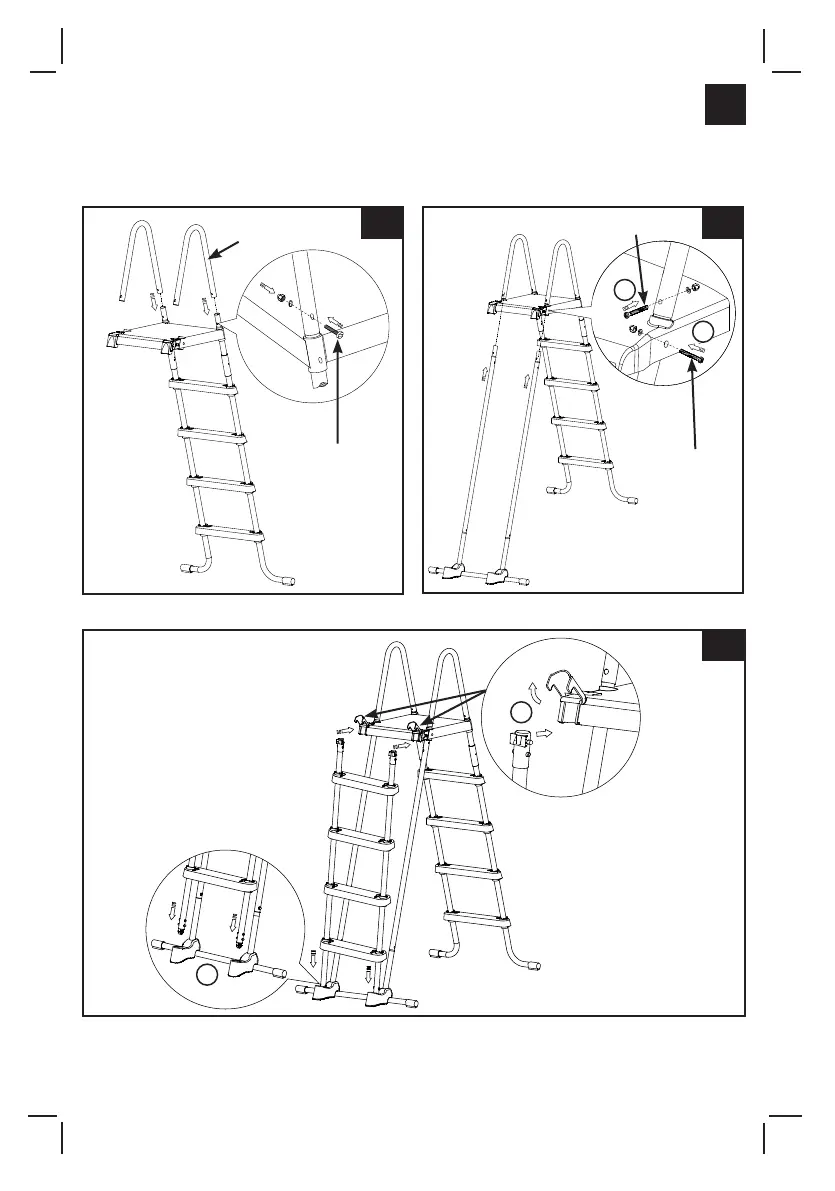

5. U-SHAPED TOP RAIL INSTALLATION
(refer to figures 5.1 through 5.2):
IMPORTANT:
One side at a time. Do not attach the other side of the ladder until the
U-shaped top rail is installed. Make sure all nuts and bolts are securely tightened. Do not
fully tighten fasterners until last assembly operation.
6. SIDE B LEGS INSTALLATION
(refer to figure 6):
LADDER SETUP (continued)
1
B
A
4 (M6*35)
5.1
1
6
2
B
A
C
C
5 (M6*40)
4 (M6*35)
5.2
1
2
