(190IO) 36", 42" 1-SECTION POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 05/29/2012
190A
SAVE THESE INSTRUCTIONS
Page 6
English
SETUP INSTRUCTIONS

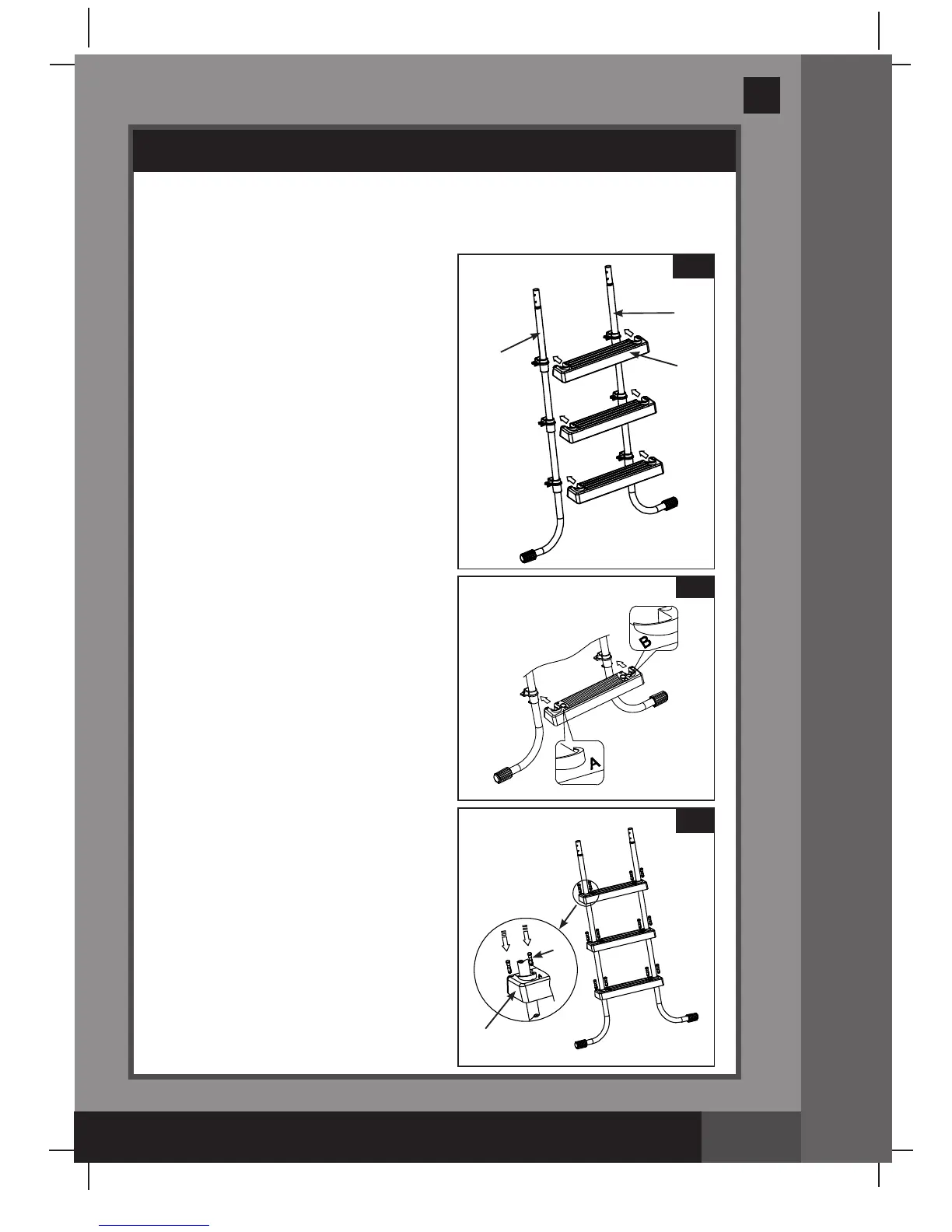

LADDER SETUP
1.1
B
A
TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.
1. STEP INSTALLATION (refer to
figures 1.1 through 1.3):
The pool ladder legs have the step
mounting fixtures installed at the
factory. Slip the step (5) onto the
mounting fixture, matching the
direction of the arrow on the back
of the mounting fixture with the top
of the step. Ensure the back of the
step is flush with the mounting fixture
otherwise the step will be installed
upside-down.
IMPORTANT: Ensure the J-shaped
legs are pointing outwards before
installing the steps. During assembly,
the “A” legs fit into the “A” step
holes, and “B” legs fit into “B”
step holes.
Push the step mounting pins (4) into
the holes securing the step to the
mounting fixture.
IMPORTANT: Make sure all pins are
securely locked.
1.2
A
B
1.3
A
B
7
5
6
4
5
To Next Page
