Intex Ladder - Top Platform Installation; U-Shaped Top Rail Installation

165
IO
SAVE THESE INSTRUCTIONS
Page 10
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
SETUP INSTRUCTIONS
LADDER SETUP (continued)

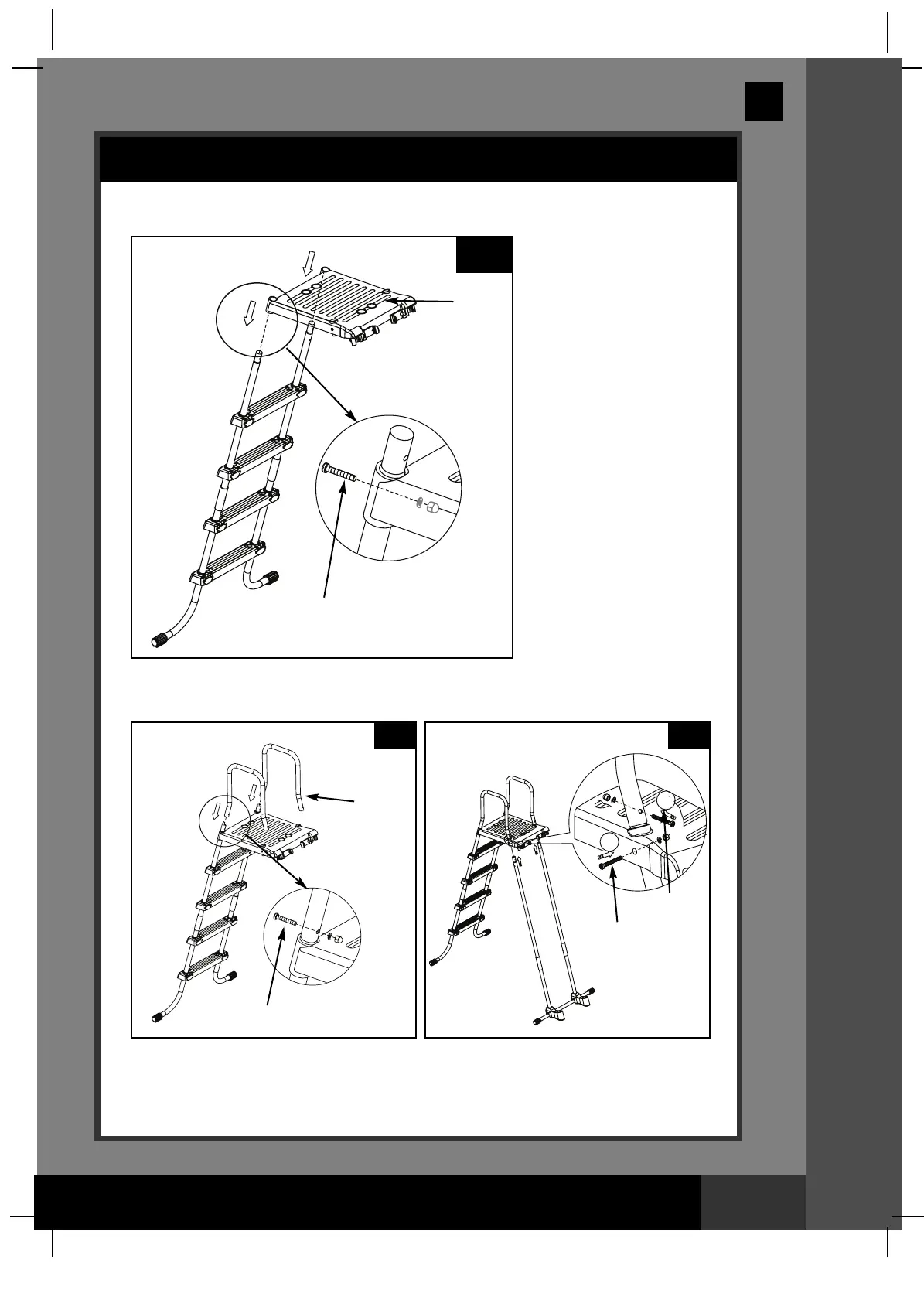

4. TOP PLATFORM INSTALLATION (refer to figure 4):
4
4
2
5. U-SHAPED TOP RAIL INSTALLATION (refer to figure 5.1 through 5.2):
5.1
3
1


5.2
4
3
B1
B1
A1
A1
B1
A1
C
C
IMPORTANT: One side at a time. Do not attach the other side of the ladder
until the U-shaped top rail is installed. Make sure all nuts and bolts are
securely tightened.
