Intronics FT-101 - Page 4

INTRONICS
P/N 170195-000E Rev. 00 4

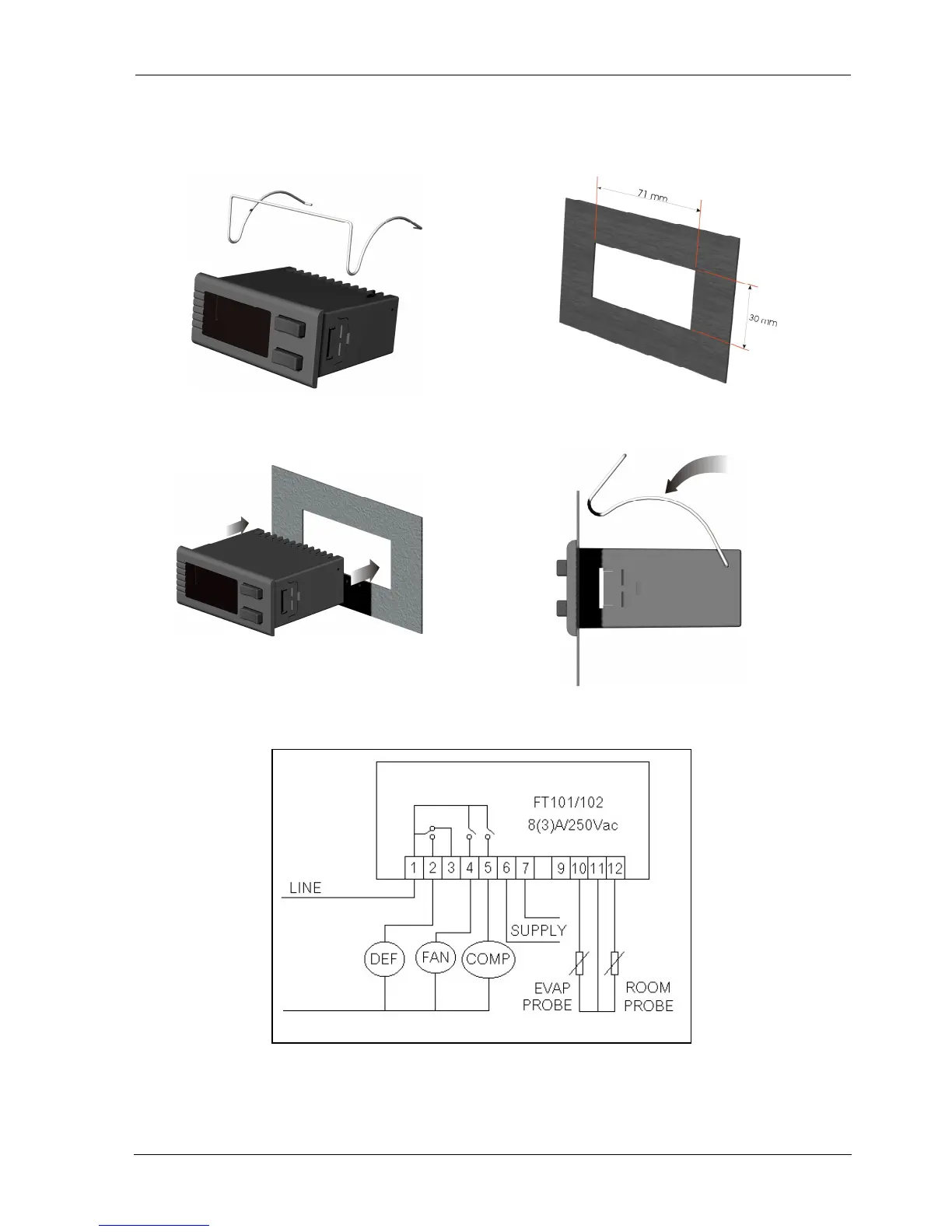

4. INSTALLATION
Take out the spring lock Making the 30X71 mm. hole at the freezer
Insert the thermostat Put the spring back and push until it is locked
Wiring diagram
