InVento 500810 - Preparation; Transmitter and Antenna Setup; Battery Installation

6
1
1
2
1
2
1
2
1
2
POWER CHARGE
POWER CHARGE
POWER CHARGE
POWER CHARGE
POWER CHARGE
POWER CHARGE
L
L
POWER CHARGE
POWER CHARGE
POWER CHARGE

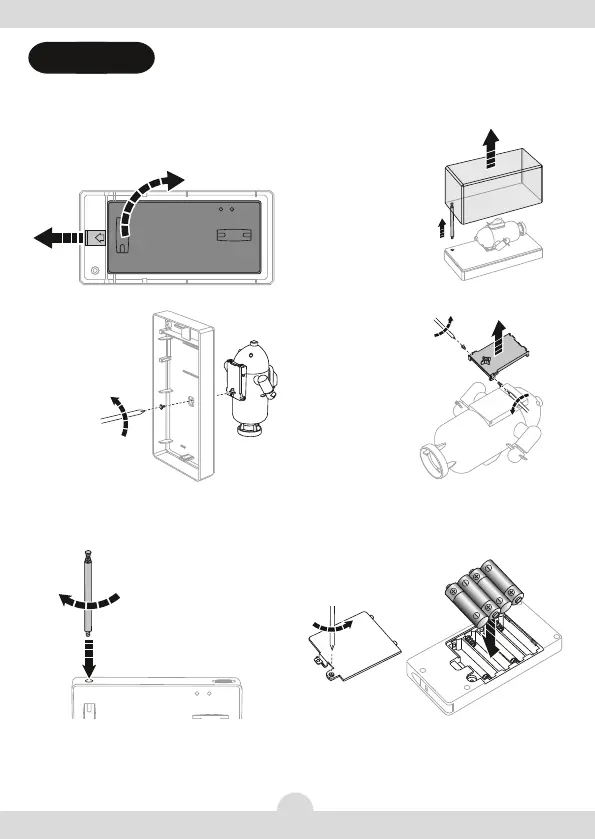

Preparation
1. Push the LOCK towards the direction shown to
release the transmitter (g. 1)
g. 1
g. 2
g. 3
g. 5
g. 6
g. 4
2. Remove the cover and take
out the antenna (g. 2)
3. Remove the screw on
the submarine base as
illustrated (g. 3)
5. Insert and tighten the antenna to
the antenna hole on the transmitter as
illustrated (g. 5)
6. Use a Phillips screwdriver to open the battery
compartment cover. Insert 4 x AA batteries with the
correct polarity and replace the battery
compartment cover (g. 6)
4. Turn the four retaining
screws anticlockwise (g. 4)
