Inverter MPPT Series User Manual

If you find missing parts, please contact the dealer.
A
fter receiving the product, please do not sigh before open box and checking whether the
product deformation or shell cracks or other obvious crash phenomenon, if there is any
damage please refuse to sign, and then contact the dealer.
• Install on a solid surface
• The installation location must be accessible at any time
• The installation location can be removed at any time
• To ensure the optimal working environment, the ambient temperature should be -20°C~ 50°C
• Do not install the charge controller in a direct sunlight, to avoid power loss due to overheating.

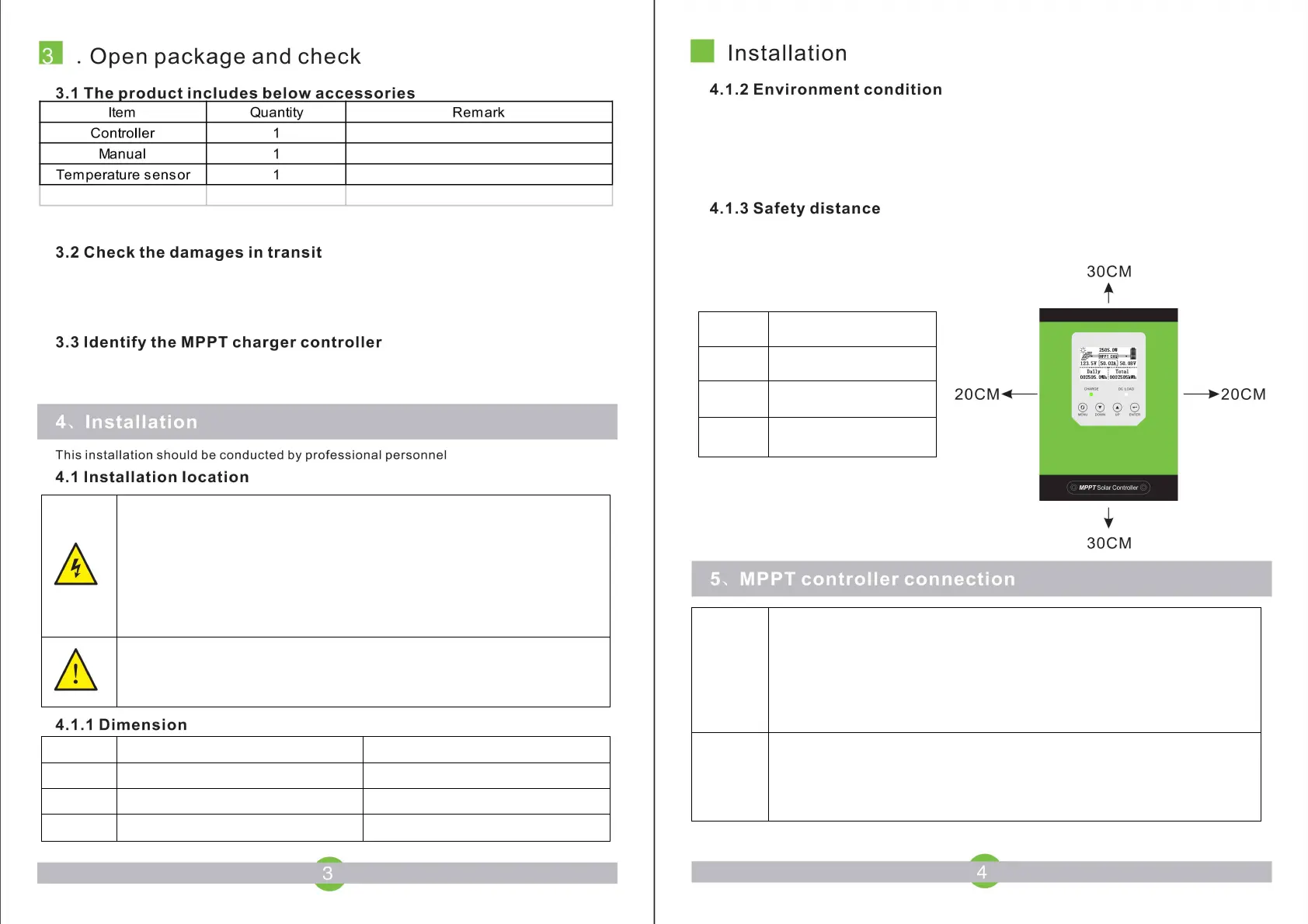

Observe the following safety clearance to ensure that other equipment or objects are not within
this range to ensure adequate cooling space.
There is
a label in the side of the controller, if you found that it is not to match your
purchase, please contact the dealer.
Instruction Safety distance
Side 20CM
High 30CM
Bottom 30CM
Danger:
The charging controller case will become hot during operation
• Do not install on flammable building materials;
• Do not install nearby highly flammable materials;
• Do not install in potentially explosive areas;
• Do not install the charge controller in a place where the sun is exposed directly, to avoid
the loss of overheating.
Warning!
•
Due to built-in thermal storage components, please do not open the shell and touch it
during the operation.
Model
TY-AL series 20A/30A
TY-AL series 40A/50A/60A
Model
TY
-IR series 20A/30A
TY-IR series 40A/50A/60A
S
ize
Danger!
If the high voltage input and operation is not correct of the solar charge controller, it
may lead to life-threatening.
• Disconnect the solar panel array should use a circuit breaker and avoid accidental
activation;
• Disconnect the circuit breaker and make sure it can not be reconnected;
• Make sure for that there is no voltage present in system
Warning!
Over-voltage can damage the system
• Thunderstorms and lightning will increase the risk of damage to external overvoltage
protec
tion areas.
Size
L*W*H 208mm*146mm*76mm
218mm*154mm*65mm
L*W*H 245mm*174mm*76mm
260mm*192mm*80mm
