AKIMIX Wood Stove Reference P619044
Normal output for
Turn the regulator to the
left for usage over a long
period.
Open Closed
ost-combustion air
flow regulator
Open Closed
Secondary air regulator:
Normal output for wood
Turn the regulator to the
left for usage over a long
period.
Lighting + granules position

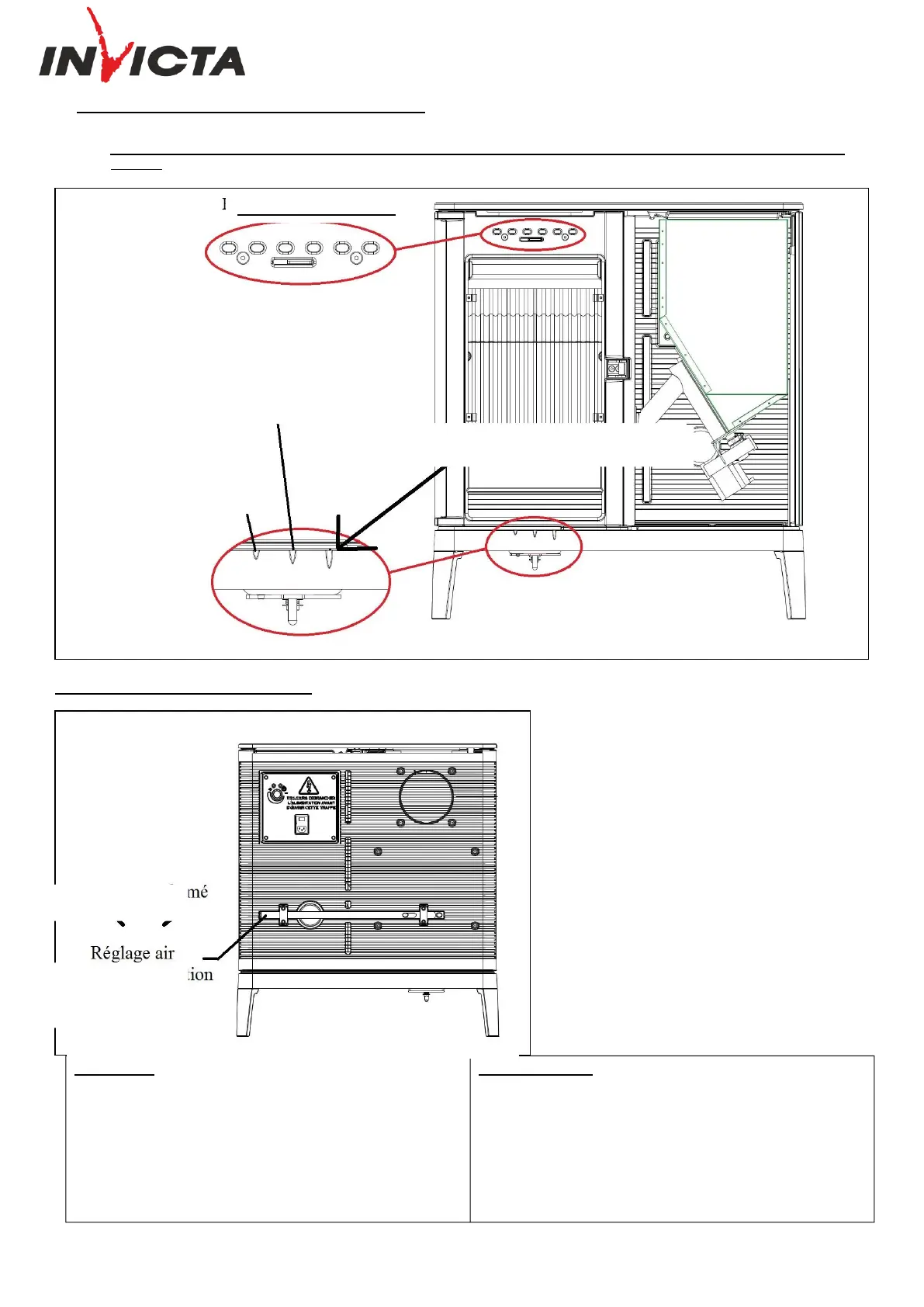

OUTPUT AND SECONDARY AIR REGULATORS
- The output regulator, situated on the front of the appliance, is used to vary output when changing over from one fuel type to
another:
POST-COMBUSTION REGULATOR
P
Using logs: Using granules:
 Output regulator to “normal wood”
 Secondary air regulator “open”
 Post combustion regulator “open”
 Output regulator set to “granules”
(open to maximum, all the way to the right end-
stop)
 Secondary air regulator “closed”
 Post-combustion regulator “closed”
